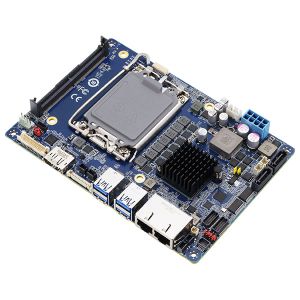

EPIC-RPS9

EPIC Board with 12th/13th Generation Intel® Core™ Processor

As low as US$359.00

Availability: In stock

Inventory: please select an item

SKU

EPIC-RPS9

【Pre-Order】 Lead Time: 8 weeks

12th/13th Generation Intel® Core™ Processor
DDR5 SODIMM 4800 x 2, up to 64 GB
Triple Display: HDMI 2.0 x 1, eDP x 1, VGA x 1
Intel® I226-LM 2.5GbE x 3 (optional), Intel® I219-LM GbE x 1
USB 3.2 Gen 2 x 2 (Rear I/O), USB 2.0 x 2 (Pin Header)
M.2 2280 M-key x 1 (optional), M.2 3052 B-key x 1 , M.2 2230 E-key x 1 , FPC (PCIe3.0[x2] x 1), PCIe4.0[x8] x 1
COM Port x 2, GPIO 8-bit, DC 12V in

Note: To achieve the best performance, it is recommended that you order the CPU Cooler together with the EPIC-RPS9.

Price Drop Notification

Qty:

Details

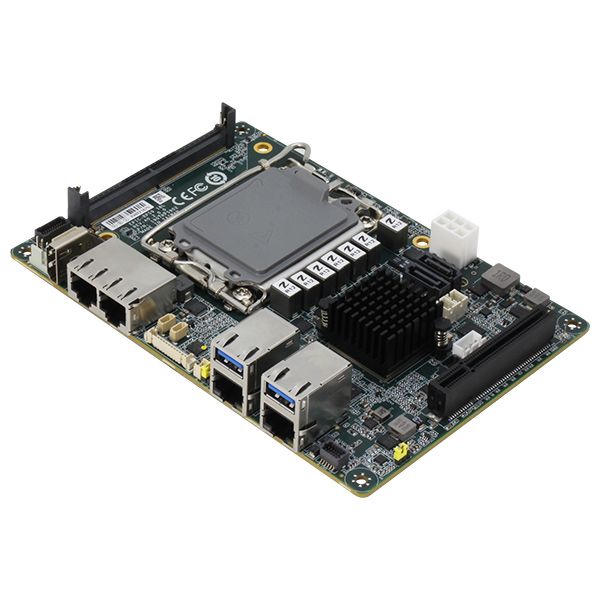

Supporting the latest 13th Gen Intel® Core™ socket-type CPUs and equipped with a specialized full performance design, the EPIC-RPS9 is meticulously designed to transcend its compact 4” form factor to achieve high-performance computing on the smallest possible board. An exceptional choice for industrial applications of any scale, this addition to AAEON’s 4” EPIC range not only boasts robust connectivity for enhanced data acquisition from peripheral devices, but also maintains expansive capabilities for to integrate wireless communication protocols and meet vast storage requirements.

Specification

EPIC-RPS9-A10-0002

SYSTEM
Form Factor	4" EPIC Board
CPU	13th Generation Intel® Core™ Processor (up to 35W/65W) 12th Generation Intel® Core™ Processor (up to 35W/65W)
Chipset	Intel 600 Series Chipset (Q670E)
Memory Type	DDR5 4800 Dual Channel SODIMM x 2, up to 64GB (Non-ECC)
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
SECURITY	TPM 2.0 (Optional)
RTC BATTERY	Lithium Battery 3V/240mA
DIMENSION (L X W)	4.53" x 6.50" (115mm x 165mm)
OS SUPPORT	Windows 10 (64bit) Ubuntu 22.04.2/kernel 5.19.0-32-generic #33
POWER
Power Requirement	+12V (Note: To achieve stable performance, using the power supply unit rated 22A@12V DC output, to meet the potential maximum peak requirement is recommended)
Power Supply	AT/ATX
CONNECTOR	6-Pin Connector
POWER CONSUMPTION	Intel ® Core ™ i9-13900E, DDR5 32GB x2, 7.73A @+12V (Typical) Intel ® Core ™ i9-13900E, DDR5 32GB x2, 21.39A @+12V (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics 770 (i5 SKU and above) Intel® UHD Graphics 730 (i3 SKU) Intel® UHD Graphics 710 (Intel® Celeron® G6900TE SKU)
LVDS/EDP	eDP 1.4 x 1, up to 3840 x 2160
DISPLAY INTERFACE	HDMI 2.0 x 1, up to 3840 x 2160 @60Hz VGA x 1, up to 1920 x 1080
MULTIPLE DISPLAY	Up to 3 Simultaneous Displays
AUDIO
CODEC	Realtek ALC897
AUDIO INTERFACE	Line-In / Line-Out / MIC
SPEAKER	—
EXTERNAL I/O
ETHERNET	Intel® I226, 2.5GbE RJ-45 x 3, Intel® I219, GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 2.0 x 1 up to 3840 x 2160 @60Hz
INTERNAL I/O
USB	USB 2.0 x 2
SERIAL PORT	COM 1 (RS-232/422/485, supports RI only) COM 2 (RS-232/422/485, supports 12V/5V/RI)
VIDEO	eDP 1.4 x 1, up to 3840 x 2160 VGA x 1, up to 1920 x 1080
SATA	SATA 6Gb/s x 2 +5V SATA Power Connector x 2
AUDIO	Audio Header x 1
DIO/GPIO	GPIO 8-bits
SMBUS/I2C	SMBus /I2C (change by BOM, i2C only for Windows 10)
TOUCH	—
FAN	4 Pin Smart Fan
SIM	Nano SIM x 1
FRONT I/O PANEL	Power Button, Reset Button, Power LED, SATA LED, Buzzer
EXPANSION
MINI PCI-E/MSATA	—
M.2	M.2 2280 M-Key x 1 (PCIe 4.0 [x4] x 1, R680E & Q670E support) M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.0) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0)
Others	PCIe 4.0 [x8] Slot x 1 FPC Connector x 1 (PCIe 3.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C) (Note: To achieve the best performance, keeping the EPIC-RPS9 operating with 0.5m/sec airflow when DDR5 SODIMM1 installed on bottom side is recommended)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	353,666
EMC	CE/FCC Class A

EPIC-RPS9-A10-0003

SYSTEM
Form Factor	4" EPIC Board
CPU	13th Generation Intel® Core™ Processor (up to 35W/65W) 12th Generation Intel® Core™ Processor (up to 35W/65W)
Chipset	Intel 600 Series Chipset (H610E)
Memory Type	DDR5 4800 Dual Channel SODIMM x 2, up to 64GB (Non-ECC)
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
SECURITY	TPM 2.0 (Optional)
RTC BATTERY	Lithium Battery 3V/240mA
DIMENSION (L X W)	4.53" x 6.50" (115mm x 165mm)
OS SUPPORT	Windows 10 (64bit) Ubuntu 22.04.2/kernel 5.19.0-32-generic #33
POWER
Power Requirement	+12V (Note: To achieve stable performance, using the power supply unit rated 22A@12V DC output, to meet the potential maximum peak requirement is recommended)
Power Supply	AT/ATX
CONNECTOR	6-Pin Connector
POWER CONSUMPTION	Intel ® Core ™ i9-13900E, DDR5 32GB x2, 7.73A @+12V (Typical) Intel ® Core ™ i9-13900E, DDR5 32GB x2, 21.39A @+12V (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics 770 (i5 SKU and above) Intel® UHD Graphics 730 (i3 SKU) Intel® UHD Graphics 710 (Intel® Celeron® G6900TE SKU)
LVDS/EDP	eDP 1.4 x 1, up to 3840 x 2160
DISPLAY INTERFACE	HDMI 2.0 x 1, up to 3840 x 2160 @60Hz VGA x 1, up to 1920 x 1080
MULTIPLE DISPLAY	Up to 3 Simultaneous Displays
AUDIO
CODEC	Realtek ALC897
AUDIO INTERFACE	Line-In / Line-Out / MIC
SPEAKER	—
EXTERNAL I/O
ETHERNET	Intel® I226, 2.5GbE RJ-45 x 1, Intel® I219, GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 2.0 x 1 up to 3840 x 2160 @60Hz
INTERNAL I/O
USB	USB 2.0 x 2
SERIAL PORT	COM 1 (RS-232/422/485, supports RI only) COM 2 (RS-232/422/485, supports 12V/5V/RI)
VIDEO	eDP 1.4 x 1, up to 3840 x 2160 VGA x 1, up to 1920 x 1080
SATA	SATA 6Gb/s x 2 +5V SATA Power Connector x 2
AUDIO	Audio Header x 1
DIO/GPIO	GPIO 8-bits
SMBUS/I2C	SMBus /I2C (change by BOM, i2C only for Windows 10)
TOUCH	—
FAN	4 Pin Smart Fan
SIM	Nano SIM x 1
FRONT I/O PANEL	Power Button, Reset Button, Power LED, SATA LED, Buzzer
EXPANSION
MINI PCI-E/MSATA	—
M.2	M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.0) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0)
Others	PCIe 4.0 [x8] Slot x 1 FPC Connector x 1 (PCIe 3.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C) (Note: To achieve the best performance, keeping the EPIC-RPS9 operating with 0.5m/sec airflow when DDR5 SODIMM1 installed on bottom side is recommended)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	353,666
EMC	CE/FCC Class A

EPIC-RPS9-A10-0001

SYSTEM
Form Factor	4" EPIC Board
CPU	13th Generation Intel® Core™ Processor (up to 35W/65W) 12th Generation Intel® Core™ Processor (up to 35W/65W)
Chipset	Intel 600 Series Chipset (R680E)
Memory Type	DDR5 4800 Dual Channel SODIMM x 2, up to 64GB (ECC)
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
SECURITY	TPM 2.0 (Optional)
RTC BATTERY	Lithium Battery 3V/240mA
DIMENSION (L X W)	4.53" x 6.50" (115mm x 165mm)
OS SUPPORT	Windows 10 (64bit) Ubuntu 22.04.2/kernel 5.19.0-32-generic #33
POWER
Power Requirement	+12V (Note: To achieve stable performance, using the power supply unit rated 22A@12V DC output, to meet the potential maximum peak requirement is recommended)
Power Supply	AT/ATX
CONNECTOR	6-Pin Connector
POWER CONSUMPTION	Intel ® Core ™ i9-13900E, DDR5 32GB x2, 7.73A @+12V (Typical) Intel ® Core ™ i9-13900E, DDR5 32GB x2, 21.39A @+12V (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics 770 (i5 SKU and above) Intel® UHD Graphics 730 (i3 SKU) Intel® UHD Graphics 710 (Intel® Celeron® G6900TE SKU)
LVDS/EDP	eDP 1.4 x 1, up to 3840 x 2160
DISPLAY INTERFACE	HDMI 2.0 x 1, up to 3840 x 2160 @60Hz VGA x 1, up to 1920 x 1080
MULTIPLE DISPLAY	Up to 3 Simultaneous Displays
AUDIO
CODEC	Realtek ALC897
AUDIO INTERFACE	Line-In / Line-Out / MIC
SPEAKER	—
EXTERNAL I/O
ETHERNET	Intel® I226, 2.5GbE RJ-45 x 3, Intel® I219, GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 2.0 x 1 up to 3840 x 2160 @60Hz
INTERNAL I/O
USB	USB 2.0 x 2
SERIAL PORT	COM 1 (RS-232/422/485, supports RI only) COM 2 (RS-232/422/485, supports 12V/5V/RI)
VIDEO	eDP 1.4 x 1, up to 3840 x 2160 VGA x 1, up to 1920 x 1080
SATA	SATA 6Gb/s x 2 +5V SATA Power Connector x 2
AUDIO	Audio Header x 1
DIO/GPIO	GPIO 8-bits
SMBUS/I2C	SMBus /I2C (change by BOM, i2C only for Windows 10)
TOUCH	—
FAN	4 Pin Smart Fan
SIM	Nano SIM x 1
FRONT PANEL	Power Button, Reset Button, Power LED, SATA LED, Buzzer
OTHERS	TCC x 1
EXPANSION
MINI PCI-E/MSATA	—
M.2	M.2 2280 M-Key x 1 (PCIe 4.0 [x4] x 1, R680E & Q670E support) M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.0) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0)
Others	PCIe 4.0 [x8] Slot x 1 FPC Connector x 1 (PCIe 3.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C) (Note: To achieve the best performance, keeping the EPIC-RPS9 operating with 0.5m/sec airflow when DDR5 SODIMM1 installed on bottom side is recommended)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	353,666
EMC	CE/FCC Class A

Packing List

EPIC-RPS9 x 1
CPU Cooler Bracket x 2
Screw kit x 1

Optional Accessories
ITEM	DESCRIPTION (*Cooler or heatsink is not included in the packing list.)
CPU Cooler	Please click HERE if you'd like to add the cooler to your order.
