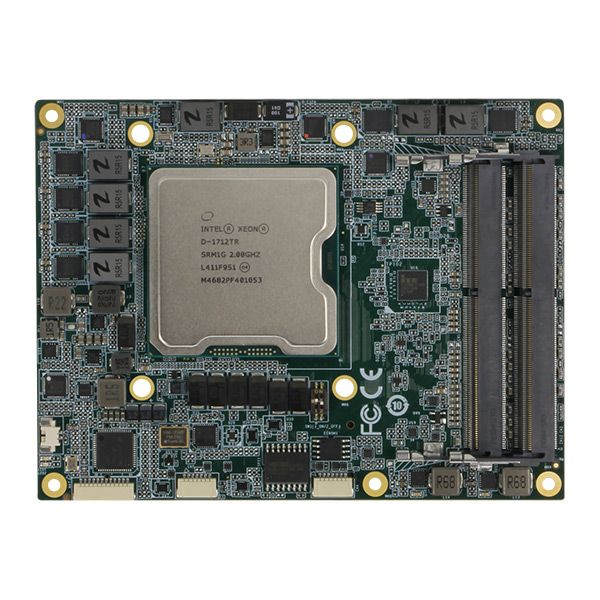

COM-ICDB7

COM Express Type 7 with Intel® Xeon® D Processors

As low as US$857.00

Availability: In stock

Inventory: please select an item

SKU

COM-ICDB7

DDR4 2400MHz SODIMM x 4, up to 128GB
USB 2.0 x 4, USB 3.2 Gen 1 x 4
PCIe [x2] x 8, PEG [x16] x 1
Intel® I210-IT GbE x 1, 10GbE x 4
COM Express Type 7, 4.92" x 3.75" (125mm x 95mm)

Note: To achieve the best performance, it is recommended that you order the Cooler/ Heat-spreader together with the COM-ICDB7.

Price Drop Notification

Qty:

Details

The COM-ICDB7 is AAEON's newest addition to its COM Express Module range, providing a greater depth of application potential among an already versatile product line. Powered by the 3rd Generation Intel® Xeon® D Processor platform (formerly Ice Lake-D), the COM-ICDB7's small size, server-grade CPU, and flexibility in deployment make it the intelligent choice for more cerebral applications; such as drone fleet control, biomedical science, and data analytics applications.

Note: The features of different SKUs may vary. Please check the product specifications before making your purchase.

Specification

COM-ICDB7-A12-0006

*【Pre-Order】Lead time: 6-8 weeks

SYSTEM
FORM FACTOR	COM Express Basic Size, Type 7
CPU	Intel® Xeon® D-1848TER (10C/20T, 2.00 GHz, 57W)
CHIPSET	Integrated with Intel® SoC
MEMORY	DDR4 2400MHz SODIMM x 4, Dual Channel, up to 128GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
Dimension	4.92" x 3.75" (125mm x 95mm)
Security	TPM 2.0
POWER
POWER REQUIREMENT	+12V and +5VSB for ATX, +12V and +5V for AT
POWER SUPPLY TYPE	AT/ATX (default)
POWER CONSUMPTION (TYPICAL)	Intel® Xeon® D-1746TER, 7.75A @+12V
I/O
Ethernet	Intel® I210-IT GbE x 1 10GbE x 4, support x557(default) or SFP+
USB Port	USB 2.0 x 4, USB 3.2 Gen 1 x 4
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA III x 2
Expansion	PEG 4.0 [x16] x 1 PCIe 3.0 [x2] x 8 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1 (Windows® 10 Ready), SMBus x 1
ENVIRONMENT
Operating Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 (64-bit) Linux Ubuntu 20.04/Kernel 5.4
Weight	0.44 lb. (0.20Kg)

COM-ICDB7-A12-0005

SYSTEM
FORM FACTOR	COM Express Basic Size, Type 7
CPU	Intel® Xeon® D-1712TR (4C/4T, 2.00 GHz, 40W)
CHIPSET	Integrated with Intel® SoC
MEMORY	DDR4 2400MHz SODIMM x 4, Dual Channel, up to 128GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
Dimension	4.92" x 3.75" (125mm x 95mm)
Security	TPM 2.0
POWER
POWER REQUIREMENT	+12V and +5VSB for ATX, +12V and +5V for AT
POWER SUPPLY TYPE	AT/ATX (default)
POWER CONSUMPTION (TYPICAL)	Intel® Xeon® D-1746TER, 7.75A @+12V
I/O
Ethernet	Intel® I210-IT GbE x 1 10GbE x 4, support x557(default) or SFP+
USB Port	USB 2.0 x 4, USB 3.2 Gen 1 x 4
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA III x 2
Expansion	PEG 4.0 [x16] x 1 PCIe 3.0 [x2] x 8 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1 (Windows® 10 Ready), SMBus x 1
ENVIRONMENT
Operating Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 (64-bit) Linux Ubuntu 20.04/Kernel 5.4
Weight	0.44 lb. (0.20Kg)

Packing List

COM-ICDB7 x 1

Optional Accessories
Item	DESCRIPTION
Cooler	Cooler or heat spreader is not included in the packing list. Please click HERE if you'd like to add the cooler to your order.
Heat Spreader	Please click HERE if you'd like to add the heat spreader to your order.
Carrier Board	Please click HERE if you'd like to add the carrier board to your order.
