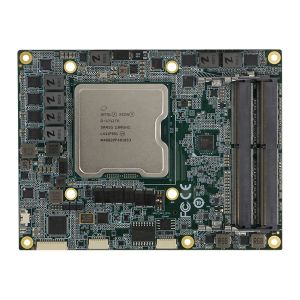

HPC-RPSC
COM HPC Client Size C with 12th/13th Gen Intel® Core™ Processors
- DDR5 4800MHz SODIMM x 2, up to 64GB
- USB 2.0 x 8, USB 3.2 Gen 2 x 5
- PCIe [x1] x 8, PCIe [x4] x 3, PEG [x16] x 1
- Intel® I226-LM 2.5GbE x 2
- M.2 2280 M-Key x 1
- COM HPC Client Type, Size C, 6.30" x 4.72" (160mm x 120mm)
Note: To achieve the best performance, it is recommended that you order the Cooler together with the HPC-RPSC.
COM HPC Client Size C with 12th/13th Gen Intel® Core™ Processors
| Sub Title | COM HPC Client Size C with 12th/13th Gen Intel® Core™ Processors | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Spec |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Write Your Own Review
SYSTEM
FORM FACTOR
COM-HPC R1.0 Client Size C
CPU SUPPORT
13th Generation Intel® Core™ Processors:
Intel® Core™ i9-13900E (24C/32T, 1.80 GHz, E-core 1.30 GHz, 65W)
Intel® Core™ i9-13900 (24C/32T, 2.00 GHz, E-core 1.50 GHz, 65W)
Intel® Core™ i7-13700E (16C/24T, 1.90 GHz, E-core 1.30 GHz, 65W)
Intel® Core™ i5-13500E (14C/20T, 2.40 GHz, E-core 1.50 GHz, 65W)
12th Generation Intel® Core™ Processors:
Intel® Core™ i9-12900E (16C/24T, 2.30 GHz, E-core 1.70 GHz, 65W)
Intel® Core™ i7-12700E (12C/20T, 2.10 GHz, E-core 1.60 GHz, 65W)
Intel® Core™ i7-12700 (12C/20T, 2.10 GHz, E-core 1.60 GHz, 65W)
CHIPSET
Intel® R680E
MEMORY TYPE
DDR5 4800MHz SODIMM x 2, up to 64GB (ECC)
ONBOARD STORAGE
—
BIOS
AMI BIOS (UEFI)
WAKE ON LAN
Yes
WATCHDOG TIMER
255 Levels
DIMENSION (L X W)
6.30" x 4.72" (160mm x 120mm)
SECURITY
TPM 2.0
POWER
POWER REQUIREMENT
+12V and +5VSB for ATX, +12V for AT
POWER TYPE
AT/ATX
POWER CONSUMPTION (TYPICAL)
Intel® Core™ i9-13900E, 7.13A @+12V
DISPLAY
GRAPHICS CONTROLLER
Intel®UHD Graphics 770
VIDEO OUTPUT
4 Simultaneous Displays:
eDP x 1, up to 3840 x 2160 @60Hz
DDI x 3, up to 3840 x 2160 @144Hz
I/O
ETHERNET
2.5GbE: Intel® I226LM x 2
AUDIO
—
USB PORT
USB 2.0 x 8, USB 3.2 Gen 2 x 8
SERIAL PORT
4-Wire UART x 2 (Tx/Rx)
HDD INTERFACE
SATA III x 2
EXPANSION
PEG 5.0 [x16] x 1
PCIe 4.0 [x4] x 3
PCIe 3.0 [x1] x 8
eSPI x 1
LPC x 1
GPIO
12-bit
SMBUS/I2C
I2C x 2, SMBus x 1
ENVIRONMENT
OPERATING TEMPERATURE
32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE
-40°F ~ 185°F (-40°C ~ 80°C)
OPERATING HUMIDITY
0% ~ 90% relative humidity, non-condensing
EMC
CE/FCC Class A
OS SUPPORT
Windows® 10 (64-bit)
Linux Ubuntu 20.04.1/Kernel 5.15
WEIGHT
0.66 lb. (0.30Kg)
| SYSTEM | |
| FORM FACTOR | COM-HPC R1.0 Client Size C |
| CPU SUPPORT | 13th Generation Intel® Core™ Processors: Intel® Core™ i9-13900E (24C/32T, 1.80 GHz, E-core 1.30 GHz, 65W) Intel® Core™ i9-13900 (24C/32T, 2.00 GHz, E-core 1.50 GHz, 65W) Intel® Core™ i7-13700E (16C/24T, 1.90 GHz, E-core 1.30 GHz, 65W) Intel® Core™ i5-13500E (14C/20T, 2.40 GHz, E-core 1.50 GHz, 65W) 12th Generation Intel® Core™ Processors: Intel® Core™ i9-12900E (16C/24T, 2.30 GHz, E-core 1.70 GHz, 65W) Intel® Core™ i7-12700E (12C/20T, 2.10 GHz, E-core 1.60 GHz, 65W) Intel® Core™ i7-12700 (12C/20T, 2.10 GHz, E-core 1.60 GHz, 65W) |
| CHIPSET | Intel® R680E |
| MEMORY TYPE | DDR5 4800MHz SODIMM x 2, up to 64GB (ECC) |
| ONBOARD STORAGE | — |
| BIOS | AMI BIOS (UEFI) |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| DIMENSION (L X W) | 6.30" x 4.72" (160mm x 120mm) |
| SECURITY | TPM 2.0 |
| POWER | |
| POWER REQUIREMENT | +12V and +5VSB for ATX, +12V for AT |
| POWER TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® Core™ i9-13900E, 7.13A @+12V |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel®UHD Graphics 770 |
| VIDEO OUTPUT | 4 Simultaneous Displays: eDP x 1, up to 3840 x 2160 @60Hz DDI x 3, up to 3840 x 2160 @144Hz |
| I/O | |
| ETHERNET | 2.5GbE: Intel® I226LM x 2 |
| AUDIO | — |
| USB PORT | USB 2.0 x 8, USB 3.2 Gen 2 x 8 |
| SERIAL PORT | 4-Wire UART x 2 (Tx/Rx) |
| HDD INTERFACE | SATA III x 2 |
| EXPANSION | PEG 5.0 [x16] x 1 PCIe 4.0 [x4] x 3 PCIe 3.0 [x1] x 8 eSPI x 1 LPC x 1 |
| GPIO | 12-bit |
| SMBUS/I2C | I2C x 2, SMBus x 1 |
| ENVIRONMENT | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| EMC | CE/FCC Class A |
| OS SUPPORT | Windows® 10 (64-bit) Linux Ubuntu 20.04.1/Kernel 5.15 |
| WEIGHT | 0.66 lb. (0.30Kg) |
- HPC-RPSC
- HPC-RPSC
【Optional Accessories】
| Item | DESCRIPTION |
|
Cooler |
Cooler or heatsink is not included in the packing list. Please click HERE if you'd like to add the cooler to your order. |
