UP Xtreme 7100
UP Xtreme 7100 Developer Board with Intel® Processor N-series Processor
As low as
US$445.31
Availability:
In stock
Inventory: please select an item
SKU
UP Xtreme 7100

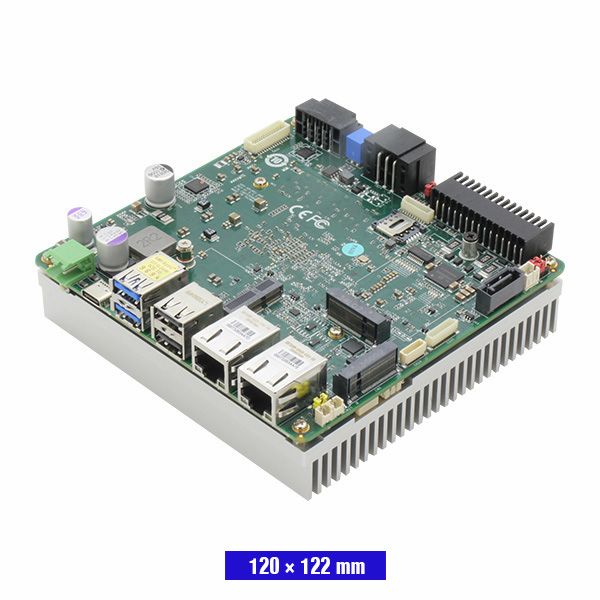

UP Xtreme 7100 Developer Board (UPX-ASLN) is AAEON's newest all-in-one robotics solution, meticulously designed for Autonomous Mobile Robot (AMR), Automated Guided Vehicle (AGV), and industrial automation applications. A comprehensive set of communication interfaces are housed in a compact 120.35mm x 122.5mm board fortified with rugged features to grant longevity and reliability. All of this is built on the low-power, cost-efficient Intel® Processor N-series CPU platform, possessing the attributes necessary to power advanced robotic solutions without the high costs or power consumption typically associated with executing such complex tasks. If you are interested in a system-level product to start your AGV project, please check out the UP Xtreme 7100 Edge.
Application:
| ◆ Autonomous Mobile Robot (AMR) |
| ◆ Automated Guided Vehicle (AGV) |
| ◆ Industrial Automation |
| ◆ Programmable Logic Controllers (PLCs) |
UPX-ASLN97-A10-0864
| SYSTEM | |
| Processor | Intel® Processor N97 |
| Graphics | Intel® UHD Graphics Gen 12 |
| Memory | 8GB LPDDR5 |
| Storage | 64GB onboard eMMC M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]) SATA 6Gb/s x 1 |
| I/O | RS-232/422/485 x 1 (Terminal Block) (Default RS232) 30pin board-to-board Connector x 1 UART x 1 (via 10 Pin Header x 1) |
| Camera | — |
| USB | USB 2.0 (Type A) x 2 USB 3.2 Gen 2 (Type A) x 2 USB 3.2 Gen 2 (Type C) x 1 (Supports DP alt mode) |
| Expansion | M.2 3052 B-Key x 1 with Nano SIM slot (USB 3.0) M.2 2230 E-Key x 1 (USB 2.0/PCIe) M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]) 24V 8-in/8-out Digital I/O x 1 via Terminal Block (Output current: 500mA per channel) 6 pin GPIO x 1 via Terminal Block 6 pin 2-channel CAN 2.0B x 1 via Terminal Block (10 ~ 1000 kbps) DIP Switch for CANBus function x 1 CAN LED indicator x 2 SATA 6Gb/s x 1 |
| Display Interface | DP 1.4a x 1 (via USB Type-C) eDP 1.3 x 1 |
| Ethernet | 2.5GbE x 2 (Intel® I226-IT) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Ubuntu 22.04 LTS (kernel 5.15 and kernel 5.19) |
| Power Requirement | |
| Power | 9-36V |
| Power Supply Type | AT/ATX (AT as default) |
| Power Consumption (Typical) | 52W~55W |
| Mechanical | |
| Dimension | 4.74” x 4.82” (120.35mm x 122.5mm) |
| Net Weight | 1.11.lb (0.5kg) |
| Gross Weight | 1.76 lb (0.8kg) |
| Environment | |
| Operating Temperature | With Heatsink: -4°F ~ 158°F (0°C ~ 60°C)/ 0.5m/s airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 421,998 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
UPX-ASLNI3-A10-1664
| SYSTEM | |
| Processor | Intel® Core™ i3-N305 |
| Graphics | Intel® UHD Graphics Gen 12 |
| Memory | 16GB LPDDR5 |
| Storage | 64GB onboard eMMC M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]) SATA 6Gb/s x 1 |
| I/O | RS-232/422/485 x 1 (Terminal Block) (Default RS232) 30pin board-to-board Connector x 1 UART x 1 (via 10 Pin Header x 1) |
| Camera | — |
| USB | USB 2.0 (Type A) x 2 USB 3.2 Gen 2 (Type A) x 2 USB 3.2 Gen 2 (Type C) x 1 (Supports DP alt mode) |
| Expansion | M.2 3052 B-Key x 1 with Nano SIM slot (USB 3.0) M.2 2230 E-Key x 1 (USB 2.0/PCIe) M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]) 24V 8-in/8-out Digital I/O x 1 via Terminal Block (Output current: 500mA per channel) 6 pin GPIO x 1 via Terminal Block 6 pin 2-channel CAN 2.0B x 1 via Terminal Block (10 ~ 1000 kbps) DIP Switch for CANBus function x 1 CAN LED indicator x 2 SATA 6Gb/s x 1 |
| Display Interface | DP 1.4a x 1 (via USB Type-C) eDP 1.3 x 1 |
| Ethernet | 2.5GbE x 2 (Intel® I226-IT) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Ubuntu 22.04 LTS (kernel 5.15 and kernel 5.19) |
| Power Requirement | |
| Power | 9-36V |
| Power Supply Type | AT/ATX (AT as default) |
| Power Consumption (Typical) | 52W~55W |
| Mechanical | |
| Dimension | 4.74” x 4.82” (120.35mm x 122.5mm) |
| Net Weight | 1.11.lb (0.5kg) |
| Gross Weight | 1.76 lb (0.8kg) |
| Environment | |
| Operating Temperature | With Heatsink: -4°F ~ 158°F (0°C ~ 60°C)/ 0.5m/s airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 421,998 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
- UPX-ASL01 with heatsink
- DC in Phoenix Connector x 1
- RS232/422/485 Terminal Block x 1
- DIO/GPIO Terminal Block x 1
- CAN Terminal Block x 2
- Stud x 4
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US Type - Europe Type - Japan Type - UK Type |
