EPIC-RPS7

EPIC Board with 12th/13th/14th Generation Intel® Core™ Processor
As low as US$287.00
Availability: In stock
Inventory: please select an item
SKU

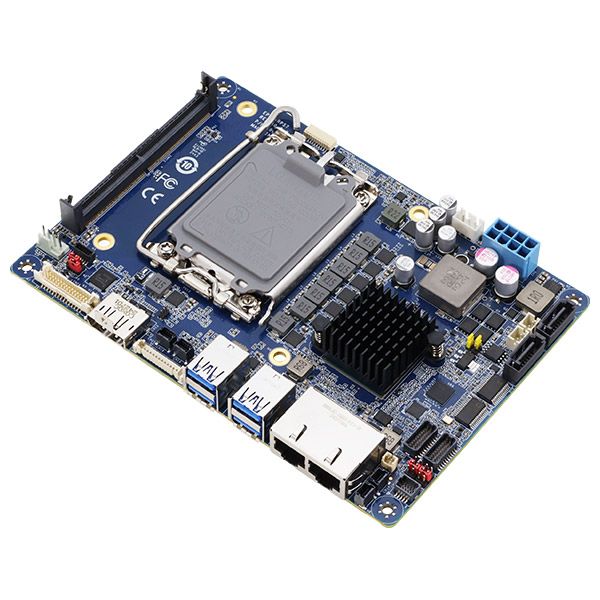

EPIC-RPS7

  • 12th/13th/14th Gen Intel® Core™ Processors
  • DDR5 SODIMM 4800/5200 MT/s x 2, up to 64 GB
  • Triple Display: DP x 1, VGA x 1, LVDS x 1 (Optional)
  • 2.5GbE x 1, GbE x 1
  • USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 2
  • M.2 2280 M-Key x 1, M.2 E-Key 2230 x 1, Mini Card x 1
  • COM Port x 4 , GPIO 8-bit , TPM 2.0 , DC 12Vin or DC 19Vin ~ 24Vin

Note: To achieve the best performance, it is recommended that you order the CPU Cooler together with the EPIC-RPS7.

From cost-sensitive industrial control to AI-accelerated factory automation, AAEON's 4" EPIC duo powered by 12th, 13th, and 14th Generation Intel® Core™ Processors have what's needed. The world's smallest boards capable of supporting 65W socket type CPUs with Intel's performance hybrid architecture, AAEON's newest EPIC duo are paired to offer the quality and performance of a Mini-ITX in a much smaller form factor, making it easy to deploy space-constrained industrial applications.

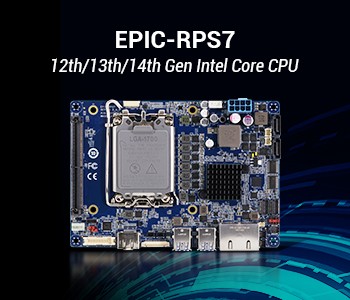

EPIC-RPS7 for Flexible Integration

A cost-effective, future-proof industrial automation platform that doesn't sacrifice performance, the EPIC-RPS7 brings a choice of 12th, 13th, or 14th Gen Intel Core CPU support to industrial automation setups. Doubling the I/O options of its predecessors, the EPIC-RPS7 offers four serial and eight USB interfaces, as well as an 8-bit GPIO, making it the economical 4" board for cost-sensitive industrial control, PLC automation, remote monitoring applications. Moreover, a wide 19V to 24V power input range, SMBus, and LVDS display connector allow for painless legacy equipment integration.

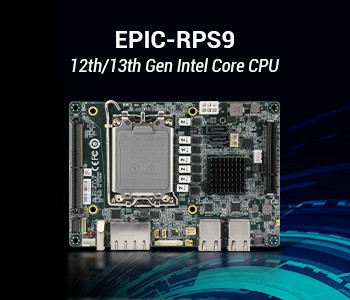

EPIC-RPS9 for Expansive Performance

The EPIC-RPS9 harnesses the 12th and 13th Gen Intel Core platforms across multiple chipsets for high performance industrial computing in the AI era. Featuring a full-function I/O including four LAN with Intel® Time Coordinated Computing and scalable expansion for NVMe storage, Wi-Fi, 5G, AI accelerator modules, and graphic capture cards, the EPIC-RPS9 contains all of the tools to help system integrators develop cutting-edge applications capable of elevating what's possible in AI-driven automation, edge computing, and industrial networking.



EPIC-RPS7-A10-0002
System
Form Factor 4" EPIC Board
CPU 14th Generation Intel® Core™ Processor (up to 35W/65W)
13th Generation Intel® Core™ Processor (up to 35W/65W)
12th Generation Intel® Core™ Processor (up to 35W/65W)
Chipset Intel® H610E Chipset
Memory Type DDR5 4800/5200, Dual-Channel SODIMM x 2, up to 64GB (DDR Speed dependent on CPU SKU)
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security TPM 2.0
RTC Battery Lithium Battery 3V/240mA
Dimension 4.53" x 6.50" (115mm x 165mm)
OS Support Windows 10 (64bit)
Ubuntu 22.04.2/kernel 5.19.0
Power
Power Requirement DC 12Vin
(Note: For stable performance, it is recommended to use a power supply unit rated at 22A @12V DC output to accommodate potential maximum peak power requirements.)
Power Supply Type AT/ATX
Connector 8-Pin Connector
Power Consumption Intel® Core ™ i9-13900E, DDR5 32GB x2, 7.73A @+12V (Typical)
Intel® Core ™ i9-13900E, DDR5 32GB x2, 21.39A @+12V (Max)
Display
Controller Intel® UHD Graphics 770 (i5 SKU and above)
Intel® UHD Graphics 730 (i3 SKU)
Intel® UHD Graphics 710 (Intel® Celeron® G6900TE SKU)
LVDS/EDP Dual Channel 18/24bit LVDS x 1
Display Interface DP 1.2 x 1, up to 3840 x 2160 @60Hz
VGA x 1, up to 1920 x 1080
Multiple Display Up to 3 Simultaneous Displays
External I/O
Ethernet Intel® Ethernet Controller I226, 2.5GbE RJ-45 x 1
Intel® Ethernet Connection I219, GbE RJ-45 x 1
USB USB 3.2 Gen 2 (Type-A) x 2
USB3.2 Gen 1 (Type-A) x 2
Video DP 1.2 x 1
Internal I/O
USB USB2.0 x 4 (Pin Header)
Serial Port RS-232/422/285 x 2
RS-232 x 2 (Pin Header)
Video VGA x 1, LVDS x 1
SATA SATA 6Gb/s x 2
+5V SATA Power Connector x 2
DIO/GPIO 8 bit
SMBUS/I2C SMBus/I2C (change by BOM, I2C only for Windows 10)
Fan 4 Pin Smart Fan
Front Panel Power Button, Reset Button, Power LED, SATA LED, Buzzer
Expansion
Mini PCI-E/mSATA Full-size mSATA/Mini Card (Default: Mini PCIe, SATA configuration subject to BOM change)
M.2 M.2 2280 M-Key x 1 (PCIe 3.0 [x4])
M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0)
Environment & Certification
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
(Note: To achieve the best performance, keeping the EPIC-RPS7 operating with 0.5m/sec airflow when DDR5 SODIMM1 installed on bottom side is recommended)
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
MTBF (Hours) 353,666
EMC CE/FCC Class A
EPIC-RPS7-A10-0001
System
Form Factor 4" EPIC Board
CPU 14th Generation Intel® Core™ Processor (up to 35W/65W)
13th Generation Intel® Core™ Processor (up to 35W/65W)
12th Generation Intel® Core™ Processor (up to 35W/65W)
Chipset Intel® H610E Chipset
Memory Type DDR5 4800/5200, Dual-Channel SODIMM x 2, up to 64GB (DDR Speed dependent on CPU SKU)
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security TPM 2.0
RTC Battery Lithium Battery 3V/240mA
Dimension 4.53" x 6.50" (115mm x 165mm)
OS Support Windows 10 (64bit)
Ubuntu 22.04.2/kernel 5.19.0
Power
Power Requirement DC 19Vin ~ 24Vin
(Note: For stable performance, it is recommended to use a power supply unit rated at 22A @12V DC output to accommodate potential maximum peak power requirements.)
Power Supply Type AT/ATX
Connector 8-Pin Connector
Power Consumption Intel® Core ™ i9-13900E, DDR5 32GB x2, 7.73A @+12V (Typical)
Intel® Core ™ i9-13900E, DDR5 32GB x2, 21.39A @+12V (Max)
Display
Controller Intel® UHD Graphics 770 (i5 SKU and above)
Intel® UHD Graphics 730 (i3 SKU)
Intel® UHD Graphics 710 (Intel® Celeron® G6900TE SKU)
LVDS/eDP Dual Channel 18/24bit LVDS x 1 (Optional)
Display Interface DP 1.2 x 1, up to 3840 x 2160 @60Hz
VGA x 1, up to 1920 x 1080
Multiple Display Up to 3 Simultaneous Displays
External I/O
Ethernet Intel® Ethernet Controller I226, 2.5GbE RJ-45 x 1
Intel® Ethernet Connection I219, GbE RJ-45 x 1
USB USB 3.2 Gen 2 (Type-A) x 2
USB3.2 Gen 1 (Type-A) x 2
Video DP 1.2 x 1
Internal I/O
USB USB2.0 x 4 (Pin Header)
Serial Port RS-232/422/285 x 2
RS-232 x 2 (Pin Header)
Video VGA x 1, LVDS x 1 (Optional)
SATA SATA 6Gb/s x 2
+5V SATA Power Connector x 2
DIO/GPIO 8 bit
SMBUS/I2C SMBus/I2C (change by BOM, I2C only for Windows 10)
Fan 4 Pin Smart Fan
Front Panel Power Button, Reset Button, Power LED, SATA LED, Buzzer
Expansion
Mini PCI-E/mSATA Full-size mSATA/Mini Card (Default: Mini PCIe, SATA configuration subject to BOM change)
M.2 M.2 2280 M-Key x 1 (PCIe 3.0 [x4])
M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0)
Environment & Certification
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
(Note: To achieve the best performance, keeping the EPIC-RPS7 operating with 0.5m/sec airflow when DDR5 SODIMM1 installed on bottom side is recommended)
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
MTBF (Hours) 353,666
EMC CE/FCC Class A
  • EPIC-RPS7 x 1
  • CPU Cooler Bracket x 2
  • Screw kit x 1



Optional Accessories
ITEM DESCRIPTION (*Cooler or heatsink is not included in the packing list.)

CPU Cooler

Please click HERE if you'd like to add the cooler to your order.

Cable

Please click below link if you'd like to add the cable to your order.
SATA Power Cable
Dual COM cable
USB 2.0 Cable
