COM-ASLC6

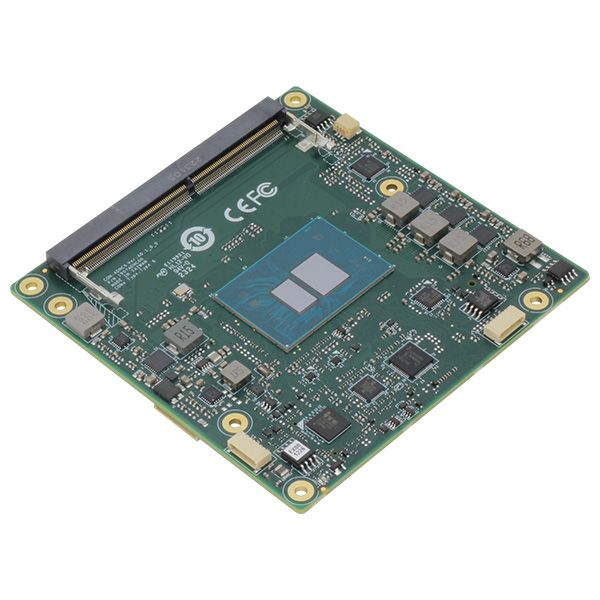

COM Express Type 6 Compact Size with Intel Atom® x7835RE/x7433RE Processors
As low as
US$293.00
Availability:
In stock
Inventory: please select an item
SKU
COM-ASLC6
COM Express Type 6 Compact Size with Intel Atom® x7835RE/x7433RE Processors
COM-ASLC6W2-A10-0001
| System | |
| Form Factor | COM Express Type 6, Compact Size |
| CPU | Intel® Atom® x7835RE (8C, up to 3.6 GHz, 12W) |
| Chipset | Integrated with Intel® SoC |
| Memory | DDR5 4800MHz Single Channel , SODIMM x1, up to 16GB |
| BIOS | AMI BIOS (UEFI) |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Dimension | 3.74" x 3.74" (95mm x 95mm) |
| Security | TPM 2.0 |
| Power | |
| Power Requirement | +12V and +5VSB for ATX, +12V for AT |
| Power Type | AT (default)/ATX, switch by BIOS |
| Power Consumption (Typical) | Intel Atom® x7835RE, 1.94A@+12V |
| Display | |
| Graphics Controller | Intel® UHD Graphics |
| Video Output | 3 Displays: 18/24-bit Single/Dual-Channel LVDS/eDP x 1, up to 1920 x 1080/ 3840 x 2160 DP x 2, up to 3840 x 2160 |
| I/O | |
| Ethernet | Intel® Ethernet Controller I226-IT 2.5GbE x 1 |
| Audio | High Definition Audio Interface |
| USB Port | USB 2.0 x 8, USB 3.2 Gen 2 x 2 |
| Serial Port | 2-Wire UART x 2 (Tx/Rx) |
| HDD Interface | SATA 6Gb/s x 2 |
| Expansion | PCIe [x1] x 4 or [x2] x 2, LPC, WDT, HWM |
| GPIO | 8-bit |
| SMBus/I2C | I2C x 1, SMBus x 1 |
| Environment | |
| Operating Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| EMC | CE/FCC Class A |
| OS Support | Windows® 11 (64-bit) Linux Ubuntu 22.04.02/Kernel 5.19 |
| Weight | 0.26 lb. (0.12Kg) |
COM-ASLC6W2-A10-0002
| System | |
| Form Factor | COM Express Type 6, Compact Size |
| CPU | Intel Atom® x7433RE (4C, up to 3.4 GHz, 9W) |
| Chipset | Integrated with Intel® SoC |
| Memory | DDR5 4800MHz Single Channel , SODIMM x1, up to 16GB |
| BIOS | AMI BIOS (UEFI) |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Dimension | 3.74" x 3.74" (95mm x 95mm) |
| Security | TPM 2.0 |
| Power | |
| Power Requirement | +12V and +5VSB for ATX, +12V for AT |
| Power Type | AT (default)/ATX, switch by BIOS |
| Power Consumption (Typical) | Intel Atom® x7835RE, 1.94A@+12V |
| Display | |
| Graphics Controller | Intel® UHD Graphics |
| Video Output | 3 Displays: 18/24-bit Single/Dual-Channel LVDS/eDP x 1, up to 1920 x 1080/ 3840 x 2160 DP x 2, up to 3840 x 2160 |
| I/O | |
| Ethernet | Intel® Ethernet Controller I226-IT 2.5GbE x 1 |
| Audio | High Definition Audio Interface |
| USB Port | USB 2.0 x 8, USB 3.2 Gen 2 x 2 |
| Serial Port | 2-Wire UART x 2 (Tx/Rx) |
| HDD Interface | SATA 6Gb/s x 2 |
| Expansion | PCIe [x1] x 4 or [x2] x 2, LPC, WDT, HWM |
| GPIO | 8-bit |
| SMBus/I2C | I2C x 1, SMBus x 1 |
| Environment | |
| Operating Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| EMC | CE/FCC Class A |
| OS Support | Windows® 11 (64-bit) Linux Ubuntu 22.04.02/Kernel 5.19 |
| Weight | 0.26 lb. (0.12Kg) |
