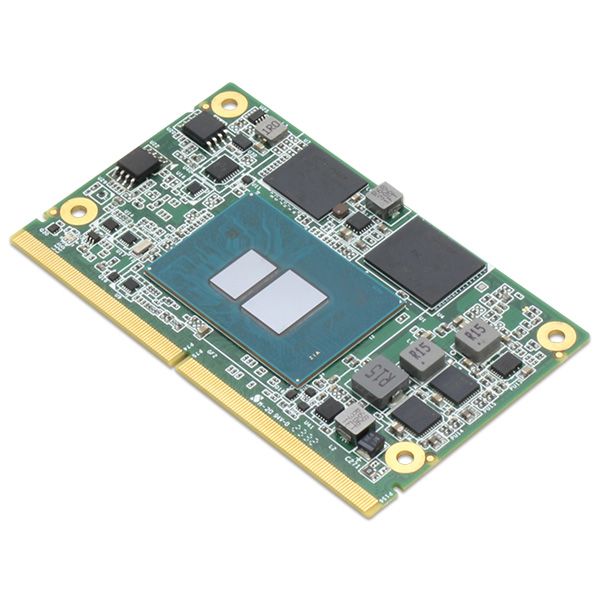

uCOM-ASL

SMARC Module with Intel Atom® Processor x7835RE/x7433RE

As low as US$385.00

Availability: In stock

Inventory: please select an item

SKU

uCOM-ASL

【Pre-Order】 Lead Time: 6-8 weeks

Qty:

SMARC Module with Intel Atom® Processor x7835RE/x7433RE

UCOM-ASLW2-B10-0001

System
Form Factor	SMARC Module
CPU	Intel Atom® x7835RE Processor (8C, up to 3.6 GHz, 12W)
Chipset	Integrated with Intel® SoC
Memory	Onboard LPDDR5(x) 4800MHz, 16GB
Storage	64GB eMMC
BIOS	AMI UEFI
MTBF (Hours)	2,614,335
Wake On LAN	Yes
Watchdog Timer	255 Levels
Real Time Clock	RTC x 1
Boot Select	Module eMMC Flash, SATA, USB
Security	TPM 2.0
Display
Graphics Controller	Intel® UHD Graphics
Video Output	Display: DP++ x 2, up to 3840 x 2160 eDP x 1, up to 3840 x 2160
I/O Interfaces
Ethernet	Intel® Ethernet Controller I226-IT 2.5GbE x 2
USB	USB 2.0 x 6, USB 3.2 x 2
Serial Port	2-Wire UART x 2 (Tx/Rx) 4-Wire UART x 2 (Tx/Rx/RTS/CTS)
Audio	High Definition Audio Interface
PCIE	PCIe Gen 3 [x1] x 3 (Max PCIe [x2] x 1)
MIPI-CSI	MIPI CSI x 2
GPIO	7-bit
Other Interfaces	SATA 6Gb/s x 1 GP_I2C x 1 SMBus x 1
Power
Power Requirement	+5V for ATX / AT
Power Consumption	Intel® Core™ x7835RE, 5.03A @+12V
Environmental And Mechanical
Dimention	3.23" x 1.97" (82mm x 50mm)
Weight	0.14 lb. (0.06Kg)
Opreating Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
Certification	CE/FCC Class A
OS Support	Windows® 10 (64-bit) / Windows 11(Enterprise) Linux Ubuntu 22.04.2/Kernel 5.19

UCOM-ASLW2-B10-0002

System
Form Factor	SMARC Module
CPU	Intel Atom® x7433RE Processor (4C, up to 3.4 GHz, 9W)
Chipset	Integrated with Intel® SoC
Memory	Onboard LPDDR5(x) 4800MHz, 8GB
Storage	64GB eMMC
BIOS	AMI UEFI
MTBF (Hours)	2,614,335
Wake On LAN	Yes
Watchdog Timer	255 Levels
Real Time Clock	RTC x 1
Boot Select	Module eMMC Flash, SATA, USB
Security	TPM 2.0
Display
Graphics Controller	Intel® UHD Graphics
Video Output	Display: DP++ x 2, up to 3840 x 2160 eDP x 1, up to 3840 x 2160
I/O Interfaces
Ethernet	Intel® Ethernet Controller I226-IT 2.5GbE x 2
USB	USB 2.0 x 6, USB 3.2 x 2
Serial Port	2-Wire UART x 2 (Tx/Rx) 4-Wire UART x 2 (Tx/Rx/RTS/CTS)
Audio	High Definition Audio Interface
PCIE	PCIe Gen 3 [x1] x 3 (Max PCIe [x2] x 1)
MIPI-CSI	MIPI CSI x 2
GPIO	7-bit
Other Interfaces	SATA 6Gb/s x 1 GP_I2C x 1 SMBus x 1
Power
Power Requirement	+5V for ATX / AT
Power Consumption	Intel® Core™ x7835RE, 5.03A @+12V
Environmental And Mechanical
Dimention	3.23" x 1.97" (82mm x 50mm)
Weight	0.14 lb. (0.06Kg)
Opreating Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
Certification	CE/FCC Class A
OS Support	Windows® 10 (64-bit) / Windows 11(Enterprise) Linux Ubuntu 22.04.2/Kernel 5.19

Optional Accessories
Item	DESCRIPTION
Cooler	Cooler or heatsink is not included in the packing list. Please click HERE if you'd like to add the cooler to your order.
