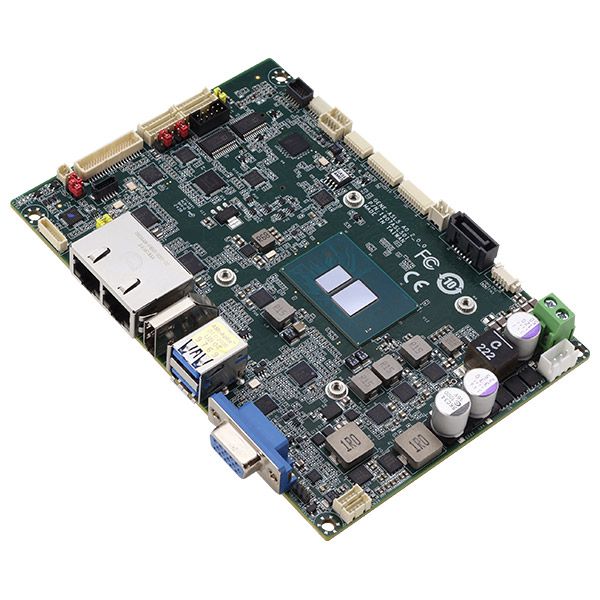

GENE-ASL5

3.5" SubCompact Board with Intel Atom® Processors x7000RE Series Processors

As low as US$425.00

Availability: In stock

Inventory: please select an item

SKU

GENE-ASL5

Intel Atom® Processors x7000RE Series Processors
DDR5 4800 MHz, SODIMM x 1, Up to 16GB
LVDS Dual Channel 18/24 bit x 1, VGA x 1, HDMI x 1
Intel® 2.5GbE x 2 , SATA III x 1, GPIO x 8bit
USB 3.2 Gen2 x 2 , USB2.0 x 4
Full size mPCIe/mSATA
M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
DC Input 9-36V
Supports WiTAS

Price Drop Notification

Qty:

Details

3.5" SubCompact Board with Intel Atom® Processors x7000RE Series Processors

Specification

GENE-ASL5W2-A10-0001

SYSTEM
Form Factor	3.5" SubCompact Board
CPU	Intel Atom® Processors x7000RE Series for the Edge: Intel Atom® x7433RE (4C, 1.5 GHz, 9W)
Chipset	Integrated with Intel® SoC
Memory Type	DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
SECURITY	TPM2.0
RTC BATTERY	Lithium Battery 3V/240mAH
Dimension (L x W)	5.75" x 4" (146mm x 101.7mm), 1.1 lb. (0.5Kg)
OS SUPPORT	Windows 10 (64bit) Windows 11 (64bit) Ubuntu 22.04 / Kernel 5.15.0-25-generic
Power
POWER REQUIREMENT	+9V~36V, support ERP
POWER SUPPLY TYPE	AT/ATX, support 3pin ATX
CONNECTOR	Phoenix 2-pin Connector (Colay 4 pin connector)
POWER CONSUMPTION	Intel Atom® x7835RE, DDR5 16GB x 1, 3.23A @+12V (Typical) Intel Atom® x7835RE, DDR5 16GB x 1, 4.76A @+12V (Max)
Display
CONTROLLER	Intel® UHD Graphics
LVDS/eDP	LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080
DISPLAY INTERFACE	HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x 1080
MULTIPLE DISPLAY	Up to 3 Simultaneous Displays
Audio
AUDIO	Audio function not available for WiTAS SKU
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I226, 2.5GbE x 2
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4 x 1, VGA x 1
INTERNAL I/O
USB	USB2.0 x 4
SERIAL PORT	COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232)
VIDEO	LVDS x 1 Inverter x 1 (12V/2A)
SATA	SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1
AUDIO	Audio function not available for WiTAS SKU
DIO/GPIO	GPIO 8-Bit
SMBUS/I2C	Default: SMBus
TOUCH	4/5/8 wire Touch Controller x 1
FAN	4pins Smart Fan x1
SIM	Nano SIM x 1
FRONT PANEL	HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA	Full-size mSATA / mPCIe x 1 (Default: mPCIe, select by BIOS)
M.2	M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2 Gen 2/PCIe 3.0 [x2] + USB 2.0, default: PCIe [x1] + USB 3.2 Gen 2, selected by BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0, support CNVi)
OTHERS	—
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	WiTAS 2: -40°F ~ 185°F (-40°C ~ 85°C)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	1,284,701
EMC	CE/FCC Class A

GENE-ASL5W2-A10-0002

SYSTEM
Form Factor	3.5" SubCompact Board
CPU	Intel Atom® Processors x7000RE Series for the Edge: Intel Atom® x7213RE (2C, 2.0 GHz, 9W)
Chipset	Integrated with Intel® SoC
Memory Type	DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
SECURITY	TPM2.0
RTC BATTERY	Lithium Battery 3V/240mAH
Dimension (L x W)	5.75" x 4" (146mm x 101.7mm), 1.1 lb. (0.5Kg)
OS SUPPORT	Windows 10 (64bit) Windows 11 (64bit) Ubuntu 22.04 / Kernel 5.15.0-25-generic
Power
POWER REQUIREMENT	+9V~36V, support ERP
POWER SUPPLY TYPE	AT/ATX, support 3pin ATX
CONNECTOR	Phoenix 2-pin Connector (Colay 4 pin connector)
POWER CONSUMPTION	Intel Atom® x7835RE, DDR5 16GB x 1, 3.23A @+12V (Typical) Intel Atom® x7835RE, DDR5 16GB x 1, 4.76A @+12V (Max)
Display
CONTROLLER	Intel® UHD Graphics
LVDS/eDP	LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080
DISPLAY INTERFACE	HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x 1080
MULTIPLE DISPLAY	Up to 3 Simultaneous Displays
Audio
AUDIO	Audio function not available for WiTAS SKU
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I226, 2.5GbE x 2
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4 x 1, VGA x 1
INTERNAL I/O
USB	USB2.0 x 4
SERIAL PORT	COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232)
VIDEO	LVDS x 1 Inverter x 1 (12V/2A)
SATA	SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1
AUDIO	Audio function not available for WiTAS SKU
DIO/GPIO	GPIO 8-Bit
SMBUS/I2C	Default: SMBus
TOUCH	4/5/8 wire Touch Controller x 1
FAN	4pins Smart Fan x1
SIM	Nano SIM x 1
FRONT PANEL	HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA	Full-size mSATA / mPCIe x 1 (Default: mPCIe, select by BIOS)
M.2	M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2 Gen 2/PCIe 3.0 [x2] + USB 2.0, default: PCIe [x1] + USB 3.2 Gen 2, selected by BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0, support CNVi)
OTHERS	—
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	WiTAS 2: -40°F ~ 185°F (-40°C ~ 85°C)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	1,284,701
EMC	CE/FCC Class A

GENE-ASL5W2-A10-0003

SYSTEM
Form Factor	3.5" SubCompact Board
CPU	Intel Atom® Processors x7000RE Series for the Edge: Intel Atom® x7835RE (8C, 1.3 GHz, 12W)
Chipset	Integrated with Intel® SoC
Memory Type	DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
SECURITY	TPM2.0
RTC BATTERY	Lithium Battery 3V/240mAH
Dimension (L x W)	5.75" x 4" (146mm x 101.7mm), 1.1 lb. (0.5Kg)
OS SUPPORT	Windows 10 (64bit) Windows 11 (64bit) Ubuntu 22.04 / Kernel 5.15.0-25-generic
Power
POWER REQUIREMENT	+9V~36V, support ERP
POWER SUPPLY TYPE	AT/ATX, support 3pin ATX
CONNECTOR	Phoenix 2-pin Connector (Colay 4 pin connector)
POWER CONSUMPTION	Intel Atom® x7835RE, DDR5 16GB x 1, 3.23A @+12V (Typical) Intel Atom® x7835RE, DDR5 16GB x 1, 4.76A @+12V (Max)
Display
CONTROLLER	Intel® UHD Graphics
LVDS/eDP	LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080
DISPLAY INTERFACE	HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x 1080
MULTIPLE DISPLAY	Up to 3 Simultaneous Displays
Audio
AUDIO	Audio function not available for WiTAS SKU
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I226, 2.5GbE x 2
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4 x 1, VGA x 1
INTERNAL I/O
USB	USB2.0 x 4
SERIAL PORT	COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232)
VIDEO	LVDS x 1 Inverter x 1 (12V/2A)
SATA	SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1
AUDIO	Audio function not available for WiTAS SKU
DIO/GPIO	GPIO 8-Bit
SMBUS/I2C	Default: SMBus
TOUCH	4/5/8 wire Touch Controller x 1
FAN	4pins Smart Fan x1
SIM	Nano SIM x 1
FRONT PANEL	HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA	Full-size mSATA / mPCIe x 1 (Default: mPCIe, select by BIOS)
M.2	M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2 Gen 2/PCIe 3.0 [x2] + USB 2.0, default: PCIe [x1] + USB 3.2 Gen 2, selected by BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0, support CNVi)
OTHERS	—
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	WiTAS 2: -40°F ~ 185°F (-40°C ~ 85°C)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	1,284,701
EMC	CE/FCC Class A
