UP Squared i12
UP Squared i12 Developer Board with 12th/13th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
As low as
US$357.00
Availability:
In stock
Inventory: please select an item
SKU
UP Squared i12
Applications

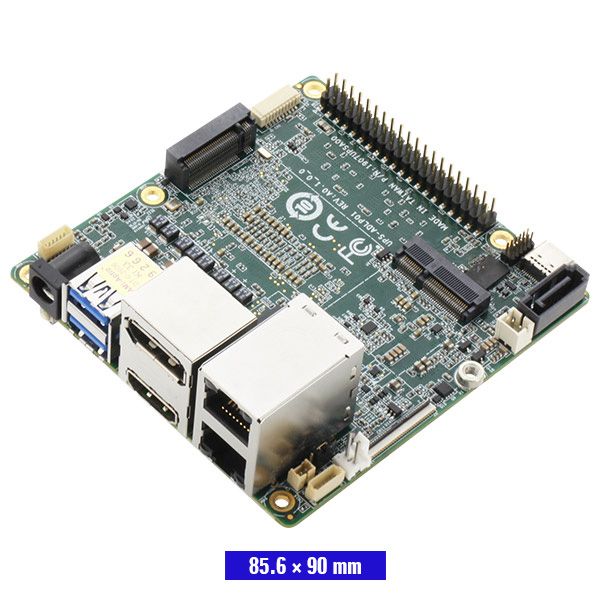

The UP Squared i12 (UPS-ADLP/UPS-RAP) is the world's smallest motherboard to host onboard 12/13th Generation Intel® Core™/Celeron® Processor 7000 processors (formerly Alder Lake P/Raptor Lake). On a form factor measuring 85.6mm × 90mm, the UP Squared i12 is comparable in size to the PICO form factor, but with the added benefit of being a platform for development.
Aiding its utility as a board for developers to build industrial applications, the UP Squared i12 is equipped with a Raspberry Pi-compatible 40-pin header, augmenting the traditionally barebones-style kit with Core i power that exceeds the capabilities of most industrial motherboards.
12/13th Gen power also comes with its own benefits, such as improved speed and efficiency in processing capability when compared to both its predecessors and competitors' larger solutions built on the PICO form factor. The hybrid processor architecture of the 12/13th Gen platform boast up to 4 performance and 8 efficient cores for greater workload management, and with Intel® Hyper-Threading Technology, the execution of complex tasks is expedited.
Given its compact size and selection of incredibly powerful 12/13th Gen embedded CPUs, the UP Squared i12 contains a remarkable number of high-speed interfaces, the functionality of which are enhanced by its onboard LPDDR5 system memory. Two MIPI-CSI camera connectors are joined by three display outputs, GbE LAN, and both physical and internal USB interfaces.
It is not just the board's Raspberry Pi-compatible 40-pin header that offers expansion for additional functions, as the UP Squared i12 is also home to expansion slots supporting AI Acceleration and Wi-Fi Modules, along with expandable SSD-based storage, NVMe, and SATA III.
Smart Retail
Onboard LPDDR5 system memory facilitates fast edge data transmission for frictionless shopping, people-counting, and intelligent vending machine solutions.
Machine Vision
A small form factor and MIPI-CSI camera support allows for discreet, cost-efficient image collection, with edge-based analytic capability via AI expansion cards.
Healthcare Imaging
Multiple display interfaces channel exceptional inferencing via AI module support, enabling smart healthcare solutions such as ultrasounds.
Robotics
12th/13th Gen Intel® Core™ processing, LPDDR5, and a wealth of peripheral device interfaces provide the foundation for elite robotics applications.
UPS-ADLPI7-A10-0800
| SYSTEM | |
| Processor | Intel® Core i7-1270PE |
| Graphics | Intel® UHD Graphics |
| Memory | 8GB Onboard LPDDR5 |
| Storage | M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| I/O | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) 6-pin Audio Wafer x 1 (Line out + MIC in) 6-pin Front Panel x 1 2-pin Fan Wafer x 1 (12V) 2-pin RTC Battery Wafer x 1 |
| Camera | MIPI CSI camera via 61pin wafer w/carrier board HDMI-in via 61pin wafer w/carrier board |
| USB | 10-pin USB 2.0 x 2/UART x 1 USB 3.2 Gen 2 (Type-A) x 2 USB 3.2 Gen 2 (Type-C for DP 1.4) x 1 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (CNVI & PCIe Gen 3.0 [x1]) M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| Display Interface | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) |
| Ethernet | 1GbE RJ45 x 2 (Dual Stacked) (Realtek 8111H CG) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Windows®10 IoT Enterprise LTSC 2021, Ubuntu 22.04, Yocto 4.0 |
| Power Requirement | |
| Power | 12V DC-in |
| Power Supply Type | AT/ATX (AT as default) |
| Power Consumption (Typical) | 26W~39W |
| Mechanical | |
| Dimension | 3.37" x 3.54" (85.6mm × 90mm) |
| Net Weight | 0.59 lbs (0.27kg) |
| Gross Weight | 0.84 lbs (0.38kg) |
| Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 522,716 Hours |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
UPS-ADLPI5-A10-0800
| SYSTEM | |
| Processor | Intel® Core i5-1250PE |
| Graphics | Intel® UHD Graphics |
| Memory | 8GB Onboard LPDDR5 |
| Storage | M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| I/O | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) 6-pin Audio Wafer x 1 (Line out + MIC in) 6-pin Front Panel x 1 2-pin Fan Wafer x 1 (12V) 2-pin RTC Battery Wafer x 1 |
| Camera | MIPI CSI camera via 61pin wafer w/carrier board HDMI-in via 61pin wafer w/carrier board |
| USB | 10-pin USB 2.0 x 2/UART x 1 USB 3.2 Gen 2 (Type-A) x 2 USB 3.2 Gen 2 (Type-C for DP 1.4) x 1 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (CNVI & PCIe Gen 3.0 [x1]) M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| Display Interface | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) |
| Ethernet | 1GbE RJ45 x 2 (Dual Stacked) (Realtek 8111H CG) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Windows®10 IoT Enterprise LTSC 2021, Ubuntu 22.04, Yocto 4.0 |
| Power Requirement | |
| Power | 12V DC-in |
| Power Supply Type | AT/ATX (AT as default) |
| Power Consumption (Typical) | 26W~39W |
| Mechanical | |
| Dimension | 3.37" x 3.54" (85.6mm × 90mm) |
| Net Weight | 0.59 lbs (0.27kg) |
| Gross Weight | 0.84 lbs (0.38kg) |
| Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 522,716 Hours |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
UPS-RAPI3-A10-0800
| SYSTEM | |
| Processor | Intel® Core™ i3-1320PE |
| Graphics | Intel® UHD Graphics |
| Memory | 8GB Onboard LPDDR5 |
| Storage | M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| I/O | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) 6-pin Audio Wafer x 1 (Line out + MIC in) 6-pin Front Panel x 1 2-pin Fan Wafer x 1 (12V) 2-pin RTC Battery Wafer x 1 |
| Camera | MIPI CSI camera via 61pin wafer w/carrier board HDMI-in via 61pin wafer w/carrier board |
| USB | 10-pin USB 2.0 x 2/UART x 1 USB 3.2 Gen 2 (Type-A) x 2 USB 3.2 Gen 2 (Type-C for DP 1.4) x 1 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (CNVI & PCIe Gen 3.0 [x1]) M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| Display Interface | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) |
| Ethernet | 1GbE RJ45 x 2 (Dual Stacked) (Realtek 8111H CG) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Windows®10 IoT Enterprise LTSC 2021, Ubuntu 22.04, Yocto 4.0 |
| Power Requirement | |
| Power | 12V DC-in |
| Power Supply Type | AT/ATX (AT as default) |
| Power Consumption (Typical) | 26W~39W |
| Mechanical | |
| Dimension | 3.37" x 3.54" (85.6mm × 90mm) |
| Net Weight | 0.59 lbs (0.27kg) |
| Gross Weight | 0.84 lbs (0.38kg) |
| Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 522,716 Hours |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
UPS-ADLPCR-A10-0800
| SYSTEM | |
| Processor | Intel® Celeron® 7305E |
| Graphics | Intel® UHD Graphics |
| Memory | 8GB Onboard LPDDR5 |
| Storage | M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| I/O | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) 6-pin Audio Wafer x 1 (Line out + MIC in) 6-pin Front Panel x 1 2-pin Fan Wafer x 1 (12V) 2-pin RTC Battery Wafer x 1 |
| Camera | MIPI CSI camera via 61pin wafer w/carrier board HDMI-in via 61pin wafer w/carrier board |
| USB | 10-pin USB 2.0 x 2/UART x 1 USB 3.2 Gen 2 (Type-A) x 2 USB 3.2 Gen 2 (Type-C for DP 1.4) x 1 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (CNVI & PCIe Gen 3.0 [x1]) M.2 2280 M-Key NVMe x 1 (PCIe Gen 4.0 [x4]) SATA 6Gb/s x 1 |
| Display Interface | HDMI 1.4b/DP 1.2 STACK Connector x 1 DP 1.4a x 1 (via USB Type-C) |
| Ethernet | 1GbE RJ45 x 2 (Dual Stacked) (Realtek 8111H CG) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Windows®10 IoT Enterprise LTSC 2021, Ubuntu 22.04, Yocto 4.0 |
| Power Requirement | |
| Power | 12V DC-in |
| Power Supply Type | AT/ATX (AT as default) |
| Power Consumption (Typical) | 26W~39W |
| Mechanical | |
| Dimension | 3.37" x 3.54" (85.6mm × 90mm) |
| Net Weight | 0.59 lbs (0.27kg) |
| Gross Weight | 0.84 lbs (0.38kg) |
| Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 522,716 Hours |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
