Pico-ITX Board with TI AM62x Sitara™ Processors
Scalable, Cost-Efficient Processor Architecture
With a foundation of Texas Instruments™ AM62x Sitara™ Processors, the PICO-AM62 and SRG-AM62 offer a unique combination of scalable Arm® Cortex®-A53 performance, cost-efficiency, and 20-year longevity. By harnessing the platform’s processing capabilities and integrated GPU support, the PICO-AM62 and SRG-AM62 facilitate graphics rendering, sensor data management, and compute task execution needed to build reliable IoT solutions, such as digital cluster devices.
Flexible, Multipurpose Interfaces
Broad peripheral device and communication protocols are supported courtesy of the PICO-AM62 and SRG-AM62's diverse interface selection. At both the board and system levels, the platform provides dual LAN ports with TSN for wired networking, camera, and sensor support. Wireless communication, such as Wi-Fi and 4G/LTE, is also available via full and half-size mini cards. Both products also feature a multipurpose I/O connector offering industrial control functions such as RS-232/422/485, CANBus, UART, GPIO, and I2C.
Built to Last

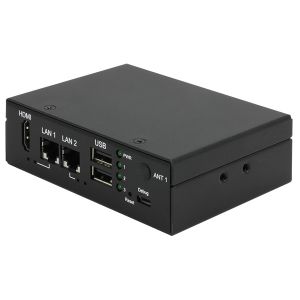

Whether integrating the PICO-AM62 as a discreet addition to an automotive solution or the SRG-AM62 as a building access monitor, AAEON's new RISC-based product range is designed for longevity. A broad 9V ~ 36V power input range, compact form factors, and a temperature tolerance range of up to -40°C ~ 85°C mean both the PICO-AM62 and SRG-AM62 are able to withstand the pressures of modern industrial computing.
SYSTEM | |
FORM FACTOR | PICO ITX , 2.5" SBC |
Processor | ARM TI AM6254, Quad- Core Cortex-A53 1.4GHz Processor |
Memory | Onboard DDR4 16 bit, default with 2 GB |
Storage | eMMC 5.1 default with 16 GB Micro SD Card slot x1 |
Real Time Clock | RTC x 1, with 3V CR2032H Lithium battery |
Security | TPM 2.0 |
Indicators | Programmable LED control x 3 |
Cellular | Full Size Mini Card x 1 (USB signal) |
Wireless Lan | Half Size Mini Card x 1 (USB signal) |
Operating System | Debian 12 (Default, GUI is optional) Android 14 |
Support Protocol | — |
I/O Interfaces | |
Serial Port | RS232(2-wire)/422/485 x 2 RS232/422/485 x 2 |
Ethernet | GbE x 2 support IEEE 1588, TSN, integrated RGMII |
Audio | Line in / Line Out / Mic x 1 |
USB | USB 2.0 Gen1 x 2 (rear I/O) -Host/device by image option, default: host x 1 -Host x 1 USB2.0 (Pin Header) x 1 |
ADC | — |
DI/DO | — |
CAN Bus | CAN-FD x 2 CH, Phoenix Connector (optional) |
Display | HDMI 1.4b up to 1080p x 1 LVDS x 1, dual channel, 18/24bit |
Power Connector | 2 Pin 3.81mm Pitch Phoenix Connector |
Debug Port | Micro USB x 1 |
Expansion Slot | Half Size Mini Card (USB2.0) x 1, power control available by software Full Size Mini Card (USB2.0) x 1, power control available by software SPI x 4 (optional) I2C x 2 (optional) UART x 2 (optional) |
Other Interface | GPIO x 1, I2C x 1, SPI x 1 (CSx2) |
Power Supply | |
Power Requirement | +9~36V (Lockable terminal block) |
Power Consumption | 5.76W (Full Loading) |
MTBF (Hours) | 1,279,408 Hours |
Environmental and Mechanical | |
Dimension | 3.94" x 2.84"(100mm x 72mm) |
Weight | 0.18 lbs (0.08 kg) |
Mount Options | — |
Operation Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
Storage Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
Certification | CE/FCC Class A |
