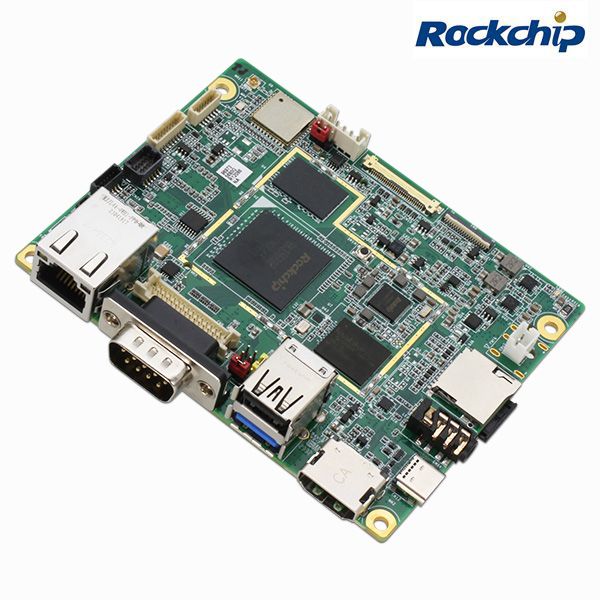

RICO-3568
Pico-ITX Fanless Board with Rockchip RK3568 Quad-Core Arm® Cortex®-A55 Processor
As low as
US$163.00
Availability:
In stock
Inventory: please select an item
SKU
RICO-3568
Designed to appeal to customers seeking a robust, industrial-grade solution for markets such as automation, digital signage, and edge computing, the RICO-3568 provides a wide range of interfaces and expansion options to leverage the high-performance, low-power capabilities of the Rockchip RK3568 platform. The RICO-3568 features up to 8GB of onboard LPDDR4, paired with 16GB of eMMC storage, a Micro-SD card slot, and a mini-PCIe slot that supports mSATA as storage.
RICO-3568-A10-0001
| SYSTEM | |
| FORM FACTOR | Pico-ITX Plus (100mm x 80mm) |
| CPU | Rockchip RK3568 Quad-Core Arm® Cortex®-A55 Processor NPU: 0.8 TOPS |
| GPU | Arm® Mali™-G52 GPU |
| Graphics | Video Encode: 1080P @60fps H.264/H.265 Video Decode: 4K@60fps H.264/H.265/AV1 4KP60 AVS2/VP9 1080P MPEG1/ VP8 |
| MEMORY CAPACITY | Onboard LPDDR4 2GB |
| STORAGE/SSD | 16GB eMMC and Micro-SD card Full-size mini-PCIe slot x 1 (mSATA / USB) |
| OPERATING SYSTEM | Android™ 12 Debian® 10 |
| KERNEL | Kernel 4.19.219 (Android 12) |
| WATCHDOG TIMER | Integrated |
| POWER REQUIREMENT | +12V DC input AT: Default, ATX: Optional |
| POWER CONSUMPTION (TYPICAL) | 0.96A @12V, full load, Quad-core CPU |
| DIMENSION | 3.94" x 3.15" (100mm x 80mm) |
| GROSS WEIGHT | 0.44 lb (0.2 Kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 100,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| HDMI | HDMI 2.0, up to 4K x 2K @60Hz |
| EDP | eDP 1.3, up to 2560 x 1600 @60Hz |
| LVDS | 18/24-bit LVDS, up to 1280 x 800 @60Hz JP2, 3.3V/5V: LVDS Power Selection JP3, 5V/12V: Backlight Power Selection LCD Backlight connector |
| MIPI | Up to 2048 x 1536 @60Hz for Dual-MIPI Mode |
| RF FUNCTION | |
| WIFI | Onboard 802.11 a/b/g/n/ac ANT1 for Antenna |
| BT | Bluetooth V5.0 + EDR |
| I/O | |
| ETHERNET | GbE x 2 RJ-45 x 2 (Onboard x 1 + T650 Daughter Board RJ-45 Port or T650 Wide-Voltage Board RJ-45 Port) |
| USB PORT | USB 3.2 Gen 1 OTG (Type-C) x 1 USB 3.2 Gen 1 x 1 USB 2.0 x 2 (Type-A x 1, Pin Header with Integrated USB, I2C, 5V x 1) |
| SERIAL PORT | RS-232/422/485 x 1 JP1, 5V/12V: RS-232/422/485 Voltage Output Selection RS-232 / Debug port 7-pin wafer x 1 CN3: UART (Tx/Rx only), I2C, USB, Others |
| AUDIO | Microphone/ Earphone (3.5mm) |
| GPIO | GPIO x 8, 2x6 Wafer x 1 |
| EXPANSION SLOT | Full-size mini-PCIe slot x 1 (mSATA / USB) Connect to Daughter board: 40-pin FPC connector x 1 |
| SIM slot | Nano-SIM, Push-Push type with tray |
| SD SOCKET | Micro-SD card, Push-Push type |
RICO-3568-A10-0002
| SYSTEM | |
| FORM FACTOR | Pico-ITX Plus (100mm x 80mm) |
| CPU | Rockchip RK3568 Quad-Core Arm® Cortex®-A55 Processor NPU: 0.8 TOPS |
| GPU | Arm® Mali™-G52 GPU |
| Graphics | Video Encode: 1080P @60fps H.264/H.265 Video Decode: 4K@60fps H.264/H.265/AV1 4KP60 AVS2/VP9 1080P MPEG1/ VP8 |
| MEMORY CAPACITY | Onboard LPDDR4 4GB |
| STORAGE/SSD | 16GB eMMC and Micro-SD card Full-size mini-PCIe slot x 1 (mSATA / USB) |
| OPERATING SYSTEM | Android™ 12 Debian® 10 |
| KERNEL | Kernel 4.19.219 (Android 12) |
| WATCHDOG TIMER | Integrated |
| POWER REQUIREMENT | +12V DC input AT: Default, ATX: Optional |
| POWER CONSUMPTION (TYPICAL) | 0.96A @12V, full load, Quad-core CPU |
| DIMENSION | 3.94" x 3.15" (100mm x 80mm) |
| GROSS WEIGHT | 0.44 lb (0.2 Kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 100,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| HDMI | HDMI 2.0, up to 4K x 2K @60Hz |
| EDP | eDP 1.3, up to 2560 x 1600 @60Hz |
| LVDS | 18/24-bit LVDS, up to 1280 x 800 @60Hz JP2, 3.3V/5V: LVDS Power Selection JP3, 5V/12V: Backlight Power Selection LCD Backlight connector |
| MIPI | Up to 2048 x 1536 @60Hz for Dual-MIPI Mode |
| RF FUNCTION | |
| WIFI | Onboard 802.11 a/b/g/n/ac ANT1 for Antenna |
| BT | Bluetooth V5.0 + EDR |
| I/O | |
| ETHERNET | GbE x 2 RJ-45 x 2 (Onboard x 1 + T650 Daughter Board RJ-45 Port or T650 Wide-Voltage Board RJ-45 Port) |
| USB PORT | USB 3.2 Gen 1 OTG (Type-C) x 1 USB 3.2 Gen 1 x 1 USB 2.0 x 2 (Type-A x 1, Pin Header with Integrated USB, I2C, 5V x 1) |
| SERIAL PORT | RS-232/422/485 x 1 JP1, 5V/12V: RS-232/422/485 Voltage Output Selection RS-232 / Debug port 7-pin wafer x 1 CN3: UART (Tx/Rx only), I2C, USB, Others |
| AUDIO | Microphone/ Earphone (3.5mm) |
| GPIO | GPIO x 8, 2x6 Wafer x 1 |
| EXPANSION SLOT | Full-size mini-PCIe slot x 1 (mSATA / USB) Connect to Daughter board: 40-pin FPC connector x 1 |
| SIM slot | Nano-SIM, Push-Push type with tray |
| SD SOCKET | Micro-SD card, Push-Push type |
- RICO-3568
- MB Power Cable
- RTC Battery
- *Please note that the RICO-3568 heat sink is not included by default and must be purchased separately.
