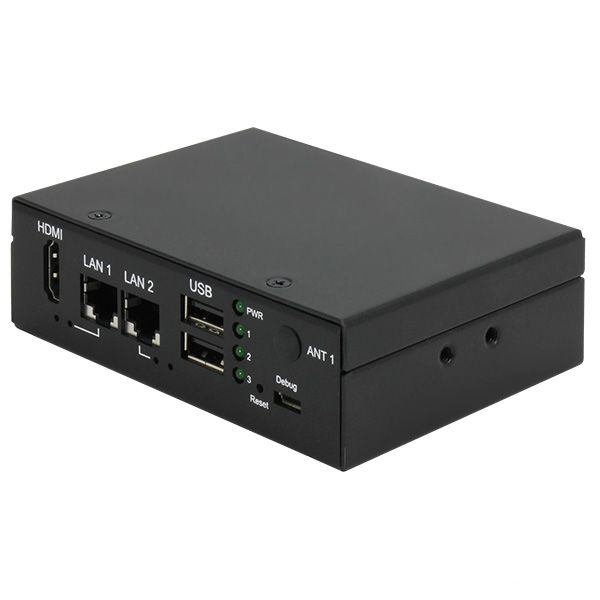

AAEON's new PICO-AM62 and SRG-AM62 offer cost-efficient RISC-based computing in both PICO-ITX and edge gateway system form, respectively. Both the PICO-AM62 and SRG-AM62 are equipped with Texas Instruments™ AM62x Sitara™ Processors, which, paired with a diverse selection of configurable interfaces, make them the perfect base with which to build IoT solutions, from automated building access control to vehicle telematics applications.
Scalable, Cost-Efficient Processor Architecture
With a foundation of Texas Instruments™ AM62x Sitara™ Processors, the PICO-AM62 and SRG-AM62 offer a unique combination of scalable Arm® Cortex®-A53 performance, cost-efficiency, and 20-year longevity. By harnessing the platform's processing capabilities and integrated GPU support, the PICO-AM62 and SRG-AM62 facilitate graphics rendering, sensor data management, and compute task execution needed to build reliable IoT solutions, such as digital cluster devices.
Flexible, Multipurpose Interfaces
Broad peripheral device and communication protocols are supported courtesy of the PICO-AM62 and SRG-AM62's diverse interface selection. At both the board and system levels, the platform provides dual LAN ports with TSN for wired networking, camera, and sensor support. Wireless communication, such as Wi-Fi and 4G/LTE, is also available via full and half-size mini cards. Both products also feature a multipurpose I/O connector offering industrial control functions such as RS-232/422/485, CANBus, UART, GPIO, and I2C.
Built to Last
Whether integrating the PICO-AM62 as a discreet addition to an automotive solution or the SRG-AM62 as a building access monitor, AAEON's new RISC-based product range is designed for longevity. A broad 9V ~ 36V power input range, compact form factors, and a temperature tolerance range of up to -40°C ~ 85°C mean both the PICO-AM62 and SRG-AM62 are able to withstand the pressures of modern industrial computing.
SYSTEM | |
Processor | ARM TI AM6254, Quad- Core Cortex-A53 1.4GHz Processor |
Memory | Onboard DDR4 16 bit, default with 2 GB |
Storage | eMMC 5.1 16 GB Micro SD Card slot x1 |
Real Time Clock | RTC x 1, with 3V CR2032H Lithium battery |
Security | TPM 2.0 |
Indicators | Programmable LED control x 3 |
Cellular | Full Size Mini Card x 1 (USB signal) |
Wireless Lan | Half Size Mini Card x 1 (USB signal) |
Operating System | Debian 12 (Default, GUI is optional) Android 14 |
Support Protocol | — |
I/O | |
Serial Port | RS-232/422/485 switchable x 2, Phoenix Connector |
Ethernet | Gigabit Ethernet x 2, RJ-45 support IEEE 1588, TSN, integrated RGMII |
Audio | Line Out x 1 (by request) |
USB | USB 2.0 Gen1 x 2 -Host/device by image option, default: host x 1 -Host x 1 |
CAN Bus | CAN-FD x 2 CH, Phoenix Connector |
Display | HDMI 1.4b up to 1080p x 1 |
Power Connector | 2 Pin 3.81mm Pitch Phoenix Connector |
Debug Port | Micro USB x 1 |
Expansion Slot | Half Size Mini Card (USB2.0) x 1, support Wifi/BT module, etc Full Size Mini Card (USB2.0) x 1, support 4G module, etc Power control available by software |
POWER SUPPLY | |
Power Requirement | DC 9-36V |
Power Consumption | 5.76W (Full Loading) |
MTBF (Hours) | 1,279,408 Hours |
ENVIRONMENTAL AND MECHANICAL | |
Dimension | 4.25" x 3.13" x 1.29" (108mm x 79.5mm x 33mm) |
Weight | 0.72 lbs (0.33 kg) |
Mount Options | Wall Mount, Din Rail (Optional) |
Operation Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
Storage Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
Certification | CE/FCC Class A |
