COM-TGUC6 Rev.C

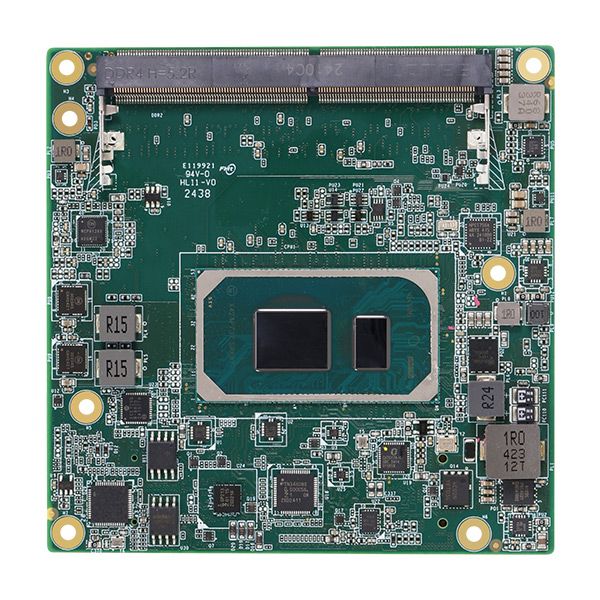

COM Express Type 6 Compact Size with 11th Gen Intel® Core™ i3-1115G4E Processor

US$493.00

Availability: In stock

Only 1 left

SKU

COM-TGUC6-C10-0003

Note: To achieve the best performance, it is recommended that you order the Cooler together with the COM-TGUC6.

COM Express Type 6 Compact Size with 11th Gen Intel® Core™ i3-1115G4E Processor

System
Form Factor	COM Express Compact Size, Type 6
CPU	11th Generation Intel® Core™ Processors: Intel® Core™ i3-1115G4E (2C/4T, 2.20 GHz, 15W)
Chipset	Integrated with Intel® SoC
Memory	DDR4 3200MHz Dual channel , SODIMM x 2, up to 64GB
BIOS	AMI UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
Dimension	3.74" x 3.74" (95mm x 95mm)
Security	TPM 2.0
Power
Power Requirement	+12V and +5VSB for ATX, +12V for AT
Power Type	AT/ATX
Power Consumption (Typical)	Intel® Core™ i7-1185G7E, 3.22A @+12V
Display
Graphics Controller	Intel® Iris® Xe Graphics Intel® UHD Graphics
Video Output	4 Simultaneous Displays: DDI x 3, up to 3840 x 2160 18/24-bit Single/Dual-Channel LVDS/eDP x 1, up to 1920 x 1080 / 3840 x 2160 VGA x 1, up to 1920 x 1080 VGA x 1, up to 1920 x 1080
I/O
Ethernet	Intel® Ethernet Controller I226, 2.5GbE x 1
Audio	High Definition Audio Interface
USB Port	USB 2.0 x 8, USB 3.2 Gen 2 x 4
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA 6Gb/s x 2
Expansion	PEG 3.0 [x4] x 1 PCIe 3.0 [x1] x 5 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1, SMBus x 1
Environment
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 (64-bit)
Weight	0.44 lb. (0.20Kg)

Optional Accessories
Item	DESCRIPTION
Cooler	Cooler or heatsink is not included in the packing list. Please click HERE if you'd like to add the cooler to your order.
Carrier Board	Please click HERE if you'd like to add the carrier board to your order.
