GENE-ARH6

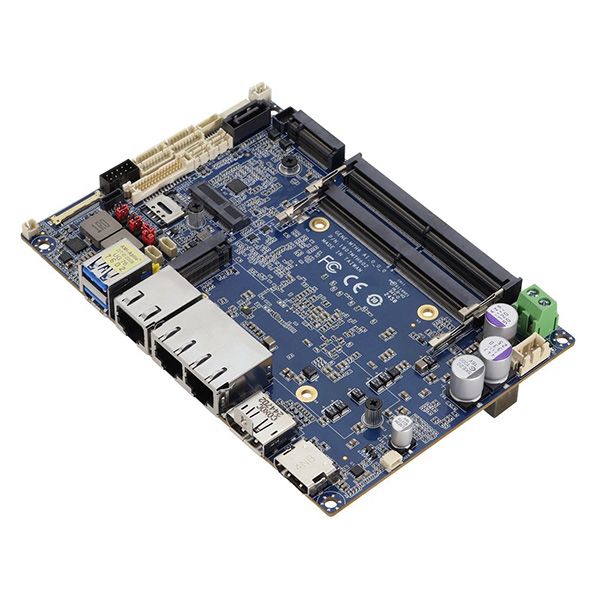

3.5" SubCompact Board with Intel® Core™ Ultra SoC
As low as
US$884.00
Availability:
In stock
Inventory: please select an item
SKU
GENE-ARH6
3.5" SubCompact Board with Intel® Core™ Ultra SoC
GENE-ARH6-A10-0001
| System | |
| Form Factor | 3.5" SubCompact Board |
| CPU | Intel® Core™ Ultra 7 Processor 255H (16C/16T, up to 5.1 GHz, 28W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 6400, Dual Channel SODIMM x 2 Max. 96GB, Non-ECC Note: Max capacity up to 2x 48GB DDR5 SODIMM up to 5600 MT/s |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAH |
| Dimensions | 5.75" x 4" (146mm x 101.7mm), 0.88 lb. (0.4Kg) |
| OS Support | Windows® 10 (64-bit) Windows® 11 (64-bit) Linux Ubuntu 24.04.2 (Kernel 6.11.0-25-generic) |
| Power | |
| Power Requirement | +9-36V, support ERP |
| Power Supply Type | AT/ATX, support 3pin ATX |
| Connector | Phoenix 2-pin Connector (Colay 4 pin connector) |
| Power Consumption | Intel® Core™ Ultra 7, DDR5 48GB x 2, 5.44A @+12V (Typical) Intel® Core™ Ultra 7, DDR5 48GB x 1, 9.56A @+12V (Max) |
| Display | |
| Controller | Intel® Arc™ Graphics Intel® Graphics |
| LVDS/eDP | LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080 eDP 1.4b HBR3 x 1, up to 3840 x 2160 @60Hz |
| Display Interface | HDMI 2.1 x 1, up to 8K x 4K@60Hz or 4K x 2K@120Hz DP 2.0 x 1, up to 7680 x 4320@60Hz 30bpp (support DP++) |
| Multiple Display | Up to 4 Simultaneous Displays |
| Audio | |
| Codec | Realtek ALC897 |
| Audio Interface | Line-in/Line-out/MIC |
| Speaker | — |
| External I/O | |
| Ethernet | Intel® Ethernet Connection I219 1GbE, RJ-45 x 1 Intel® Ethernet Controller I226 2.5GbE, RJ-45 x 2, support PEX (Intel vPro® support with Intel® Core™ Ultra 7 Processor 265H) |
| USB | USB3.2 Gen 2 x 2 |
| Serial Port | — |
| Video | HDMI 2.1 x 1, DP 2.0++ x 1 |
| Internal I/O | |
| USB | USB2.0 x 4 |
| Serial Port | COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232) |
| Video | LVDS x 1, Inverter x 1 (12V/2A), eDP x 1 |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| Audio | Audio Header x 1 |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| Touch | — |
| Fan | 4 wire Smart Fan x 1 |
| Sim | Nano SIM x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Expansion | |
| Mini PCIe/mSATA | — |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA) Default: PCIe 4.0 [x4] (selected by BOM) M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2/PCIe 3.0 [x2]) Default: PCIe 3.0 [x1] (selected by BOM) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0), supports Wi-Fi 6E CNVi (RAID 0, RAID 1 support on PCIe storage) |
| Others | FPC2 x 1 (PCIe Gen4 [x4] x 2), Support RAID 0, RAID 1 |
| Environment & Certification | |
| Operating Temp. | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temp. | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 753,493 |
| EMC | CE/FCC Class A |
GENE-ARH6-A10-0002
| System | |
| Form Factor | 3.5" SubCompact Board |
| CPU | Intel® Core™ Ultra 5 Processor 225H (14C/14T, up to 4.9 GHz, 28W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 6400, Dual Channel SODIMM x 2 Max. 96GB, Non-ECC Note: Max capacity up to 2x 48GB DDR5 SODIMM up to 5600 MT/s |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAH |
| Dimensions | 5.75" x 4" (146mm x 101.7mm), 0.88 lb. (0.4Kg) |
| OS Support | Windows® 10 (64-bit) Windows® 11 (64-bit) Linux Ubuntu 24.04.2 (Kernel 6.11.0-25-generic) |
| Power | |
| Power Requirement | +9-36V, support ERP |
| Power Supply Type | AT/ATX, support 3pin ATX |
| Connector | Phoenix 2-pin Connector (Colay 4 pin connector) |
| Power Consumption | Intel® Core™ Ultra 7, DDR5 48GB x 2, 5.44A @+12V (Typical) Intel® Core™ Ultra 7, DDR5 48GB x 1, 9.56A @+12V (Max) |
| Display | |
| Controller | Intel® Arc™ Graphics Intel® Graphics |
| LVDS/eDP | LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080 eDP 1.4b HBR3 x 1, up to 3840 x 2160 @60Hz |
| Display Interface | HDMI 2.1 x 1, up to 8K x 4K@60Hz or 4K x 2K@120Hz DP 2.0 x 1, up to 7680 x 4320@60Hz 30bpp (support DP++) |
| Multiple Display | Up to 4 Simultaneous Displays |
| Audio | |
| Codec | Realtek ALC897 |
| Audio Interface | Line-in/Line-out/MIC |
| Speaker | — |
| External I/O | |
| Ethernet | Intel® Ethernet Connection I219 1GbE, RJ-45 x 1 Intel® Ethernet Controller I226 2.5GbE, RJ-45 x 2, support PEX (Intel vPro® support with Intel® Core™ Ultra 7 Processor 265H) |
| USB | USB3.2 Gen 2 x 2 |
| Serial Port | — |
| Video | HDMI 2.1 x 1, DP 2.0++ x 1 |
| Internal I/O | |
| USB | USB2.0 x 4 |
| Serial Port | COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232) |
| Video | LVDS x 1, Inverter x 1 (12V/2A), eDP x 1 |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| Audio | Audio Header x 1 |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| Touch | — |
| Fan | 4 wire Smart Fan x 1 |
| Sim | Nano SIM x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Expansion | |
| Mini PCIe/mSATA | — |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA) Default: PCIe 4.0 [x4] (selected by BOM) M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2/PCIe 3.0 [x2]) Default: PCIe 3.0 [x1] (selected by BOM) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0), supports Wi-Fi 6E CNVi (RAID 0, RAID 1 support on PCIe storage) |
| Others | FPC2 x 1 (PCIe Gen4 [x4] x 2), Support RAID 0, RAID 1 |
| Environment & Certification | |
| Operating Temp. | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temp. | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 753,493 |
| EMC | CE/FCC Class A |
- GENE-ARH6 MB x1
