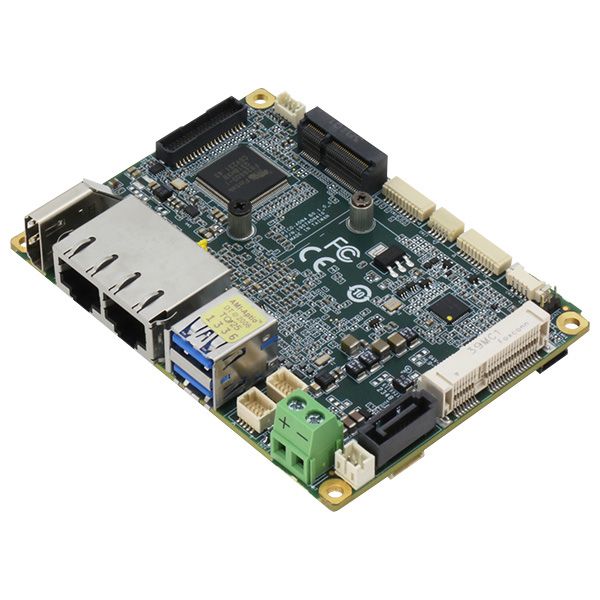

PICO-TWL4 Rev.B
Intel® Processor N150 & Intel® Core™ 3 Processor N355
As low as
US$247.00
Availability:
In stock
Inventory: please select an item
SKU
PICO-TWL4 Rev.B
Intel® Processor N150 & Intel® Core™ 3 Processor N355
PICO-TWL4-B10-0001
| System | |
| Form Factor | PICO-ITX |
| CPU | Intel® Processor N150 (4C, 0.80GHz, 6W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs. (0.08 kg) |
| OS Support | Windows 10/11 (64 bit) Ubuntu 22.04.2/Kernel 5.19 |
| Power | |
| Power Requirement | +12V |
| Power Supply Type | AT/ATX |
| Connector | Phoenix 2-pin Connector (Default) |
| Power Consumption | Intel® Core™ 3 Processor N355, DDR5 16GB x 1, 3.53A @+12V (Typical) Intel® Core™ 3 Processor N355, DDR5 16GB x 1, 5.25A @+12V (Max) |
| Display | |
| Controller | Intel® UHD Graphics for 12th Gen Intel® Processors |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz |
| Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
| Multiple Display | Up to 2 Simultaneous Displays |
| External I/O | |
| Ethernet | Intel® Ethernet Controller I226, 2.5GbE, RJ-45 x 1 Realtek RTL8111H-CG, 1GbE, RJ-45 x 1 |
| USB | USB 3.2 Gen2[x1] x 2 ports |
| Serial Port | — |
| Video | HDMI 1.4 x 1 |
| Internal I/O | |
| USB | USB 2.0 x 4 |
| Serial Port | COM 1~2 (RS-232/422/485, supports 5V/12V/RI) COM 3~4 (RS-232) |
| Video | LVDS/eDP x 1 (Default: LVDS) Inverter x 1 (12V/2A) |
| SATA | SATA 6.0Gbps x 1 +5V SATA Power Connector x 1 |
| DIO/GPIO | GPIO 4-bit |
| SMBUS/I2C | SMBus/ I2C x 1 (Default: SMBus) |
| Fan | 4-pin Smart Fan x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Expansion | |
| Mini PCIe/mSATA | Full-size mSATA/mPCIe x 1 (default: mSATA, select with BIOS) |
| M.2 | M.2 2230 E-Key x 1 |
| Environment & Certification | |
| Operating Temp | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temp | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 2,219,397 |
| EMC | CE/FCC Class A |
PICO-TWL4-B10-0002
| System | |
| Form Factor | PICO-ITX |
| CPU | Intel® Core™ 3 Processor N355 (8C, 1.90GHz, 15W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs. (0.08 kg) |
| OS Support | Windows 10/11 (64 bit) Ubuntu 22.04.2/Kernel 5.19 |
| Power | |
| Power Requirement | +12V |
| Power Supply Type | AT/ATX |
| Connector | Phoenix 2-pin Connector (Default) |
| Power Consumption | Intel® Core™ 3 Processor N355, DDR5 16GB x 1, 3.53A @+12V (Typical) Intel® Core™ 3 Processor N355, DDR5 16GB x 1, 5.25A @+12V (Max) |
| Display | |
| Controller | Intel® UHD Graphics for 12th Gen Intel® Processors |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz |
| Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
| Multiple Display | Up to 2 Simultaneous Displays |
| External I/O | |
| Ethernet | Intel® Ethernet Controller I226, 2.5GbE, RJ-45 x 1 Realtek RTL8111H-CG, 1GbE, RJ-45 x 1 |
| USB | USB 3.2 Gen2[x1] x 2 ports |
| Serial Port | — |
| Video | HDMI 1.4 x 1 |
| Internal I/O | |
| USB | USB 2.0 x 4 |
| Serial Port | COM 1~2 (RS-232/422/485, supports 5V/12V/RI) COM 3~4 (RS-232) |
| Video | LVDS/eDP x 1 (Default: LVDS) Inverter x 1 (12V/2A) |
| SATA | SATA 6.0Gbps x 1 +5V SATA Power Connector x 1 |
| DIO/GPIO | GPIO 4-bit |
| SMBUS/I2C | SMBus/ I2C x 1 (Default: SMBus) |
| Fan | 4-pin Smart Fan x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Expansion | |
| Mini PCIe/mSATA | Full-size mSATA/mPCIe x 1 (default: mSATA, select with BIOS) |
| M.2 | M.2 2230 E-Key x 1 |
| Environment & Certification | |
| Operating Temp | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temp | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 2,219,397 |
| EMC | CE/FCC Class A |
- PICO-TWL4 Rev.B
| Optional Accessories | |
| Item | DESCRIPTION |
|
Cooler |
Cooler or heatsink is not included in the packing list. Please click HERE if you'd like to add the cooler to your order. |
|
Heat Sink |
Cooler or heatsink is not included in the packing list. Please click HERE if you'd like to add the heatsink to your order. |
|
Heat Spreader |
Cooler or heatsink is not included in the packing list. Please click HERE if you'd like to add the heat spreader to your order. |
