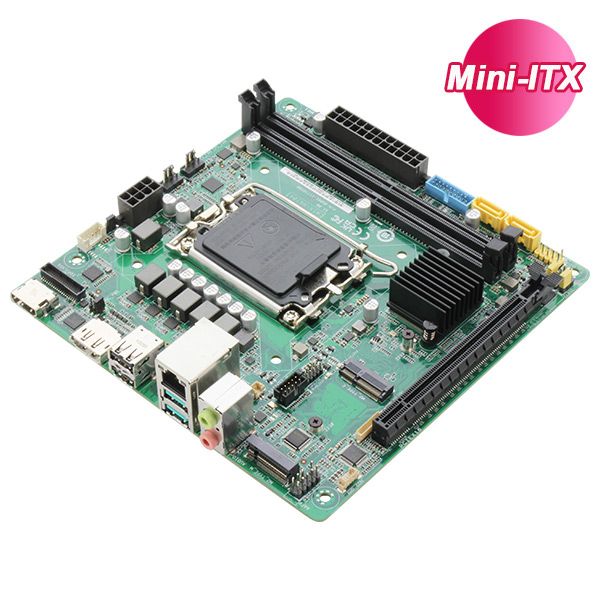

MIX-H610A2
Mini-ITX with 12th/13th/14th Gen Intel® Core™ and Series 2 LGA1700 Socket Processors, Max. TDP 65W
US$170.00
Availability:
In stock
Only 20 left
SKU
MIX-H610A2-A10
【Last Buy】
- 12th/13th/14th Gen Intel® Core™ and Series 2 (formerly Bartlett Lake) LGA1700 Socket Processors
- Dual Channel DDR4 Support, 3200MHz, Max. 32GB
- HDMI 1.4 x 1 + DP 1.4a x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1
- USB 3.2 x 4, USB 2.0 x 4
- Realtek RTL8111H Ethernet x 1
- SATA 6Gb/s x 2
- PCIe [x16] slot x 1
- ATX Power
The Scalable Smart System Signage Platform
Combining HDMI, DP, and eDP interfaces for multiple 4K displays, broad peripheral device support, and a platform designed for up to 65W CPUs from across the 12th, 13th, and 14th Gen Intel® Core™ series, the MIX-H610A2 is the ideal board with which to deploy smart kiosk and interactive signage solutions – with the added benefit of an expansive I/O for the integration of barcode scanners, card readers, printers, touchscreens, and speakers.
| SYSTEM | |
| PROCESSOR | 12th/13th/14th Generation Intel® Core™ (formerly Alder Lake/Raptor Lake) and Series 2 (formerly Bartlett Lake) LGA1700 Socket Processors, TDP Max 65W |
| CHIPSET | Intel® H610E Chipset |
| MEMORY | Dual Channel DDR4 3200MHz U-DIMM x 2 (Max. 32GB) |
| I/O CHIPSET | NCT5525D |
| ETHERNET | Realtek® RTL8111H x 1 |
| AUDIO | Realtek® ALC897 |
| TPM | fTPM |
| EXPANSION SLOT | M.2 2230 E-Key x 1 (PCIe [x1], USB 2.0) PCIe Gen 5 [x16] x 1 |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | Triple Independent Display |
| VGA | — |
| DVI | — |
| HDMI | HDMI 1.4, Up to 4096 x 2160 @30Hz/2560 x 1600 @60Hz, with Digital Audio |
| DISPLAY PORT | DP 1.4a, up to 4096 x 2160 @60Hz |
| LVDS | Dual-Channel 18/24 bit, up to 1920 x 1080 @60Hz |
| EDP | Up to 4096 x 2340 @60Hz |
| BACKLIGHT CONTROL | PWM |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX Voltage/Current(A) requirement:+3.3V/1.45A;+5V/7.63A;+12V/18.08A;+5VS B/0.24A |
| OPERATING TEMPERATURE | 32°F ~ 140°F(0 ~ 60°C) (Operational humidity: 60°C @ 90% RH Non-Condensing) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| CERTIFICATION | CE & FCC (Class A) |
| FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170mm x 170mm) |
| WEIGHT | 1.1 lb. (0.5Kg) |
| MTBF (Hours) | 422,390 |
| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 2 x 2 + USB 2.0 x 2 |
| DISPLAY I/O | HDMI 1.4 x 1, DP 1.4a x 1 |
| AUDIO I/O | Line-out x 1, MIC-in x 1 |
| LAN I/O | RJ-45 LAN Port x1 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA 6Gb/s x 2 M.2 2280 M-Key x 1 (PCIe [x4]/NVMe) |
| USB | USB 2.0 x 2 via Pin Header x 1 USB 3.2 Gen 1 x 2 via Box Header x 1 |
| Display I/O | 40-pin LVDS/eDP Connector x 1 (Default: LVDS) |
| Audio I/O | HD Audio x 1 via Pin Header |
| Serial Port | — |
| DIO | 8-bit programmable (4-in/4-out) x 1 |
| FAN | 4-pin Chassis Fan connector x 1 4-pin CPU Fan connector x 1 |
| Power | ATX |
| Others | Clear CMOS jumper x 1 Front Panel connector x 1 ATX/AT mode select x 1 ME disable x 1 eDP/LVDS Tcon IC voltage select x 1 Backlight Voltage Select x 1 |
| OS | |
| OS Support | Windows® 10 64-bit, Windows® 11 64-bit |
- MIX-H610A2
- I/O Shield
- SATA Cable
