ATX-Q670A | Intel 12th Gen | ATX motherboard

ATX-Q670A

MIX-ALPSD1 industrial motherboard | 12th Gen Intel Core Processors for IoT Edge (formerly Alder Lake PS)

MIX-ALPSD1

MIX-Q670D1

Mini-ITX with 12th/13th/14th Gen Intel Core LGA1700 Socket Processor, Max. 65W TDPs
US$268.00
Availability: Out of stock
SKU
MIX-Q670D1-A10

  • 12th/13th/14th Gen Intel® Core™ LGA1700 Processors
  • DDR5 4800MHz SODIMM x 2, Max. 64GB
  • HDMI 2.0 x 2 + DP 1.2 x 2
  • M.2 2280 M-Key x 1 (PCIe [x4], NVMe), M.2 2230 E-Key x 1, M.2 3042/52 B-Key x 1 w/ SIM slot
  • USB 3.2 x 4, USB 2.0 x 4
  • GbE LAN x 2
  • SATA III x 2
  • DC 12V input

Note: This product is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.

Price Drop Notification
In Stock Notification
Add to Wish List

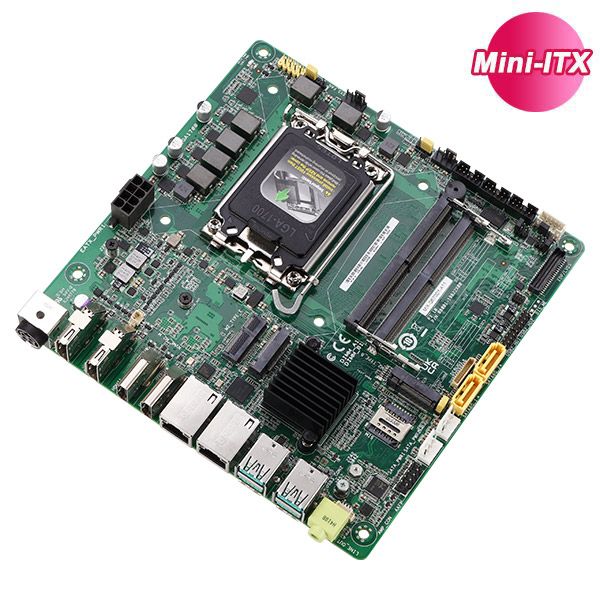

Once again embracing the most advanced Intel® technologies, the new MIX-Q670D1 is a high-performance, DC-powered Mini-ITX motherboard that blends versatile connection options and broad expandability with a low-profile board design. Built to fit into tight spaces without sacrificing key interfaces or limiting CPU performance, the MIX-Q670D1 equips creators with all the tools needed to produce elite solutions.

SYSTEM
PROCESSOR 12th/13th/14th Gen Intel® Core™ Processors (Raptor Lake-S/Alder Lake-S)
CHIPSET Intel® Q670E
MEMORY Dual-Channel DDR5 4800MHz SODIMM x 2 (Non-ECC, Max. 64GB)
I/O CHIPSET NCT6126D
ETHERNET Intel® I219-LM GbE LAN x 1
Intel® I210-AT GbE LAN x 1
AUDIO Realtek® ALC897 with Amp.
TPM Onboard TPM 2.0 IC
EXPANSION SLOT M.2 3042/3052 B-Key x 1 (PCIe [x1], USB 3.2 Gen 1/USB 2.0)
M.2 2230 E-Key x 1 (PCIe [x1], Optional: dual PCIe [x1], USB 2.0)
BIOS 256Mbit Flash ROM, AMI BIOS
H/W MONITOR Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V, Fan Monitor on CPU/Chassis
WATCHDOG TIMER 1~255 steps by software program
SMART FAN CONTROL CPU Fan/ System Fan
WAKE ON LAN/ PXE Yes (WOL / PXE)
POWER STATE S3, S4, S5
GRAPHICS
GRAPHICS CHIPSET Intel® UHD Graphics
GRAPHICS MULTI DISPLAY HDMI x 2 + DP x 2
HDMI x 2 + DP x 1 + LVDS x 1
HDMI x 2 + DP x 1 + eDP x 1
HDMI x 1 + DP x 2 + LVDS x 1
HDMI x 1 + DP x 2 + eDP x 1
VGA —
DVI —
HDMI HDMI 2.0, Up to 4096 x 2160 @60Hz
DISPLAY PORT DP 1.2, Up to 4096 x 2160 @60Hz
LVDS Dual-Channel 18/24 bit LVDS via CH7513, up to 1920 x 1080 @60Hz, colay eDP
EDP Up to 1920 x 1080 @60Hz
BACKLIGHT CONTROL PWM
ENVIRONMENTAL & POWER & ME
BATTERY Lithium battery
POWER REQUIREMENT DC 12V
Power consumption: Peak 330W; Typical 150W
OPERATING TEMPERATURE 32°F ~ 140°F(0 ~ 60°C) (Operational humidity: 60°C @ 90% RH Non-Condensing)
STORAGE TEMPERATURE —
CERTIFICATION CE & FCC
FORM FACTOR Mini-ITX: 6.7" x 6.7" (170mm x 170mm)
WEIGHT 1.1 lb (0.5 Kg)
MTBF (Hours) 368,780
REAR PANEL I/O PORTS
USB USB 3.2 Gen 2 x 4
DISPLAY I/O HDMI x 2, DP x 2
AUDIO I/O Line-out x 1
LAN I/O RJ-45 LAN Port x 2
INTERNAL I/O CONNECTORS
STORAGE SATA III x 2 with SATA Power Connector x 2 (1A)
M.2 2280 M-Key (PCIe [x4]/NVMe) x 1
USB USB 2.0 x 4 via 2x5P Header x 2
Display I/O 40-pin LVDs/eDP connector x 1 with Inverter
Audio I/O HD Audio x 1 (via AAFP Header), Internal Speaker x 1 (2W/4OhmΩ)
Serial Port COM Box Header x 1 (RS-232/422/485)
COM Box Header x 1 (RS-232)
DIO Digital I/O box header x 1
FAN 4-pin CPU Fan connector x 1, 4-pin System Fan connector x 1
OTHERS Front Panel connector x 1, Chassis Intrusion x 1,
Buzzer onboard x 1, CMOS jumper x 1
OS
OS SUPPORT Windows® 10 64-bit, Windows® 11 64-bit
  • Full High I/O Shield
  • SATA Cable
  • SATA Power Cable
  • MIX-Q670D1
