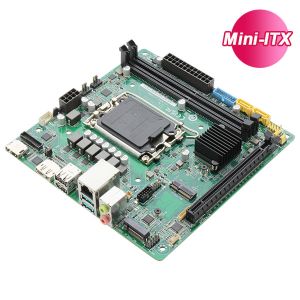

MIX-H610A1
Mini-ITX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor, Max. 65W
US$209.00
Availability:
In stock
Only 15 left
SKU
MIX-H610A1-A10-4L
- 12th/13th/14th Gen Intel® Core™ LGA1700 Processor
- DDR4 DRAM Support, 3200MHz, Max 64GB
- USB 3.2 x 4, USB 2.0 Port x 4
- Intel® Ethernet Connection I219-V x 1, Realtek RTL8111H x 3
- SATA 6Gb/s x 2
- PCIe Gen 3 [x16] x 1
- ATX Power
Mini-ITX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor, Max. 65W
| SYSTEM | |
| PROCESSOR | 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor, Max. 65W |
| CHIPSET | Intel® H610E Chipset |
| MEMORY | Dual-Channel DDR4 3200MHz SODIMM x 2, Max 64GB |
| I/O CHIPSET | NCT6126D |
| ETHERNET | Intel® Ethernet Connection I219-V x 1 Realtek RTL8111H x 3 |
| AUDIO | Realtek® ALC897 with Amp. |
| TPM | TPM2.0 IC on board |
| EXPANSION SLOT | PCIe Gen 3 [x16] x 1, M.2 2232 E-Key x 1 (PCIe [x1]/CNVi/USB) |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 step by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI x 2 + DP x 1, HDMI x 1 + DP x 2, HDMI x 1 + DP x 1 + LVDS x 1, HDMI x 1 + DP x 1 + eDP x 1 |
| VGA | — |
| DVI | — |
| HDMI | HDMI 2.0, up to 3840 x 2160 @60Hz |
| DISPLAY PORT | DP 1.2, up to 3840 x 2160 @60Hz |
| LVDS | 18/24-bit Dual-Channel LVDS, up to 1920 x 1080 @60Hz (co-lay eDP, default LVDS) |
| EDP | eDP, Up to 1920 x 1080 @60Hz |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX; [330 Watt or greater power supply] Voltage/Current(A) requirement:+3.3V/0.05A;+5V/6.07A;+12V/17.3A |
| OPERATING TEMPERATURE | 32°F ~ 140°F(0 ~ 60°C) (Operational humidity: 60°C @ 90% RH Non-Condensing) |
| STORAGE TEMPERATURE | — |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170mm x 170mm) |
| WEIGHT | 357,180 |
| MTBF (Hours) | 1.1 lb (0.5 Kg) |
| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 2 x 2, USB 2.0 x 4 |
| DISPLAY I/O | HDMI 2.0 x 2, DP 1.2 x 2 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | RJ-45 LAN x 4 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA 6Gb/s x 2, M.2 2280 M-Key x 1 |
| USB | USB 3.2 Pin Header x 1 (USB 3.2 Gen 1 x 2) |
| Display I/O | — |
| Audio I/O | AAFP x 1, Speaker x 1 |
| Serial Port | Box Header for COM (RS-232/422/485) x 1, Box Header for COM (RS-232) x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| Power | TBD |
| Others | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS | |
| OS Support | Windows® 10 64-bit, Windows® 11 64bit |
- MIX-H610A1
- I/O Shield
- SATA Cable
