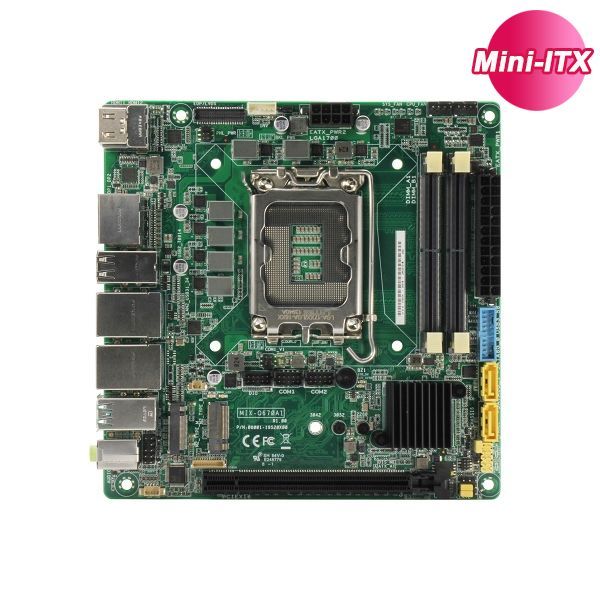

MIX-Q670A1
MIX with 13th & 12th Gen Intel® Core™ Processors (formerly Raptor Lake-S/Alder Lake-S)
- 13th & 12th Gen Intel® Core™ Processors (Raptor Lake-S/Alder Lake-S)
- DDR5 SO-DIMM Support, 4800MHz, Max. 64GB
- HDMI 2.0 x 2 + DP 1.2 x 2
- M.2 2280 M-Key x 1, M.2 3042/3052 B-Key x 1
- USB 3.2 Port x 8, USB 2.0 Port x 4
- Intel GbE LAN x 2
- SATA 6.0 Gb/s x 2
- PCIe Gen 5 [x16] x 1
Adding to AAEON’s extensive Industrial Motherboard lineup, the new MIX-Q670A1 is AAEON’s most powerful and versatile Mini-ITX board yet. AAEON’s first to support both 12th and 13th Generation Intel® Core™ Processors (formerly Alder Lake-S and Raptor Lake-S respectively), the MIX-Q670A1 harnesses up to 24 cores, 32 threads, and a host of peripheral technologies including Intel vPro®, Intel® Thermal Velocity Boost, and Intel® UHD Graphics 770 to power elite IoT applications. Further, the MIX-Q670A1 supports 64GB of dual-channel DDR5 4800MHz system memory alongside a market-leading I/O and display interface to make it the premier foundation for high-performance solutions across numerous industries.
Unprecedented Processing Power
Sporting both 12th and 13th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processors, the MIX-Q670A1 takes advantage of a hybrid architecture combining performance cores for the execution of more demanding tasks; and efficient cores, for streamlined background task management. With up to 24 cores and 32 threads alongside Intel® HT Technology, the MIX-Q670A1 is the most powerful Mini-ITX board AAEON has ever produced. Further, its support for 64GB of dual-channel DDR5 system memory at 4800 MT/s offers a 44% increase in memory speed over previous generations, boosting data transfer rates for real-time data analysis.
Gilt-Edge Connectivity
With 8 USB 3.2 and 4 USB 2.0 front I/O ports, and an internal pin header supporting an additional 2 USB 3.2 ports, the MIX-Q670A1 is the world leader in I/O density on the Mini-ITX form factor. Moreover, two RJ-45 LAN ports accompany two COM ports to provide lightning-fast connectivity to peripheral devices such as cameras and sensors. Combining these features with the MIX-Q670A1’s DDR5 support, PCIe [x16] Gen 5 slot, and improved single and multi-thread processing speed offers enhanced performance for vertical market applications such as smart city, which rely on real-time data transmittance on the edge.
Crystal-Clear 4 x 4K Display
A rich display interface comprised of two HDMI and two DP ports, along with additional support for either LVDS or eDP makes the MIX-Q670A1 capable of four simultaneous 4K displays. With CPU-integrated AI acceleration features such as Intel® Deep Learning Boost and the Intel® Distribution of OpenVINO™ toolkit, the MIX-Q670A1 offers up to 2.81 times the GPU image classification speed of Mini-ITX motherboards powered by previous processor generations. Coupled with the utility of the board’s connector ports and expandability, these attributes make the MIX-Q670A1 a near-limitless solution for optical inspection and image processing applications.
Sub Title | MIX with 13th & 12th Gen Intel® Core™ Processors (formerly Raptor Lake-S/Alder Lake-S) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Spec |
|
SYSTEM
PROCESSOR
13th & 12th Gen Intel® Core™ Processors (Raptor Lake-S/Alder Lake-S)
CHIPSET
Q670E
MEMORY
Dual-Channel DDR5 4800MHz SODIMM x 2, Max. 64GB
I/O CHIPSET
Intel® UHD Graphics
ETHERNET
Intel® GbE LAN 219LM x 1
Intel® GbE LAN 210AT x 1
AUDIO
Realtek® ALC897 with Amp
TPM
Onboard TPM 2.0 IC
EXPANSION SLOT
PCIe Gen 5 [x16] x 1
A10: M.2 3042/3052 B-Key x 1
A11-EK: M.2 2230 E-Key x 1
BIOS
256Mbit Flash ROM, AMI BIOS
H/W MONITOR
Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis
WATCHDOG TIMER
1~255 step by software program
SMART FAN CONTROL
CPU Fan/ Chassis Fan
WAKE ON LAN/ PXE
Yes (WOL / PXE)
POWER STATE
S3, S4, S5
GRAPHICS
GRAPHICS CHIPSET
Intel® UHD Graphics
GRAPHICS MULTI DISPLAY
HDMI x 2 + DP x 2, HDMI x 2 + DP x 1 + LVDS x 1, HDMI x 2 + DP x 1 + eDP x 1,
HDMI x 1 + DP x 2 + LVDS x 1, HDMI x 1 + DP x 2 + eDP x 1
VGA
—
DVI
—
HDMI
Up to 4096 x 2160 @60 Hz (HDMI 2.0)
DISPLAY PORT
Up to 4096 x 2160 @60 Hz
LVDS
Up to 1920 x 1080 @60Hz, Daul Channel 18/24 bit
EDP
UP to 1920x 1080 @60Hz (via CH7513) co-layout LVDS
BACKLIGHT CONTROL
PWM
ENVIRONMENTAL & POWER & ME
BATTERY
Lithium battery
POWER REQUIREMENT
ATX
OPERATING TEMPERATURE
32°F ~140°F (0°C ~ 60°C)
STORAGE TEMPERATURE
-40°F ~185°F (-40°C ~85°C)
OPERATING HUMIDITY
0%~90%RH, non-condensing
CERTIFICATION
CE & FCC
FORM FACTOR
Mini-ITX: 6.7” x 6.7” (170mm x 170mm)
WEIGHT
1.1 lb (0.5 Kg)
REAR PANEL I/O PORTS
USB
USB 3.2 Gen 2 x 8 + USB 2.0 x 4
DISPLAY I/O
HDMI x 2, DP x 2
AUDIO I/O
Mic-in x 1, Line-out x 1
LAN I/O
LAN (RJ-45) port x 2
Others
SIM Socket x 1
INTERNAL I/O CONNECTORS
STORAGE
SATA III x 2 (6.0Gb/s), M.2 2280 M-Key
USB
USB 3.0 Pin Header x 1 (Supports additional USB 3.2 Gen 1 x 2)
Display I/O
—
Audio I/O
AAFP x 1, Speaker x 1
Serial Port
Box Header for COM x 1 (RS-232/422/485)
Box Header for COM x 1 (RS-232)
DIO
Digital I/O box header x 1
FAN
4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1
OTHERS
Front Panel connector x 1, Chassis Intrusion x 1
Buzzer onboard x 1, CMOS jumper x 1
OS
OS SUPPORT
Windows® 10 64-bit, Windows® 11 64-bit
SYSTEM | |
PROCESSOR | 13th & 12th Gen Intel® Core™ Processors (Raptor Lake-S/Alder Lake-S) |
CHIPSET | Q670E |
MEMORY | Dual-Channel DDR5 4800MHz SODIMM x 2, Max. 64GB |
I/O CHIPSET | Intel® UHD Graphics |
ETHERNET | Intel® GbE LAN 219LM x 1 Intel® GbE LAN 210AT x 1 |
AUDIO | Realtek® ALC897 with Amp |
TPM | Onboard TPM 2.0 IC |
EXPANSION SLOT | PCIe Gen 5 [x16] x 1 A10: M.2 3042/3052 B-Key x 1 A11-EK: M.2 2230 E-Key x 1 |
BIOS | 256Mbit Flash ROM, AMI BIOS |
H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
WATCHDOG TIMER | 1~255 step by software program |
SMART FAN CONTROL | CPU Fan/ Chassis Fan |
WAKE ON LAN/ PXE | Yes (WOL / PXE) |
POWER STATE | S3, S4, S5 |
GRAPHICS | |
GRAPHICS CHIPSET | Intel® UHD Graphics |
GRAPHICS MULTI DISPLAY | HDMI x 2 + DP x 2, HDMI x 2 + DP x 1 + LVDS x 1, HDMI x 2 + DP x 1 + eDP x 1, HDMI x 1 + DP x 2 + LVDS x 1, HDMI x 1 + DP x 2 + eDP x 1 |
VGA | — |
DVI | — |
HDMI | Up to 4096 x 2160 @60 Hz (HDMI 2.0) |
DISPLAY PORT | Up to 4096 x 2160 @60 Hz |
LVDS | Up to 1920 x 1080 @60Hz, Daul Channel 18/24 bit |
EDP | UP to 1920x 1080 @60Hz (via CH7513) co-layout LVDS |
BACKLIGHT CONTROL | PWM |
ENVIRONMENTAL & POWER & ME | |
BATTERY | Lithium battery |
POWER REQUIREMENT | ATX |
OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
OPERATING HUMIDITY | 0%~90%RH, non-condensing |
CERTIFICATION | CE & FCC |
FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
WEIGHT | 1.1 lb (0.5 Kg) |
REAR PANEL I/O PORTS | |
USB | USB 3.2 Gen 2 x 8 + USB 2.0 x 4 |
DISPLAY I/O | HDMI x 2, DP x 2 |
AUDIO I/O | Mic-in x 1, Line-out x 1 |
LAN I/O | LAN (RJ-45) port x 2 |
Others | SIM Socket x 1 |
INTERNAL I/O CONNECTORS | |
STORAGE | SATA III x 2 (6.0Gb/s), M.2 2280 M-Key |
USB | USB 3.0 Pin Header x 1 (Supports additional USB 3.2 Gen 1 x 2) |
Display I/O | — |
Audio I/O | AAFP x 1, Speaker x 1 |
Serial Port | Box Header for COM x 1 (RS-232/422/485) Box Header for COM x 1 (RS-232) |
DIO | Digital I/O box header x 1 |
FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
OTHERS | Front Panel connector x 1, Chassis Intrusion x 1 Buzzer onboard x 1, CMOS jumper x 1 |
OS | |
OS SUPPORT | Windows® 10 64-bit, Windows® 11 64-bit |
- SATA Cable
- I/O Shield
- MIX-Q670A1
- SATA Cable
- I/O Shield
- MIX-Q670A1
