MIX-ALPSD1

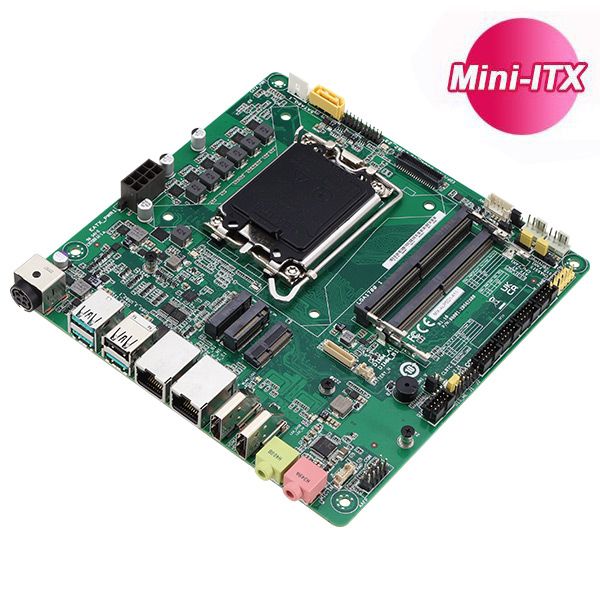

Mini-ITX with 12th Gen Intel® Core™ Processors for IoT Edge (formerly Alder Lake PS), FCLGA1700 Socket, Max TDP: 45W
US$146.00
Availability:
In stock
Only 10 left
SKU
MIX-ALPSD1-A10
- Intel® Alder Lake-PS Core™ Processors, up to 45W, FCLGA1700 Socket
- DDR5 4800MHz SODIMM, Max. 64GB
- HDMI 2.0 x 2, LVDS/eDP x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1 (PCIe [x1] x 2), M.2 3042 B-Key x 1
- USB 3.2 Port x 3, USB 2.0 Port x 5
- Realtek GbE LAN x 2
- RS-232/422/485 Header x 1; RS-232 Header x 3
- SATA III x 1
- DC 12V input
Note: This product is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.
The new MIX-ALPSD1 unlocks the unique hybrid operation of the 12th Generation Intel® Core™ Processors for IoT Edge platform (formerly Alder Lake PS ), combining the power and efficiency of the generation's mobile processor line with the flexibility of its desktop range. Discreet, versatile, and fanless, the MIX-ALPSD1 seamlessly integrates into applications requiring quiet and low-power operation, such as kiosks . It also offers value through sophisticated functionality, including support for multiple simultaneous 4K displays and fast communication interfaces for external devices.
| SYSTEM | |
| PROCESSOR | i7-1255UL/i7-12700HL/i5-1235UL/i5-12500HL/i3-1215UL/i3-12300HL/Celeron 7305L |
| CHIPSET | N |
| MEMORY | Single-Channel DDR5 4800 MHz SODIMM x 2 (Non-ECC, Max. 64GB) |
| I/O CHIPSET | NCT6126D |
| ETHERNET | Realtek® RTL8111H-CG x 2 |
| AUDIO | Realtek® ALC897 with Amp. |
| TPM | TPM2.0 |
| EXPANSION SLOT | M.2 3042 B-Key x 1 (PCIe [x1]) M.2 2230 E-Key x 1 (PCIe [x1] x 2) |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI x 2 + eDP x 1, HDMI x 2 + LVDS x 1 |
| VGA | — |
| DVI | — |
| HDMI | HDMI 2.0, Up to 4096 x 2160 @60Hz |
| DISPLAY PORT | — |
| LVDS | Dual-Channel 18/24 bit LVDS via CH7513, up to 1920 x 1080 @60Hz, colay eDP |
| EDP | Up to 4096 x 2160 @ 60 Hz |
| BACKLIGHT CONTROL | PWM |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | DC 12V |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC class A |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 2 x 3; USB 2.0 x 1 |
| DISPLAY I/O | HDMI2.0 x 2 |
| AUDIO I/O | Line-out x 1, MIC-in x 1 |
| LAN I/O | RJ-45 LAN Port x 2 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA III x 1 with SATA Power Connector x 1(1A) M.2 2280 M-Key x 1 (PCIe [x4]/NVMe) |
| USB | USB 2.0 x 4 via 2x5P Headers x 2 |
| Display I/O | 40-pin LVDs/eDP connector x 1 with Inverter |
| Audio I/O | HD Audio x 1 (via AAFP Header), Internal Speaker x 1 (2W/4OhmΩ) |
| Serial Port | COM Box Header x 1 (RS-232/422/485) COM Box Header x 3 (RS-232) |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| OTHERS | Clear CMOS Jumper x 1 Front Panel Connector x 1 Chassis Intrusion x 1 Buzzer Onboard x 1 ATX/AT Mode Select x 1 ME Disable x 1 eDP/LVDS Tcon IC Voltage Select x 1 eDP/LVDS Panel Backlight Voltage Select x 1 SATA PWR Connector x 1 LVDS Inverter Connector x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit, Windows® 11 64bit |
- MIX-ALPSD1
- I/O Shield
- SATA Cable
- SATA Power Cable
