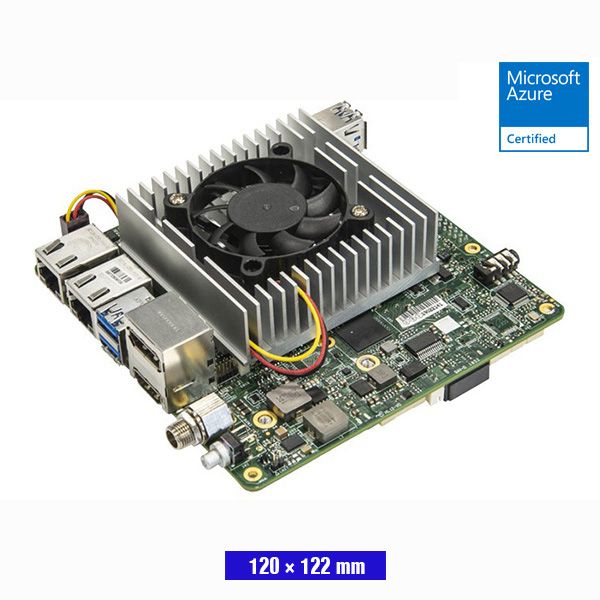

UP Xtreme

The UP Xtreme is the third generation of UP Board products, powered by 8th Generation Intel® Core™ (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel® graphics solution, the UP Xtreme is capable of 4K video output, and features a built-in audio jack as standard.

The UP Xtreme brings industrial grade features to the UP line of products, such as 12~60V wide voltage power input, two RS232/422/485 10-pin headers, and time sensitive networking (TSN) to facilitate communication in a connected factory. The UP Xtreme is also built to perform in temperatures ranging from 0°C up to 60°C.

The UP Xtreme offers flexible expandability with both a 40-pin and 100-pin connector, as well as m.2 2230 and 2280 slots, and mPCIe slots. The UP Xtreme can be expanded with wireless modules for Wi-Fi, Bluetooth, 4G and LTE. The UP Xtreme is compatible with other UP Board modules, including the AI Core X, AI Core XM 2280, and Vision Plus X, all featuring the Intel® Movidius™ Myriad™ X. With each module installed, the UP Xtreme supports up to six Intel® Movidius™ Myriad™ X modules, providing high-performance AI processing for edge computing applications.

Users can also get the UP Xtreme in a pre-built system, the UP Xtreme Edge (UPX Edge). The rugged UPX Edge can operate in conditions as cold as -20°C up to 70°C with the AI Core XM 2280 modules (two Intel® Movidius™ Myriad™ X VPUs).
