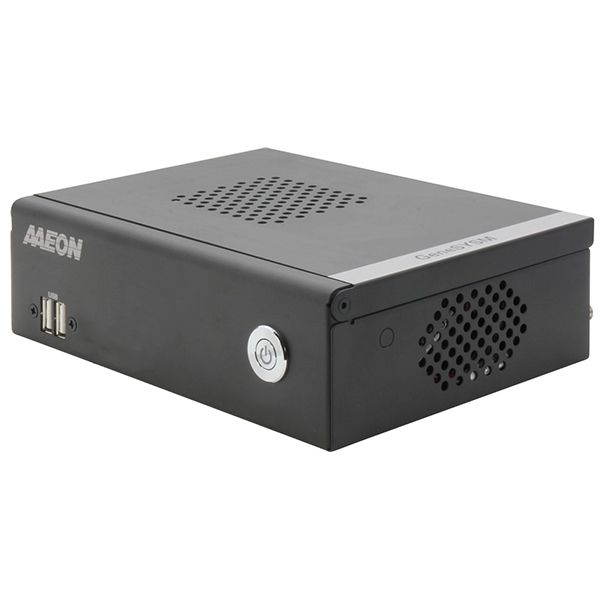

GENESYSM-EHL5
3.5" SubCompact Board System with Intel Atom x6425E and Celeron N6210/ J6412 Processors
As low as
US$405.00
Availability:
In stock
Inventory: please select an item
SKU
GENESYSM-EHL5
3.5" SubCompact Board System with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Processors
GENESYSM-EHL5-A10-0001
| SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board System |
| CPU | Intel® Celeron® Processor N6210 (2C/2T, 1.20 GHz, 6.5W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | DDR4 up to 3200, Single Channel SODIMM x 1, Max.32GB, Non-ECC *IBECC supported by selected SOC |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 7.00" x 5.28" x 2.08" (178mm x 134.1mm x 53mm), Weight 1 kg |
| OS Support | Windows 10 (64bit) Linux Ubuntu 20.04.3(IOT)/Kernel 5.13 |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® AtomTM x6425E, DDR4 32GB, 3.26A@+12V(TYPICAL) Intel® AtomTM x6425E, DDR4 32GB, 3.42A@+12V(Max) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LVDS/eDP | — |
| Display Interface | HDMI 2.0 x 1, up to 4K@60Hz VGA x 1, up to 2560 x 1440 |
| Multiple Display | Up to 2 Simultaneous Displays |
| AUDIO | |
| CODEC | — |
| AUDIO INTERFACE | — |
| SPEAKER | — |
| EXTERNAL I/O | |
| ETHERNET | Intel® i210 1GbE, RJ45 x 2 |
| USB | USB3.2 Gen 2 x 2 USB2.0 x 2 |
| SERIAL PORT | COM1 (RS232/422/485) COM2 (RS232/422/485,supports 5V/12V/RI ) |
| VIDEO | HDMI 2.0 x 1 VGA x 1 |
| INTERNAL I/O | |
| USB | — |
| SERIAL PORT | — |
| VIDEO | — |
| SATA | SATA 6.0Gbps x 1 +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| DIO/GPIO | GPIO 16-bit (Optional: with E-Base) |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| TOUCH | — |
| FAN | 4pins Smart Fan x 1 |
| SIM | Nano SIM x 1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| OTHERS | — |
| EXPANSION | |
| MINI PCIE/MSATA | — |
| M.2 | M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 2242 B-Key x 1 (PCIe 3.0 [x2]/SATA), Default: PCIe [x2] M.2 2280 B-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 3052 B-Key x 1 (USB3.2 Gen2) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMP | 32°F ~ 122°F (0°C ~ 50°C) with 0.5 m/s air flow |
| STORAGE TEMP | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 335,427 |
| EMC | CE/FCC Class A |
GENESYSM-EHL5-A10-0002
| SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board System |
| CPU | Intel® Celeron® Processor J6412 (4C/4T, 2.00 GHz, 10W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | DDR4 up to 3200, Single Channel SODIMM x 1, Max.32GB, Non-ECC *IBECC supported by selected SOC |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 7.00" x 5.28" x 2.08" (178mm x 134.1mm x 53mm), Weight 1 kg |
| OS Support | Windows 10 (64bit) Linux Ubuntu 20.04.3(IOT)/Kernel 5.13 |
| POWER | |
| POWER REQUIREMENT | +9-36V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® AtomTM x6425E, DDR4 32GB, 3.26A@+12V(TYPICAL) Intel® AtomTM x6425E, DDR4 32GB, 3.42A@+12V(Max) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LVDS/eDP | — |
| Display Interface | HDMI 2.0 x 1, up to 4K@60Hz VGA x 1, up to 2560 x 1440 |
| Multiple Display | Up to 2 Simultaneous Displays |
| AUDIO | |
| CODEC | — |
| AUDIO INTERFACE | — |
| SPEAKER | — |
| EXTERNAL I/O | |
| ETHERNET | Intel® i210 1GbE, RJ45 x 2 |
| USB | USB3.2 Gen 2 x 2 USB2.0 x 2 |
| SERIAL PORT | COM1 (RS232/422/485) COM2 (RS232/422/485,supports 5V/12V/RI ) |
| VIDEO | HDMI 2.0 x 1 VGA x 1 |
| INTERNAL I/O | |
| USB | — |
| SERIAL PORT | — |
| VIDEO | — |
| SATA | SATA 6.0Gbps x 1 +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| DIO/GPIO | GPIO 16-bit (Optional: with E-Base) |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| TOUCH | — |
| FAN | 4pins Smart Fan x 1 |
| SIM | Nano SIM x 1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| OTHERS | — |
| EXPANSION | |
| MINI PCIE/MSATA | — |
| M.2 | M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 2242 B-Key x 1 (PCIe 3.0 [x2]/SATA), Default: PCIe [x2] M.2 2280 B-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 3052 B-Key x 1 (USB3.2 Gen2) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMP | 32°F ~ 122°F (0°C ~ 50°C) with 0.5 m/s air flow |
| STORAGE TEMP | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 335,427 |
| EMC | CE/FCC Class A |
GENESYSM-EHL5-A10-0003
| SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board System |
| CPU | Intel Atom® x6425E (4C/4T, 2.00 GHz, 12W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | DDR4 up to 3200, Single Channel SODIMM x 1, Max.32GB, Non-ECC *IBECC supported by selected SOC |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 7.00" x 5.28" x 2.08" (178mm x 134.1mm x 53mm), Weight 1 kg |
| OS Support | Windows 10 (64bit) Linux Ubuntu 20.04.3(IOT)/Kernel 5.13 |
| POWER | |
| POWER REQUIREMENT | +9-36V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® AtomTM x6425E, DDR4 32GB, 3.26A@+12V(TYPICAL) Intel® AtomTM x6425E, DDR4 32GB, 3.42A@+12V(Max) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LVDS/eDP | — |
| Display Interface | HDMI 2.0 x 1, up to 4K@60Hz VGA x 1, up to 2560 x 1440 |
| Multiple Display | Up to 2 Simultaneous Displays |
| AUDIO | |
| CODEC | — |
| AUDIO INTERFACE | — |
| SPEAKER | — |
| EXTERNAL I/O | |
| ETHERNET | Intel® i210 1GbE, RJ45 x 2 |
| USB | USB3.2 Gen 2 x 2 USB2.0 x 2 |
| SERIAL PORT | COM1 (RS232/422/485) COM2 (RS232/422/485,supports 5V/12V/RI ) |
| VIDEO | HDMI 2.0 x 1 VGA x 1 |
| INTERNAL I/O | |
| USB | — |
| SERIAL PORT | — |
| VIDEO | — |
| SATA | SATA 6.0Gbps x 1 +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| DIO/GPIO | GPIO 16-bit (Optional: with E-Base) |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| TOUCH | — |
| FAN | 4pins Smart Fan x 1 |
| SIM | Nano SIM x 1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| OTHERS | eMMC5.1 32GB |
| EXPANSION | |
| MINI PCIE/MSATA | — |
| M.2 | M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 2242 B-Key x 1 (PCIe 3.0 [x2]/SATA), Default: PCIe [x2] M.2 2280 B-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 3052 B-Key x 1 (USB3.2 Gen2) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMP | 32°F ~ 122°F (0°C ~ 50°C) with 0.5 m/s air flow |
| STORAGE TEMP | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 335,427 |
| EMC | CE/FCC Class A |
- GENESYSM-EHL5 x 1
- Heatsink (TH2EHL5010) x 1
- Thermal Pad (TH5EHL5010) x 4
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
| *If you have any other accessory needs, please contact us. | |
