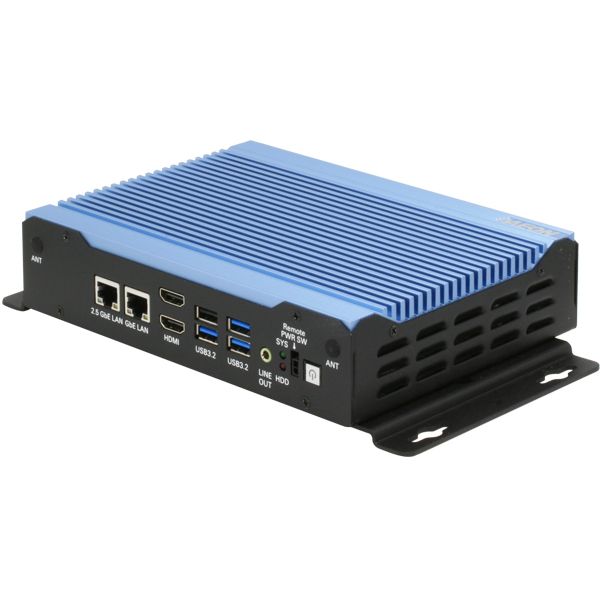

BOXER-6643-TGU (i5)
Fanless Embedded Box PC with 11th Generation Intel® i5-1145G7E Processor
- Extreme Computing Power with Intel® i5-1145G7E SoC Processor
- DDR4 slot x2, up to 64GB
- TPM 2.0 onboard
- Support High Speed NVMe storage (M.2 2280)
- GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
- Support M.2 3052 B Key for 5G module
- Wide Range 9-36V DC input
- Wide Range -20~60 °C Operating Temperature
Note: This system is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.
AAEON is bringing the performance of the 11th Generation Intel® Core™ U processors (formerly Tiger Lake) to power industrial embedded computing with rugged, compact platforms ready to deploy in tough environments. The BOXER-6643-TGU delivers a flexible, compact platform with support for features including 5G cellular modules, alongside wide operating temperatures from -20°C to 60°C. The system also offers easy maintenance and upgradability thanks to easy access panels, as well as storage flexibility with support for mSATA, SATA III, and NVMe.
Note: This barebone system may not include memory, storage or even a processor. Please check the product specifications before making your purchase.
| Sub Title | Fanless Embedded Box PC with 11th Generation Intel® i5-1145G7E Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Spec |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
Write Your Own Review
SYSTEM
CPU
Intel® Core™ i5-1145G7E
CHIPSET
Intel® SoC
SYSTEM MEMORY
DDR4 3200MHz SO-DIMM x 2, max 64GB
DISPLAY INTERFACE
HDMI 2.0 x 2
STORAGE DEVICE
M.2 2280 M Key NVMe Slot x1 (PCIex4)
2.5" SATA Drive Bay x1
ETHERNET
RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1)
I/O
HDMI 2.0 x 2
RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1)
USB Type-A x3 for USB3.2 Gen2
USB Type-A x1 for USB 2.0
DB-9 x 2 for RS-232/422/485
DB15 x1 Male for Digital I/O 8-channel
Line out x 1
3 pin 9~36V Power Input x 1
Power Button with LED x 1
EXPANSION
M.2 3052 B Key x 1 (for 5G module)
Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB)
SIM Slot x 1
INDICATOR
Power / System LED
OS SUPPORT
Windows® 10 IoT 64-bit
Windows® 11 Pro 64-bit
Linux Ubuntu 20.04.2
POWER SUPPLY
POWER REQUIREMENT
DC-in 9-36V x1 for 3-pin Terminal Block
MECHANICAL
MOUNTING
Wallmount
DIMENSIONS (W X H X D)
9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket
7.87” x 5.62” x 1.75” (200 x 143 x 44.5) w/o bracket
GROSS WEIGHT
4.4 lb (2.0 kg)
NET WEIGHT
3.3 lb (1.5 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE
-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM)
STORAGE TEMPERATURE
-40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY
5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION
3 Grms/ 5 ~ 500Hz/ operation (with SSD)
ANTI-SHOCK
50G, IEC 68-2-27, half sine, 11 ms duration (with SSD)
CERTIFICATION
CE/FCC class A
| SYSTEM | |
| CPU | Intel® Core™ i5-1145G7E |
| CHIPSET | Intel® SoC |
| SYSTEM MEMORY | DDR4 3200MHz SO-DIMM x 2, max 64GB |
| DISPLAY INTERFACE | HDMI 2.0 x 2 |
| STORAGE DEVICE | M.2 2280 M Key NVMe Slot x1 (PCIex4) 2.5" SATA Drive Bay x1 |
| ETHERNET | RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1) |
| I/O | HDMI 2.0 x 2 RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1) USB Type-A x3 for USB3.2 Gen2 USB Type-A x1 for USB 2.0 DB-9 x 2 for RS-232/422/485 DB15 x1 Male for Digital I/O 8-channel Line out x 1 3 pin 9~36V Power Input x 1 Power Button with LED x 1 |
| EXPANSION | M.2 3052 B Key x 1 (for 5G module) Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB) SIM Slot x 1 |
| INDICATOR | Power / System LED |
| OS SUPPORT | Windows® 10 IoT 64-bit Windows® 11 Pro 64-bit Linux Ubuntu 20.04.2 |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC-in 9-36V x1 for 3-pin Terminal Block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket 7.87” x 5.62” x 1.75” (200 x 143 x 44.5) w/o bracket |
| GROSS WEIGHT | 4.4 lb (2.0 kg) |
| NET WEIGHT | 3.3 lb (1.5 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| ANTI-SHOCK | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| CERTIFICATION | CE/FCC class A |
- Wallmount Bracket x 2
- 3 Pin DC-In Power Connector x 1
- Screw Package x 1
- BOXER-6643-TGU x 1
- Wallmount Bracket x 2
- 3 Pin DC-In Power Connector x 1
- Screw Package x 1
- BOXER-6643-TGU x 1
【Optional Accessories】
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
