MXM-ACMA-PUC

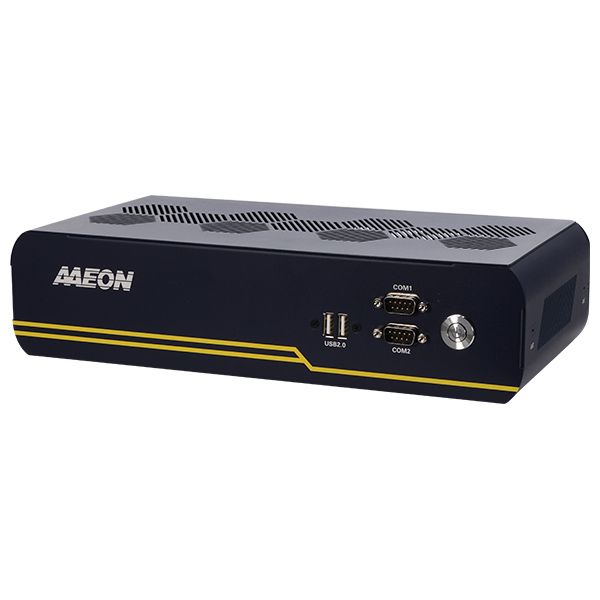

System Box with 12th/13th Generation Intel Core Processor & MXM 3.1 Type A Intel® Arc™ A370E/Intel® Arc™ A350E GPU
As low as
US$1,983.00
Availability:
In stock
Inventory: please select an item
SKU
MXM-ACMA-PUC
System Box with 12th/13th Generation Intel Core Processor & MXM 3.1 Type A Intel® Arc™ A370E/Intel® Arc™ A350E GPU
MXM-ACMA-PUC-A10-0003
| SYSTEM | |
| Form Factor | MXM System |
| CPU | 12th/13th Generation Intel® Core™ Processor, up to 35W Intel ® Core ™ i3-13100TE (with Q670E) |
| Chipset | Intel® Q670E Chipset |
| Memory Type | Dual Channel DDR5 4800 SODIMM x 2 (8GB x 2) |
| BIOS | UEFI |
| Wake On Lan | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| Dimension | 310mm x 160mm x 75mm |
| OS Support | Windows 10 (64bit) Ubuntu 24.04/kernel 6.8 |
| Power | |
| Power Requirement | +19V to +24V |
| Power Supply Type | AT/ATX |
| Connector | 3Pin Phoenix Connector |
| Power Consumption | Intel ® Core ™ i7-13700TE, DDR5 32GB x 2, Intel® Arc™ A370E, 3.54A @22.9V, 80.83W (Typical) Intel ® Core ™ i7-13700TE, DDR5 32GB x 2, Intel® Arc™ A370E, 7.48A @23.1V, 167.71W (Max) |
| Display | |
| Controller | CPU Graphic Controller:Intel® UHD Graphics 730 (i3 SKU) MXM-ACMA Graphic Module: Intel® Arc™ A350E Graphics |
| LVDS/eDP | — |
| Display Interface | HDMI 2.0 x 1, up to 3840 x 2160 @60Hz (from Main Board) DP++ 1.4 x 4 (from MXM Module) |
| Multiple Display | Up to 1 Simultaneous Displays from Main Board Up to 4 Simultaneous Displays from MXM-ACMA |
| External I/O | |
| Ethernet | Intel® Ethernet Controller I226-LM, 2.5GbE RJ-45 x 1 Intel® Ethernet Connection I219-LM, GbE RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 , USB 2.0 x 2 |
| Serial Port | COM 1 ~ COM 2 (RS-232/422/485, RI as default, 5V/12V selected by BOM change) |
| Video | HDMI 2.0 x 1, up to 3840 x 2160 @60Hz (from Main Board) DP++1.4 x 4 (from MXM Module) up to 1920 x 1080 |
| Internal I/O | |
| SATA | SATA 6Gb/s x 2, +5V SATA Power Connector x 2 |
| Fan | 4-Pin Smart Fan (CPU) x 1, 3-Pin Fan (MXM-ACMA) x 1, System Fan x 1 |
| SIM | Nano SIM x 1 |
| Front Panel | Power Button, Power LED |
| Expansion | |
| Mini PCI-E/mSATA | — |
| M.2 | M.2 3052 B-Key x 1 (PCIe 3.0 [x2] + USB 3.2 + USB 2.0) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0) |
| Others | MXM 3.1 Type A Module |
| Environment & Certification | |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) with 0.7m/sec airflow |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 823,430 Hours |
| EMC | CE/FCC Class A |
MXM-ACMA-PUC-A10-0001
| SYSTEM | |
| Form Factor | MXM System |
| CPU | 12th/13th Generation Intel® Core™ Processor, up to 35W Intel ® Core ™ i7-13700TE (with Q670E) |
| Chipset | Intel® Q670E Chipset |
| Memory Type | Dual Channel DDR5 4800 SODIMM x 2 (8GB x 2) |
| BIOS | UEFI |
| Wake On Lan | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| Dimension | 310mm x 160mm x 75mm |
| OS Support | Windows 10 (64bit) Ubuntu 24.04/kernel 6.8 |
| Power | |
| Power Requirement | +19V to +24V |
| Power Supply Type | AT/ATX |
| Connector | 3Pin Phoenix Connector |
| Power Consumption | Intel ® Core ™ i7-13700TE, DDR5 32GB x 2, Intel® Arc™ A370E, 3.54A @22.9V, 80.83W (Typical) Intel ® Core ™ i7-13700TE, DDR5 32GB x 2, Intel® Arc™ A370E, 7.48A @23.1V, 167.71W (Max) |
| Display | |
| Controller | CPU Graphic Controller:Intel® UHD Graphics 770 (i5 SKU and above) MXM-ACMA Graphic Module: Intel® Arc™ A370E |
| LVDS/eDP | — |
| Display Interface | HDMI 2.0 x 1, up to 3840 x 2160 @60Hz (from Main Board) DP++ 1.4 x 4 (from MXM Module) |
| Multiple Display | Up to 1 Simultaneous Displays from Main Board Up to 4 Simultaneous Displays from MXM-ACMA |
| External I/O | |
| Ethernet | Intel® Ethernet Controller I226-LM, 2.5GbE RJ-45 x 3 Intel® Ethernet Connection I219-LM, GbE RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 , USB 2.0 x 2 |
| Serial Port | COM 1 ~ COM 2 (RS-232/422/485, RI as default, 5V/12V selected by BOM change) |
| Video | HDMI 2.0 x 1, up to 3840 x 2160 @60Hz (from Main Board) DP++1.4 x 4 (from MXM Module) up to 1920 x 1080 |
| Internal I/O | |
| SATA | SATA 6Gb/s x 2, +5V SATA Power Connector x 2 |
| Fan | 4-Pin Smart Fan (CPU) x 1, 3-Pin Fan (MXM-ACMA) x 1, System Fan x 1 |
| SIM | Nano SIM x 1 |
| Front Panel | Power Button, Power LED |
| Expansion | |
| Mini PCI-E/mSATA | — |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4] x 1) M.2 3052 B-Key x 1 (PCIe 3.0 [x2] + USB 3.2 + USB 2.0) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0) |
| Others | MXM 3.1 Type A Module |
| Environment & Certification | |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) with 0.7m/sec airflow |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 823,430 Hours |
| EMC | CE/FCC Class A |
- MXM-ACMA-PUC
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
| *If you have any other accessory needs, please contact us. | |
