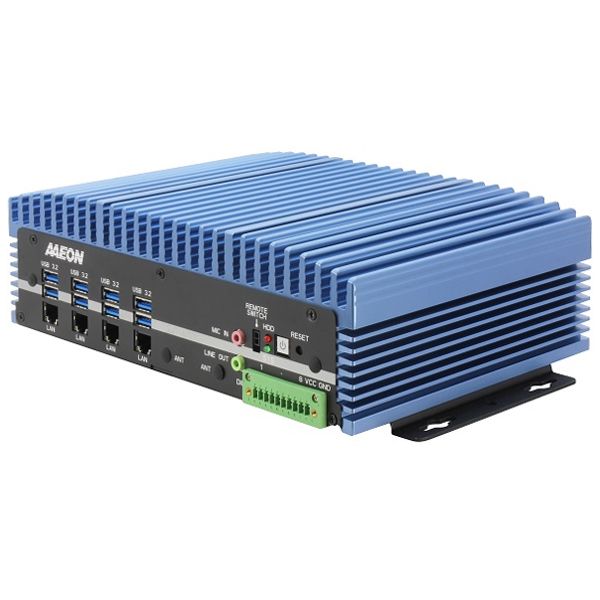

BOXER-6645-ADS

Fanless Embedded Box PC with Socket Type 12th/13th Gen Intel Core Processors
Regular Price US$833.00 As low as US$641.00
Availability: In stock
Inventory: please select an item
SKU
BOXER-6645-ADS

  • 12th/13th Gen Intel® Core™ Desktop Processors
  • Built-in high performance Intel® UHD Graphic Engine
  • Dual-Channel DDR5 SODIMM, Max. 64GB
  • Four Independent Displays
  • SuperSpeed+ USB 3.2 Gen 2 (10Gbps) x 8
  • M.2 3052 B-Key for 5G Module
  • Quadruple LAN (GbE x 3, 2.5GbE x 1)
  • Onboard TPM 2.0
  • Hailo-8™ M.2 2280 AI Accelerator Module Support (Optional)

Note: This system is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.

The BOXER-6645-ADS contains exceptional processing capabilities of up to 16 cores and 24 threads with 12th Generation Intel® Core™ i3/i5/i7/i9 Processor platforms, providing limitless potential for applications that demand high-performance computing, alongside a rich I/O featuring four independent display interfaces (for A2 model, A1 model supports three independent display), and multiple LAN ports within a rugged, fanless chassis.

A fanless chassis houses the product's 65W CPU, which coupled with an operating temperature range of -4 F ~140°F (-20°C ~ 60°C) makes the BOXER-6645-ADS exceptionally durable. Adding to this are its wide 12~24V power input range, anti-shock, and anti-vibration features, which allow for continuous operation in the most extreme deployment environments.

The BOXER-6645-ADS is the most well-equipped embedded box PC available, with up to eight 10Gbps USB 3.2 Gen 2 slots for high-speed peripherals, four LAN ports for camera and sensor connectivity, and four independent display outputs (for A2 model), making the BOXER-6645-ADS conducive to applications such as traffic management control rooms. Additionally, it is the only PC of its kind with M.2 expansion capability, housing M.2 2230 and M.2 2252 slots to facilitate both Wi-Fi and 5G modules.

Alongside exceptional processing power, the BOXER-6645-ADS comes with a tapestry of integrated peripheral technologies, ranging from Intel® DL Boost to Intel® Iris® Xe Graphics to enable elite AI inferencing performance for smart city and Industry 4.0 solutions.

Hosting a dual-channel SODIMM slot supporting DDR5 4800MHz, the BOXER-6645-ADS is equipped with 64GB system memory, which offers a 50% increase in bandwidth, significantly boosting data rate transfer speed. Combined with the power of 12th Generation Intel Core processors, this enables real-time edge-server communication for IoT Gateway use.

Note: This barebone system may not include memory, storage or even a processor. Please check the product specifications before making your purchase.

BOXER-6645-ADS-A2-1110
SYSTEM
CPU --
CPU Support 13th Generation Intel® Core™ Processors:
Intel® Core™ i9-13900TE, Intel® Core™ i9-13900E,
Intel® Core™ i7-13700TE, Intel® Core™ i7-13700E,
Intel® Core™ i5-13500TE, Intel® Core™ i5-13500E,
Intel® Core™ i3-13100TE, Intel® Core™ i3-13100E,

12th Generation Intel® Core™/Celeron® Processors:
Intel® Core™ i9-12900E, Intel® Core™ i7-12700TE,
Intel® Core™ i7-12700E, Intel® Core™ i5-12500TE,
Intel® Core™ i5-12500E, Intel® Core™ i3-12100TE,
Intel® Core™ i3-12100E, Intel® Celeron® Processor G6900TE,
Intel® Celeron® Processor G6900E
CHIPSET Intel Q670E
SYSTEM MEMORY DDR5 4800MHz SODIMM x 2, up to 64GB
DISPLAY INTERFACE HDMI 1.4b (Type-A) x 2
DP 1.4a x 2
*A2 model supports four simultaneous display outputs
STORAGE DEVICE 2.5” SATA 6Gb/s Drive Bay x 2 (A2 SKU supports RAID 0, 1)
M.2 2280 M-Key x 1 (NVMe, extra heatsink required)
ETHERNET Intel® I210AT, 10/100/1000 Base-TX x 2
Intel® I219LM, 10/100/1000 Base-TX x 1
Intel® I226LM, 2.5GbE Base-TX x 1
I/O USB 3.2 Gen2 10Gbps x 8
Audio x 1 (MIC-in, Line-out)
DB-9 x 6 for RS-232/422/485
SMA Antenna Hole x6
DIO x 8
EXPANSION M.2 2230 E-Key x 1 for WiFi module
M.2 3052 B-Key x 1 for 4G / 5G module
INDICATOR System LED x 1
HDD LED x 1
OS SUPPORT Windows® 10 IoT Enterprise 64-bit
Windows® 11 PRO 64-bit
Linux Ubuntu 20.04 (Kernel 15.5 or above)
POWER SUPPLY
POWER REQUIREMENT 3-pin DC Input 12~24V
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 10.39" x 3.8" x 7.33" (264mm x 80.92mm x 186.2mm)
GROSS WEIGHT 11.7 lb (5.3 kg)
NET WEIGHT 9.5 lb (4.3 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~122°F (-20°C ~ 50°C), IEC68-2 with 0.5 m/s AirFlow,
with wide temperature Memory / Storage (TDP 65W CPU)
-4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow,
with wide temperature Memory (Max. 32GB)/ Storage (TDP 35W CPU)
STORAGE TEMPERATURE -40 °F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5 ~ 500Hz/ operation – SSD
1 Grms/ 5 ~ 500Hz/ operation – HDD
ANTI-SHOCK 50G, IEC68-2-27, half sine, 11ms duration (with SSD)
CERTIFICATION CE/FCC class A
BOXER-6645-ADS-A1-1010
SYSTEM
CPU --
CPU Support 13th Generation Intel® Core™ Processors:
Intel® Core™ i9-13900TE, Intel® Core™ i9-13900E,
Intel® Core™ i7-13700TE, Intel® Core™ i7-13700E,
Intel® Core™ i5-13500TE, Intel® Core™ i5-13500E,
Intel® Core™ i3-13100TE, Intel® Core™ i3-13100E,

12th Generation Intel® Core™/Celeron® Processors:
Intel® Core™ i9-12900E, Intel® Core™ i7-12700TE,
Intel® Core™ i7-12700E, Intel® Core™ i5-12500TE,
Intel® Core™ i5-12500E, Intel® Core™ i3-12100TE,
Intel® Core™ i3-12100E, Intel® Celeron® Processor G6900TE,
Intel® Celeron® Processor G6900E
CHIPSET Intel H610E
SYSTEM MEMORY DDR5 4800MHz SODIMM x 2, up to 64GB
DISPLAY INTERFACE HDMI 1.4b (Type-A) x 2
DP 1.4a x 2
*A1 model supports three simultaneous display outputs
STORAGE DEVICE 2.5” SATA 6Gb/s Drive Bay x 2
ETHERNET Intel® I210AT, 10/100/1000 Base-TX x 2
Intel® I219LM, 10/100/1000 Base-TX x 1
Intel® I226LM, 2.5GbE Base-TX x 1
I/O USB 3.2 Gen2 (5Gbps) x 4
USB 2.0 x 4
Audio x 1 (MIC-in, Line-out)
DB-9 x 6 for RS-232/422/485
SMA Antenna Hole x6
DIO x 8
EXPANSION M.2 2230 E-Key x 1 for WiFi module
M.2 3052 B-Key x 1 for 4G / 5G module
INDICATOR System LED x 1
HDD LED x 1
OS SUPPORT Windows® 10 IoT Enterprise 64-bit
Windows® 11 PRO 64-bit
Linux Ubuntu 20.04 (Kernel 15.5 or above)
POWER SUPPLY
POWER REQUIREMENT 3-pin DC Input 12~24V
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 10.39" x 3.8" x 7.33" (264mm x 80.92mm x 186.2mm)
GROSS WEIGHT 11.7 lb (5.3 kg)
NET WEIGHT 9.5 lb (4.3 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~122°F (-20°C ~ 50°C), IEC68-2 with 0.5 m/s AirFlow,
with wide temperature Memory / Storage (TDP 65W CPU)
-4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow,
with wide temperature Memory (Max. 32GB)/ Storage (TDP 35W CPU)
STORAGE TEMPERATURE -40 °F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5 ~ 500Hz/ operation – SSD
1 Grms/ 5 ~ 500Hz/ operation – HDD
ANTI-SHOCK 50G, IEC68-2-27, half sine, 11ms duration (with SSD)
CERTIFICATION CE/FCC class A
  • BOXER-6645-ADS x1
  • Wallmount Bracket x 2
  • 3 Pin DC-In Power Connector x 1
  • Remote ON/OFF Connector x 1
  • Screw Package x 1



Optional Accessories
Item DESCRIPTION

Power Adapter

The power adapter is not included in the packing list.
Please click below link if you'd like to add the adapter to your order.
(1) 180W Power Adapter (Recommand for 35W CPU)
(2) 330W Power Adapter (Recommand for 65W CPU)

Power Cord

Power cord varies from countries and needs to be purchased separately.
Please click below link if you'd like to add the power cord to your order as well.
- US Type
- Europe Type
- Japan Type
