BOXER-6645-ADS

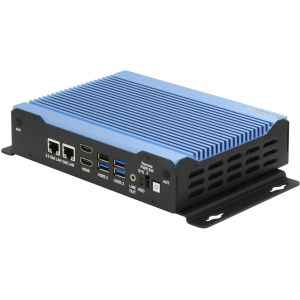

BOXER-6647-MTH

Fanless Compact Embedded Computer with Intel® Core™ Ultra 7/5 Processors
As low as US$1,358.00
Availability: In stock
Inventory: please select an item
SKU
BOXER-6647-MTH

  • Intel® Core™ Ultra 5/7 Processor
  • DDR5 5600 MT/s SO-DIMM x2, up to 64GB
    (Note: One DIMM slot can be user-populated via rear chassis access. Second DIMM slot is not user-accessible, but module preinstallation is available upon request.)
  • Accessible M.2 2280 NVMe SSD Tray + 2.5" SSD Tray
  • M.2 3052 B-Key for 5G
  • USB 3.2 Gen 2 (Type-A) x 4
  • Onboard TPM 2.0
  • Wide 9V ~ 36V DC Input Range
  • Wide -20°C ~ 60°C Operating Temperature

Note: This system is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance

.

AAEON's BOXER-6647-MTH brings together a unique, easy access design and the new Intel® Core™ Ultra processor platform all in a compact, rugged fanless PC capable of operating in space-constrained and harsh environments. The smart choice for advanced robotics and edge computing applications, the BOXER-6647-MTH harnesses an integrated NPU to execute AI and machine learning tasks directly, allowing the system to efficiently allocate resources required for real-time operation to its CPU and GPU. Combining these qualities, the BOXER-6647-MTH is uniquely designed to power robotics solutions such as AGV and AMR.



Intel Core Ultra

The BOXER-6647-MTH is the first from AAEON's BOXER-6000 range to harness the new Intel® Core™ Ultra processor platform. The disaggregated die architecture of this platform allows the BOXER-6647-MTH to offload hardware-optimized instructions for tensor operations and matrix multiplication to its NPU, enhancing the bandwidth available to its CPU and GPU for other compute tasks. As a result, applications such as AGV and AMR can run more efficiently, accurately, and with lower latency.



Peripheral Device Connectivity

Equipped with three 2.5GbE, six USB, and three serial ports (dual COM and DIO), the BOXER-6647-MTH is able to support the cameras, sensors (LIDAR, IMUs), and actuators required for advanced robotics. Alongside this, M.2 E and B-Key expansion slots facilitate Wi-Fi and 5G module installation for ultra-fast, low-latency communication over a wide area, making the BOXER-6647-MTH's deployment range particularly versatile.



Compact, Rugged Build

Measuring just 220mm x 154mm x 62.1mm, the BOXER-6647-MTH is a compact system, making its dense interface selection all the more impressive. Further, the system is fully sealed from the elements, with heat dissipation relying on a new thermal heatsink design that does not require chassis ventilation, while still maintaining a -20°C ~ 60°C temperature range, making it not only ideal for space-sensitive settings, but also incredibly durable.



Quick Access Design

The BOXER-6647-MTH has a unique, user-friendly design that features external SATA and M.2 M-Key device trays, making it easy to swap, upgrade, or replace SATA and M.2 NVMe storage devices without even opening the system. As such, the BOXER-6647-MTH allows for seamless data retrieval or storage rotation without the need for system downtime.

BOXER-6647-MTH-A1-1010
SYSTEM
CPU Intel® Core™ Ultra 5 processor 125H
CHIPSET Intel® SoC
SYSTEM MEMORY DDR5 5600 MT/s SO-DIMM x2, up to 64GB
*Note: One DIMM slot can be user-populated via rear chassis access. Second DIMM slot is not user-accessible, but module preinstallation is available upon request.
DISPLAY INTERFACE HDMI x 2 (Support 4K @60Hz)
STORAGE DEVICE M.2 2280 M-Key x 1 (NVMe PCIe SSD, quick access tray design)
2.5" SATA HDD/SSD x 1 (quick access tray design)
ETHERNET RJ-45 x 2 for 2.5GbE LAN (Intel® Ethernet Controller I226)
RJ-45 x 1 for GbE LAN (Intel® Ethernet Connection I219)
I/O HDMI x 2 USB 3.2 Gen 2 (Type-A) x 4
USB 2.0 (Type-A) x 2
DB-9 Male x 2 for RS-232/422/485
3.5mm Jack x 1 for Mic-in/Line-out
DB-15 male x1 for 8-bit DIO
Remote Power x 1
Power Button with LED x 1
Antenna holes x 6
EXPANSION M.2 2280 M-Key x 1 (PCIe [x4] for NVMe Storage)
M.2 2230 E-Key x 1 (for Wi-Fi)
M.2 3052 B-Key x 1 (for 5G/LTE)
SIM Slot x 1
INDICATOR Sys LED
Storage active LED
OS SUPPORT Windows® 11 Pro
Windows® 11 IoT Enterprise
Linux Ubuntu 24.04.01 and above
POWER SUPPLY
POWER REQUIREMENT DC-in 9~36V in 3-pin Terminal block connector
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 8.66” x 6.06” x 2.42” (220mm x 154mm x 62.1mm) w/o bracket
10.7” x 6.1” x 3.0” (272mm x 154mm x 76.1mm) with bracket
GROSS WEIGHT 6.6 lbs. (3.2 kg)
NET WEIGHT 4.9 lbs. (2.4 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~140°F (-20°C ~ 60°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature Memory/Storage
STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION 2 Grms/ 5 ~ 500Hz/ operation (with SSD)
ANTI-SHOCK 30G, IEC60068-2-27, half sine, 11 ms duration (with SSD)
CERTIFICATION CE/FCC class A
BOXER-6647-MTH-A2-1010
SYSTEM
CPU Intel® Core™ Ultra 7 processor 155H
CHIPSET Intel® SoC
SYSTEM MEMORY DDR5 5600 MT/s SO-DIMM x2, up to 64GB
*Note: One DIMM slot can be user-populated via rear chassis access. Second DIMM slot is not user-accessible, but module preinstallation is available upon request.
DISPLAY INTERFACE HDMI x 2 (Support 4K @60Hz)
STORAGE DEVICE M.2 2280 M-Key x 1 (NVMe PCIe SSD, quick access tray design)
2.5" SATA HDD/SSD x 1 (quick access tray design)
ETHERNET RJ-45 x 2 for 2.5GbE LAN (Intel® Ethernet Controller I226)
RJ-45 x 1 for GbE LAN (Intel® Ethernet Connection I219)
I/O HDMI x 2 USB 3.2 Gen 2 (Type-A) x 4
USB 2.0 (Type-A) x 2
DB-9 Male x 2 for RS-232/422/485
3.5mm Jack x 1 for Mic-in/Line-out
DB-15 male x1 for 8-bit DIO
Remote Power x 1
Power Button with LED x 1
Antenna holes x 6
EXPANSION M.2 2280 M-Key x 1 (PCIe [x4] for NVMe Storage)
M.2 2230 E-Key x 1 (for Wi-Fi)
M.2 3052 B-Key x 1 (for 5G/LTE)
SIM Slot x 1
INDICATOR Sys LED
Storage active LED
OS SUPPORT Windows® 11 Pro
Windows® 11 IoT Enterprise
Linux Ubuntu 24.04.01 and above
POWER SUPPLY
POWER REQUIREMENT DC-in 9~36V in 3-pin Terminal block connector
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 8.66” x 6.06” x 2.42” (220mm x 154mm x 62.1mm) w/o bracket
10.7” x 6.1” x 3.0” (272mm x 154mm x 76.1mm) with bracket
GROSS WEIGHT 6.6 lbs. (3.2 kg)
NET WEIGHT 4.9 lbs. (2.4 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~140°F (-20°C ~ 60°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature Memory/Storage
STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION 2 Grms/ 5 ~ 500Hz/ operation (with SSD)
ANTI-SHOCK 30G, IEC60068-2-27, half sine, 11 ms duration (with SSD)
CERTIFICATION CE/FCC class A
  • BOXER-6647-MTH
  • Wallmount Bracket x 2
  • 3Pin DC-in Power connector x 1
  • Remote Power on/off cable x 1
  • Thermal pad for memory
  • Screw Pack x 1



Optional Accessories
Item DESCRIPTION

Power Adapter

The power adapter is not included in the packing list.
Please click HERE if you'd like to add the adapter to your order.

Power Cord

Power cord varies from countries and needs to be purchased separately.
Please click below link if you'd like to add the power cord to your order as well.
- US/ Taiwan Type
- Europe Type
- Japan Type
