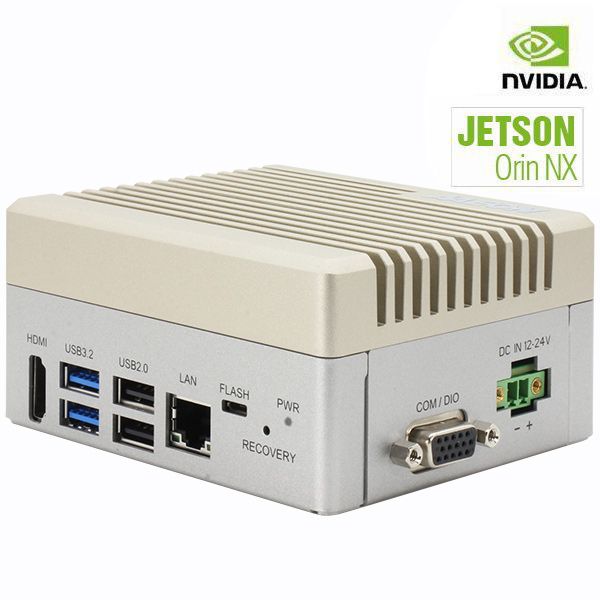

BOXER-8651AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin NX
As low as
US$1,275.00
Availability:
In stock
Inventory: please select an item
SKU
BOXER-8651AI
At just 105mm x 90mm x 52mm, the BOXER-8651AI is the market's smallest fanless system engineered to leverage the advanced capabilities of the NVIDIA® Jetson Orin™ NX, making it the ultimate platform for bringing AI to the very edge. Easily deployed via wall mount to deliver optimal performance in terms of connectivity and real-time computing, the BOXER-8651AI thrives in even the tightest spaces. The BOXER-8651AI is designed to add value and offer market-ready solutions for projects across various industries, giving your business an advantage not only in sophistication, but also efficiency and speed to market.
NVIDIA® Jetson Orin™ NX
Equipped with an NVIDIA Ampere architecture GPU featuring 1024 CUDA® and 32 Tensor Cores, the BOXER-8651AI, integrated with the NVIDIA Jetson Orin™ NX module, delivers cutting-edge inferencing capabilities with up to 70 TOPS of AI performance and dedicated Deep Learning Accelerator fixed-function hardware for handling more complex workloads.
NVIDIA JetPack™ Support
Compatible with NVIDIA JetPack™ 5.0 and higher, the BOXER-8651AI enables users to harness a comprehensive library of tools for building top-tier inferencing models. This enhances application performance by accelerating graphics, data processing, and image classification functions which can be tailored to your specific needs.
Integrated Communication Interfaces
The BOXER-8651AI features versatile I/O options, including DB-9 and DB-15 ports for RS-232 (Rx/Tx/CTS/RTS)/RS-485, CANBus, and DIO functions, facilitating high-speed serial communication with external devices, even in industrial settings with legacy infrastructure. Additionally, the device provides HDMI 2.1 display output, GbE LAN, and a variety of USB Type-A ports, supporting both USB 3.2 Gen 2 and USB 2.0 functionality.
Versatile Deployment
With the ability to operate in a wide temperature range from -5°F to 131°F (-15°C to 55°C) and a compact wall-mountable chassis, the BOXER-8651AI is well-suited for deployment in various settings and conditions across a range of markets. Its anti-shock and vibration resistance features further enhance its durability in challenging deployment spaces.
Flexible Storage & Expansion
Accommodating software stacks that can handle the execution of multiple simultaneous complex tasks requires substantial storage. Therefore, the BOXER-8651AI features an M.2 3052 B-Key slot to accommodate M.2 2242 B+M Key SSDs and an M.2 2230 E-Key slot for additional storage capacity. These versatile expansion slots can also be used for wireless communication functions, including 4G, 5G, Wi-Fi, and Bluetooth, making it ideal for handling multiple complex tasks.
BOXER-8651AI-JP511N-A2-1010
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Orin NX |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| SYSTEM MEMORY | 16GB LPDDR5 |
| STORAGE DEVICE | M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default: 128GB) M.2 2230 E-Key x 1 (Optional) |
| DISPLAY INTERFACE | HDMI 2.1 (Type-A) x 1 |
| ETHERNET | RJ-45 x 1 for GbE LAN |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 DB-9 for RS-232 (Rx/Tx/CTS/RTS)/485 x 1 and CANBus FD x 1 DB-15 for RS-232 (Rx/Tx)/422/485 x 1 and DIO x 8 Micro USB x 1 for OS Flash Recovery Button x 1 Antenna x 2 |
| EXPANSION | M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M Key storage) M.2 2230 E Key x 1 (Wifi/BT/Storage) SIM Slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack™ 5.1.1) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V~24V DC in with 2 pins terminal block x 1 |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 4.13” x 3.54” x 2.05” (105mm x 90mm x 52mm), w/o bracket |
| GROSS WEIGHT | 2.4 lb. (1.1Kg) |
| NET WEIGHT | 1.58 lb. (0.7Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 131°F (-15°C ~ 55°C), according to IEC60068-2 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G peak acceleration |
| CERTIFICATION | CE/FCC class A |
BOXER-8651AI-JP511N-A1-1010
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Orin NX |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| SYSTEM MEMORY | 8GB LPDDR5 |
| STORAGE DEVICE | M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default: 128GB) M.2 2230 E-Key x 1 (Optional) |
| DISPLAY INTERFACE | HDMI 2.1 (Type-A) x 1 |
| ETHERNET | RJ-45 x 1 for GbE LAN |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 DB-9 for RS-232 (Rx/Tx/CTS/RTS)/485 x 1 and CANBus FD x 1 DB-15 for RS-232 (Rx/Tx)/422/485 x 1 and DIO x 8 Micro USB x 1 for OS Flash Recovery Button x 1 Antenna x 2 |
| EXPANSION | M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M Key storage) M.2 2230 E Key x 1 (Wifi/BT/Storage) SIM Slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack™ 5.1.1) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V~24V DC in with 2 pins terminal block x 1 |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 4.13” x 3.54” x 2.05” (105mm x 90mm x 52mm), w/o bracket |
| GROSS WEIGHT | 2.4 lb. (1.1Kg) |
| NET WEIGHT | 1.58 lb. (0.7Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 131°F (-15°C ~ 55°C), according to IEC60068-2 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G peak acceleration |
| CERTIFICATION | CE/FCC class A |
- BOXER-8651AI X 1
- Wallmount Bracket x 2
- Power Connector x 1
- Screw Package x 1
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
