FWS-2291
Network Appliance with Intel® Alder lake N97 SoC Processor
US$492.00
Availability:
In stock
Only 1 left
SKU
FWS-2291-E6-A10-00
- Intel® Processor N-series SoC, 2~8 cores
- DDR5 SO-DIMM Socket (up to 32GB)
- 2.5GbE RJ-45 x 4 + 1GbE SFP x 2
- M.2 3052 B-Key (5G, Colay Mini Card with Push pin SIM for 4G LTE/Wi-Fi)
- M.2 2230 E-Key (Colay Mini Card slot for Wi-Fi)
Note: If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.
Accelerate Edge Networking with the New FWS-2291
AAEON's newest generation of desktop network platforms is set to elevate how SD-WAN, uCPE, and UTM solutions enhance operational networking capabilities for organizations of all types. Equipped with high-performance CPUs from the latest Intel Atom® processor collections, the FWS-2291 offers a unique combination of interfaces ideal for setups requiring a small footprint and high-density networking.
Higher Frequency Processing
Featuring both the Intel Atom® x7000RE Processor Series for the Edge and the Intel Atom® x7000C Processor Series for Network and Security Appliances, the FWS-2291 utilizes processors based on the Alder Lake-N / Amston platform, delivering up to 49% faster single-thread performance and 61% faster multithread performance compared to previous generations.
Hybrid Fiber & Copper Setup
Equipped with a powerful combination of four 2.5GbE RJ-45 copper ports and two GbE SFP ports, alongside two pairs of LAN bypass, the FWS-2291 is ideal for hybrid environments requiring both long-distance fiber uplinks and local high-speed LAN connectivity.
Wireless Expansion Support
The FWS-2291 offers M.2 3052 B-Key and M.2 2230 E-Key slots, alongside multi-panel antenna openings, providing reliable options to integrate 5G, 4G/LTE, and Wi-Fi functionality—crucial for modern SD-WAN deployments.
Compact, Robust Mechanical Design
Measuring just 220mm x 105mm x 44mm, the FWS-2291 is ideally suited to space-constrained environments. It features rear-panel dual lockable power input connectors, with power adapter options designed to handle demanding CPU workloads, and supports redundant power for 24/7 operation.
Dynamic, Modular Storage
With up to 128GB of onboard eMMC, a 2.5" HDD Bay, and an M.2 2242 M-Key slot, the FWS-2291 can be configured to match workload demands—from basic firewall setups to intrusion logging, virtualized firewall environments, or containerized services.
| System | |
| Form Factor | Desktop Network Appliance |
| Processor | Intel® Processor N97 |
| Chipset | SoC |
| System Memory | DDR5 SODIMM Socket x 1 (up to 16GB) |
| Network | |
| Ethernet | Intel® Ethernet Controller I226-V, 2.5GbE x 4 Intel® Ethernet Controller I210-IS, SFP x 2 (co-lay with Intel® Ethernet Controller I210-AT Copper x 2) by PCIe Bridge |
| Bypass | 2 Pair |
| Display | |
| Graphics Controller | — |
| Connector | HDMI x1 (optional) |
| Storage | |
| HDD | 2.5” HDD Bay x 1 M.2 2242 M-Key x 1 |
| CF/CFast/mSATA | Onboard 32G eMMC, up to 128G |
| Internal/ Expansion Interface | |
| PCIe Slot | — |
| Mini-PCIe Slot | M.2 3052 B-Key (5G, Colay Mini Card with Push pin SIM for 4G LTE/Wi-Fi) M.2 2230 E-Key (Colay Mini Card slot for Wi-Fi) |
| USB | USB 3.2 Gen 1 (Type-A) x 2, 4.5W per port, max. 5W total |
| Miscellaneous | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 step by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | TPM 2.0 (optional) |
| GPIO | Reserve internal Pin Header (8-bit Digital I/O Interface, 4-in/4-out) |
| Fan | Fan x 1 |
| MTBF (Hours) | TBD |
| Color | Black |
| Environmental Parameters and Dimension | |
| Power Consumption | Dual 12V DC Lockable Power Input Connector, 40/60W Power Adapter (Redundant) Reserve 2.54 pin header for power button |
| Operating Temperature | 32 ~ 122°F (0 ~ 40°C) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Operating Humidity | 10%~90% relative humidity, non-condensing |
| Storage Humidity | 10 ~ 80% @ 40C, non-condensing |
| Vibration | 0.5G / 5 ~ 500Hz / operation 1.5G / 5 ~ 500Hz / non-operation |
| Shock | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| Dimension (W x D x H) | 4.7" x 4.1" x 1.7" (220mm x 105mm x 44mm) |
| I/O | |
| Front Panel | Power LED x 2 Status LED x 1 Bypass LED x 2 Storage Active LED x 1 Ethernet LED x 12 Antenna Hole x 2 Antenna Hole x 1 (Right Panel) Antenna Hole x 1 (Left Panel) Accessible SIM Slot x 1 |

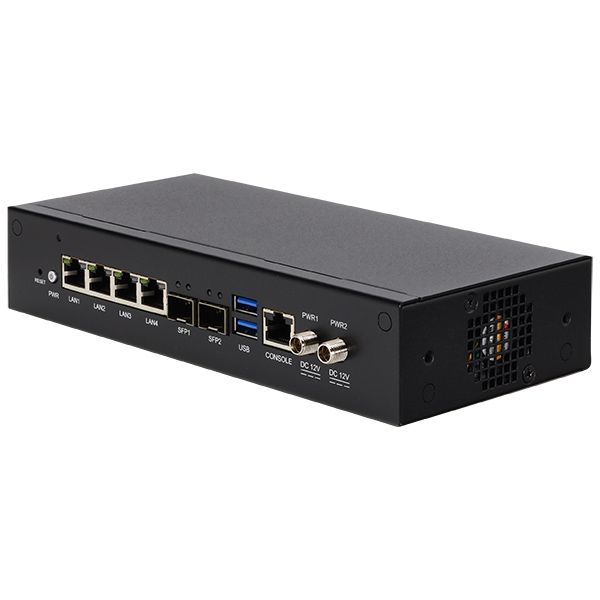

| Rear Panel | Lockable DC Power Input Connector x 2 Power Button x 1 USB 3.2 Gen 1 x 2 RJ-45 x 4 Fiber x 2 RJ45 Console x 1 Antenna Hole x 2 Software Programmable Switch x 1 |
- Power Cable x 1
- SATA Cable x 1
- Power Adapter x 1
- FWS-2291
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US Type - Europe Type-170X000800 - Europe Type-170X001024 |
