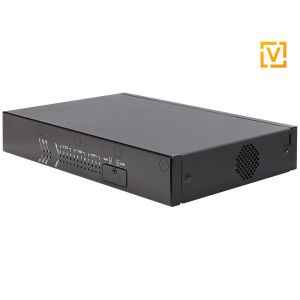

FWS-2365
Desktop Network Appliance with Intel® Atom® C3558
◆ Click HERE for FlexiWAN program.
- Intel® Atom® C3558
- 10/100/1000Base-TX Ethernet x 6
- Supports 1 pair bypass (LAN 3 ~ 4)
- Up to 4 x 10G SFP+ Port (C3558 only supports 2 port)
- DDR4 SODIMM socket x 2
- SATA III Port x 2
- On board 16GB eMMC, up to 128GB
- Mini-card slot x 1 (Half-size, PCIe), Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot
- M.2 B key 3052 x 1 (USB3.0) with SIM slot
- USB3.0 Type A Port x 2 (1 Port only support USB2.0 signal)
The FWS-2365 desktop network appliance is a white box solution designed with a range of powerful features for applications including uCPE and SD-WAN. The system supports 5G connectivity and up to four SFP+ Fiber 10 Gbps ports and a range of powerful tools and function to accelerate deployment of SD-security, QoS and other SDN/NFV applications.
The FWS-2365 is powered by Intel® Atom™ C3000 processors (formerly Denverton) with support for processors from four to sixteen cores, delivering performance to power more functions. With the Intel processors, the system supports vital performance acceleration tools including Intel QAT, SR-IOV, AES-NI, Virtualization Technology and DPDK. The FWS-2365 also supports TPM and Secure Boot to help maximize data and system security.
The FWS-2365 is built to deliver faster network speeds and higher throughput with up to four SFP+ Fiber 10 Gbps ports, and up to six copper Gigabit LAN ports, two of which can be upgraded to SFP. The FWS-2365 supports LAN Bypass functionality to provide uninterrupted connection and service.
The FWS-2365 supports up to three wireless expansion cards and six antennas, utilizing a combination of cards including Wi-Fi, 4G and 5G cellular communication. This allows for greater support for IoT connected devices and leverages the benefits of 5G to enable more flexible network structures.
The FWS-2365 is easy to setup and configure for a range of NFV functions such as firewall and router, as well as VPN. The FWS-2365 also supports Zero Touch Provision (ZTP) to make deployment, setup and network authorization even easier for communications service providers (CSP). The system also supports remote console connection for more flexible system management and monitoring.
| Sub Title | Desktop Network Appliance with Intel® Atom® C3558 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Spec |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SYSTEM
FORM FACTOR
Desktop Network Appliance
PROCESSOR
Intel® Atom® C3558
CHIPSET
SoC
SYSTEM MEMORY
DDR4 SODIMM ECC x 2, up to 64GB
NETWORK
ETHERNET
1GbE RJ-45 x 6 (2 ports co-lay SFP)
10G SFP+ x 2 (4 cores only support 2 port)
BYPASS
Supports 1 pairs on LAN 3-4
STORAGE
HDD
SATA III port x 2, 2.5” HDD/SSD up to 2
CF/CFAST/MSATA
On board 16GB eMMC, up to 128GB
optional mSATA slot x 1 (co-lay with M.2 slot)
INTERNAL/ EXPANSION INTERFACE
PCIE SLOT
—
MINI-PCIE SLOT
Mini-card slot x 1 (Half-size, PCIe)
Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot
M.2 B key 3052 x 1 (USB3.0) with SIM slot
KB MOUSE
Reserved pin header
USB
USB 3.0 x 2 (1 Port only support USB2.0 signal)
MISCELLANEOUS
RTC
Internal RTC
WATCHDOG TIMER
1~255 steps by software programmable
SOFTWARE BUTTON
GPIO programmable push button x 1
TPM
TPM v2.0 9665
GPIO
4 bits input/ 4 bits output
FAN
System Fan x 1
MTBF (HOURS)
TBD
COLOR
Black
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT
12V DC Power in connector
4 Cores: 40W Power Adapter
8 Cores and above: 60W Power Adapter
OPERATING TEMPERATURE
32°F ~ 104°F (0°C ~ 40°C )
STORAGE TEMPERATURE
-4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY
10%~80% relative humidity, non-condensing
STORAGE HUMIDITY
10%~80% @40°C; non-condensing
VIBRATION
0.5 g rms/ 5 ~ 500Hz / operation (2.5” HDD)
1.5 g rms/ 5 ~ 500Hz / non operation
SHOCK
10 G peak acceleration (11 m sec. duration), operation
20 G peak acceleration (11 m sec. duration), non operation
DIMENSION (W X D X H)
260mm x 178mm x 44mm (W x D x H)
I/O
FRONT PANEL
Power LED x 1
Status LED x 1
Storage Active LED x 1
Bypass LED x 1
Ethernet LED x 20
Antenna Hole x 2
Accessible SIM slot x 2
REAR PANEL
USB 3.0 Port x 2
RJ-45 Port x 6
SFP+ Port x 2
RJ-45 Console x 1
12V DC Power Input x 1
Software Reset Button x 1
Power Button x 1
Antenna Hole x 4
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Atom® C3558 |
| CHIPSET | SoC |
| SYSTEM MEMORY | DDR4 SODIMM ECC x 2, up to 64GB |
| NETWORK | |
| ETHERNET | 1GbE RJ-45 x 6 (2 ports co-lay SFP) 10G SFP+ x 2 (4 cores only support 2 port) |
| BYPASS | Supports 1 pairs on LAN 3-4 |
| STORAGE | |
| HDD | SATA III port x 2, 2.5” HDD/SSD up to 2 |
| CF/CFAST/MSATA | On board 16GB eMMC, up to 128GB optional mSATA slot x 1 (co-lay with M.2 slot) |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-card slot x 1 (Half-size, PCIe) Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot M.2 B key 3052 x 1 (USB3.0) with SIM slot |
| KB MOUSE | Reserved pin header |
| USB | USB 3.0 x 2 (1 Port only support USB2.0 signal) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO programmable push button x 1 |
| TPM | TPM v2.0 9665 |
| GPIO | 4 bits input/ 4 bits output |
| FAN | System Fan x 1 |
| MTBF (HOURS) | TBD |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC Power in connector 4 Cores: 40W Power Adapter 8 Cores and above: 60W Power Adapter |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” HDD) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 260mm x 178mm x 44mm (W x D x H) |
| I/O | |
| FRONT PANEL | Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 1 Ethernet LED x 20 Antenna Hole x 2 Accessible SIM slot x 2 |
| REAR PANEL | USB 3.0 Port x 2 RJ-45 Port x 6 SFP+ Port x 2 RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 Antenna Hole x 4 |
- SATA Cable x 1
- SATA Power Cable x 1
- 40W Power Adapter x 1 (C3558 SKU)
- FWS-2365
- SATA Cable x 1
- SATA Power Cable x 1
- 40W Power Adapter x 1 (C3558 SKU)
- FWS-2365
