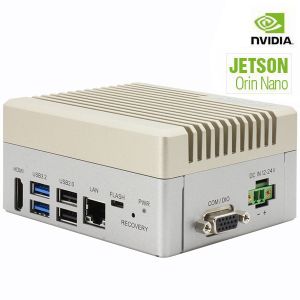

BOXER-8622AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin Nano™
As low as
US$858.00
Availability:
In stock
Inventory: please select an item
SKU
BOXER-8622AI
With flexible SSD-based storage and LPDDR5 memory, the BOXER-8622AI enhances the potential offered by a high-speed I/O. The system boasts multiple serial ports, providing CANBus and RS-232/422/485 functionality, while dual LAN and four USB Type-A ports offer peripheral device integration for exceptional data transmittance in operation.
BOXER-8622AI-JP511N-A2-1010
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Orin Nano™ |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| SYSTEM MEMORY | 8GB LPDDR5 |
| STORAGE DEVICE | M.2 2280 M-Key x 1 |
| DISPLAY INTERFACE | HDMI 1.4 (Type-A) x 1 |
| ETHERNET | RJ-45 x 2 for 10/100/1000 Base-T |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 Micro USB x 1 for OS Flash DB-9 x 1 for CANbus DB-9 x 1 for RS-232/422/485 DB-15 x 1 for 13-bit DIO Power ON/OFF switch x 1 Recovery button x 1 Antenna Hole x 6 |
| EXPANSION | M.2 2230 E-Key x 1 (Wi-Fi/Bluetooth) M.2 3042/3052 B-Key x 1 (4G/5G) M.2 2280 M-Key x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack™ 5.0 and up) |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC-in 12-24V with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall mount kit |
| DIMENSION | 5.98" x 3.78" x 2.42" (152mm x 96 mm x 61.5mm) |
| GROSS WEIGHT | 3.97lb (1.8kg) |
| NET WEIGHT | 2.65lb (1.2kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 149°F (-15°C ~ 65°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G Peak Acceleration |
| CERTIFICATION | CE/FCC class A |
BOXER-8622AI-JP511N-A1-1010
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Orin Nano™ |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| SYSTEM MEMORY | 4GB LPDDR5 |
| STORAGE DEVICE | M.2 2280 M-Key x 1 |
| DISPLAY INTERFACE | HDMI 1.4 (Type-A) x 1 |
| ETHERNET | RJ-45 x 2 for 10/100/1000 Base-T |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 Micro USB x 1 for OS Flash DB-9 x 1 for CANbus DB-9 x 1 for RS-232/422/485 DB-15 x 1 for 13-bit DIO Power ON/OFF switch x 1 Recovery button x 1 Antenna Hole x 6 |
| EXPANSION | M.2 2230 E-Key x 1 (Wi-Fi/Bluetooth) M.2 3042/3052 B-Key x 1 (4G/5G) M.2 2280 M-Key x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack™ 5.0 and up) |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC-in 12-24V with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall mount kit |
| DIMENSION | 5.98" x 3.78" x 2.42" (152mm x 96 mm x 61.5mm) |
| GROSS WEIGHT | 3.97lb (1.8kg) |
| NET WEIGHT | 2.65lb (1.2kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 149°F (-15°C ~ 65°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G Peak Acceleration |
| CERTIFICATION | CE/FCC class A |
- BOXER-8622AI x 1
- Wallmount Bracket x 2
- Power Connector x 1
- Screw Package x 1
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
