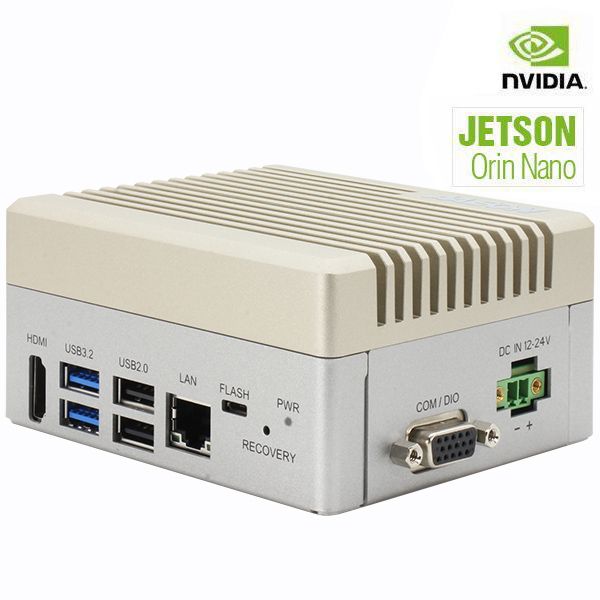

BOXER-8621AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin Nano™
As low as
US$775.00
Availability:
In stock
Inventory: please select an item
SKU
BOXER-8621AI

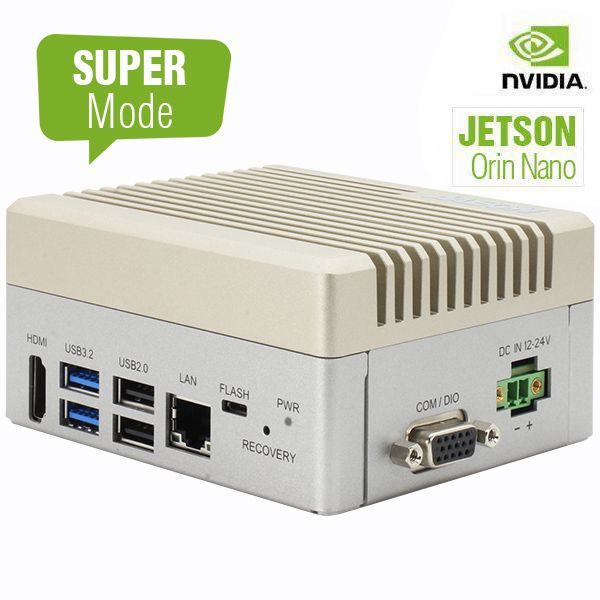

Compact, durable, and equipped with the superior edge computing performance of the NVIDIA® Jetson Orin Nano™ (Super Mode supported), the new BOXER-8621AI fanless AI system brings the edge anywhere, from the vehicle to the factory. With intricate communication protocols including one GbE LAN and four USB ports for camera support alongside a wide -15°C ~ 60°C temperature range and versatile expansion options for 5G, LTE, and Wi-Fi; the BOXER-8621AI excels in the realm of AMR, fleet management, and traffic control solutions
AMR
With a wide -15°C ~ 60°C temperature range, anti-shock, and anti-vibration features, the BOXER-8621AI is rugged enough to be deployed as an AMR solution in a variety of settings. DB-9 and DB-15 ports provide a range of communication protocols, such as RS-232/422/485, CANBus, and GPIO conducive to real-time data exchange between proximity sensors, motor controllers, and actuators for smooth AMR operation.
ANPR
Equipped with the 20 TOPS AI performance of the NVIDIA® Jetson Orin Nano™ and support for NVIDIA Jetpack™ SDK's library of deep learning models, the BOXER-8621AI offers intricate inferencing on the edge for ANPR deployments. With its compact, mountable chassis and combination of camera support and wireless expansion module compatibility, the system excels both on the roadside and in parking lots.
Fleet Management
Boasting both LAN and USB ports to facilitate camera installation for driver behavior monitoring and outfitted with flexible storage and wireless communication options, the BOXER-8621AI is a premier choice for fleet management solutions. Moreover, it can swiftly implement contingency measures following road-related incidents, transmitting pertinent data to a central server while ascertaining the necessary level of response on the edge.
BOXER-8621AI-JP511N-A2-1010
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Orin Nano™ |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| SYSTEM MEMORY | 8GB LPDDR5 |
| DISPLAY INTERFACE | HDMI 1.4 (Type-A) x 1 |
| STORAGE DEVICE | M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default 128GB Storage) M.2 2230 E-Key x 1 (Optional) |
| ETHERNET | RJ-45 x 1 for GbE LAN |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 DB-9 for RS-232 (Rx/Tx/CTS/RTS)/485 x 1 and CANBus FD x 1 DB-15 for RS-232 (Rx/Tx)/422/485 x 1 and DIO x 8 Micro USB x 1 for OS Flash Recovery Button x 1 Antenna x 2 |
| EXPANSION | M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M Key storage) M.2 2230 E Key x 1 (Wifi/BT/Storage) SIM Slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack™ 5.0 up) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V~24V DC in with 2 pins terminal block x 1 |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 4.13" x 3.54" x 2.05" (105mm x 90mm x 52mm), w/o bracket |
| GROSS WEIGHT | 2.4 lb. (1.1Kg) |
| NET WEIGHT | 1.58 lb. (0.7Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 140°F (-15°C ~ 60°C), according to IEC60068-2 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G Peak Acceleration |
| CERTIFICATION | CE/FCC class A |
BOXER-8621AI-JP511N-A1-1010
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Orin Nano™ |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| SYSTEM MEMORY | 4GB LPDDR5 |
| DISPLAY INTERFACE | HDMI 1.4 (Type-A) x 1 |
| STORAGE DEVICE | M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default 128GB Storage) M.2 2230 E-Key x 1 (Optional) |
| ETHERNET | RJ-45 x 1 for GbE LAN |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 DB-9 for RS-232 (Rx/Tx/CTS/RTS)/485 x 1 and CANBus FD x 1 DB-15 for RS-232 (Rx/Tx)/422/485 x 1 and DIO x 8 Micro USB x 1 for OS Flash Recovery Button x 1 Antenna x 2 |
| EXPANSION | M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M Key storage) M.2 2230 E Key x 1 (Wifi/BT/Storage) SIM Slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack™ 5.0 up) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V~24V DC in with 2 pins terminal block x 1 |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 4.13" x 3.54" x 2.05" (105mm x 90mm x 52mm), w/o bracket |
| GROSS WEIGHT | 2.4 lb. (1.1Kg) |
| NET WEIGHT | 1.58 lb. (0.7Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 140°F (-15°C ~ 60°C), according to IEC60068-2 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G Peak Acceleration |
| CERTIFICATION | CE/FCC class A |
- BOXER-8621AI x 1
- Wallmount Bracket x 2
- Power Connector x 1
- Screw Package x 1
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
