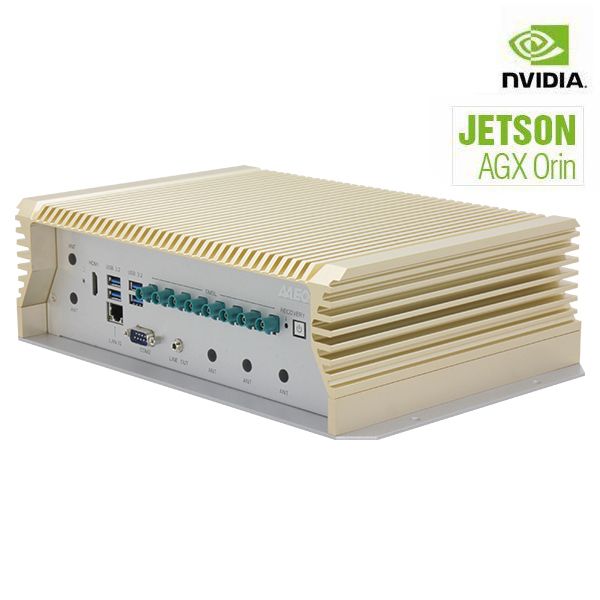

BOXER-8645AI
AI@Edge Fanless Embedded AI System with NVIDIA® Jetson AGX Orin™
As low as
US$3,500.00
Availability:
In stock
Inventory: please select an item
SKU
BOXER-8645AI
As AAEON's newest AI system powered by the NVIDIA® Jetson AGX Orin™ module, the BOXER-8645AI is a trailblazer in embedded technology. Built with rugged features suitable for in-vehicle deployments, and harnessing the newest image-processing technologies to build more effective, advanced, and forward-thinking AMR and in-vehicle solutions, the BOXER-8645AI pairs with the NileCAM25 Full HD global shutter GMSL2 color camera from AAEON partner e-con Systems™, giving you higher quality image acquisition with which to unleash the AI performance of the NVIDIA® Jetson AGX Orin™.
New Technologies for Faster, More Accurate In-Vehicle Deployment
Armed with eight GMSL2 interfaces via FAKRA connectors, the BOXER-8645AI takes high-speed video transmission over longer distances to a new level. The BOXER-8645AI increases inferencing accuracy thanks to the high frame rate, low-latency, and synchronized multi-camera streaming offered by e-con Systems' NileCAM25. The system's AMR and in-vehicle deployment suitability is bolstered by its E-Mark certification, 9-Axis sensor, and GNSS support, which provides precise analytics for solutions that rely on accurate motion and orientation.
AAEON's Rugged Design
Given its utility for in-vehicle solutions, the BOXER-8645AI is built with durability and longevity in mind. The system has a wide 9V ~ 36V power input range with ignition delay on/off function, alongside MIL-STD-810G standard tolerance to shock and vibration. Able to operate in harsh environmental conditions, the BOXER-8645AI also boasts a wide temperature range of -25°C to 65°C. Through the BOXER-8645AI, AAEON once again harnesses new technologies to bring elite solutions to market.
BOXER-8645AI-JP511E-A1-1110
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson AGX Orin™ |
| CPU | AGX Orin 32GB: 8-core Arm® Cortex®-A78AE CPU |
| SYSTEM MEMORY | 32GB LPDDR5 |
| STORAGE DEVICE | 64GB eMMC 5.1 x 1 M.2 2280 M-Key x 1 (NVMe) 2.5" SATA x 2 |
| DISPLAY INTERFACE | HDMI 2.0 x 1 (Type-A) |
| ETHERNET | RJ-45 for 10G LAN x 1 RJ-45 for Giga LAN x 1 Additional LAN x 8 (By request) |
| I/O | GMSL2 with FAKRA x 8 USB 3.2 Gen 2 x 4 (Type-A) Micro USB x 1 for OS Flash Line-Out x 1 DB-9 x 1 for Isolated CANBus x 2 DB-9 x 2 for RS-232 (Rx/Tx/CTS/RTS)/RS-485 x 2 DB-9 x 1 for DIO x 8 Switch x 1 for Ignition Delay On/Off 3-pin Terminal Block x 1 for Power Input Power Button x 1 Recovery Button x 1 Antenna Hole x 7 TPM Support GNSS Support 9-Axis Sensor Support |
| EXPANSION | M.2 2230 E-Key x 1 (Wifi/BT) M.2 3052 B-Key x 1 (LTE) M.2 2280 M-Key x 1 (NVMe) 2.5" SATA x 2 SIM Slot x 2 MicroSD Slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack 5.0 or above) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin Terminal Block x 1 for 9V ~ 36V ACC Ignition Delay On/Off |
| MECHANICAL | |
| MOUNTING | Wall mount (default) |
| DIMENSION | 11.26" x 7.95" x 3.54" (286mm x 202mm x 90mm) |
| GROSS WEIGHT | 11 lb. (5Kg) |
| NET WEIGHT | 13 lb. (5.9Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -13°F ~ 149°F (-25°C ~ 65°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | MIL-STD-810G, 514.6C Procedure 1, Category 4 Trucker/Semitrailer on US highway (Figure 514.6C-1-Category 4-Common carrier) |
| Anti-Shock | MIL-STD-810G, Method 516.6, Procedure I, flight vehicle equipment |
| CERTIFICATION | E-Mark, CE/FCC Class A |
BOXER-8645AI-JP511E-A2-1110
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson AGX Orin™ |
| CPU | AGX Orin 64GB: 12-core Arm® Cortex®-A78AE CPU |
| SYSTEM MEMORY | 64GB LPDDR5 |
| STORAGE DEVICE | 64GB eMMC 5.1 x 1 M.2 2280 M-Key x 1 (NVMe) 2.5" SATA x 2 |
| DISPLAY INTERFACE | HDMI 2.0 x 1 (Type-A) |
| ETHERNET | RJ-45 for 10G LAN x 1 RJ-45 for Giga LAN x 1 Additional LAN x 8 (By request) |
| I/O | GMSL2 with FAKRA x 8 USB 3.2 Gen 2 x 4 (Type-A) Micro USB x 1 for OS Flash Line-Out x 1 DB-9 x 1 for Isolated CANBus x 2 DB-9 x 2 for RS-232 (Rx/Tx/CTS/RTS)/RS-485 x 2 DB-9 x 1 for DIO x 8 Switch x 1 for Ignition Delay On/Off 3-pin Terminal Block x 1 for Power Input Power Button x 1 Recovery Button x 1 Antenna Hole x 7 TPM Support GNSS Support 9-Axis Sensor Support |
| EXPANSION | M.2 2230 E-Key x 1 (Wifi/BT) M.2 3052 B-Key x 1 (LTE) M.2 2280 M-Key x 1 (NVMe) 2.5" SATA x 2 SIM Slot x 2 MicroSD Slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack 5.0 or above) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin Terminal Block x 1 for 9V ~ 36V ACC Ignition Delay On/Off |
| MECHANICAL | |
| MOUNTING | Wall mount (default) |
| DIMENSION | 11.26" x 7.95" x 3.54" (286mm x 202mm x 90mm) |
| GROSS WEIGHT | 11 lb. (5Kg) |
| NET WEIGHT | 13 lb. (5.9Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -13°F ~ 149°F (-25°C ~ 65°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | MIL-STD-810G, 514.6C Procedure 1, Category 4 Trucker/Semitrailer on US highway (Figure 514.6C-1-Category 4-Common carrier) |
| Anti-Shock | MIL-STD-810G, Method 516.6, Procedure I, flight vehicle equipment |
| CERTIFICATION | E-Mark, CE/FCC Class A |
- BOXER-8645AI
- HDMI Cable Holder x 1
- Power Connector x 1
- Screw Package x 1
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
-
BOXER-8645AI System-Compatible Cameras - NileCAM25 and NileCAM81 by e-con Systems™The BOXER-8645AI is compatible with both the NileCAM25 and NileCAM81 Full HD global shutter GMSL2 color cameras provided by AAEON partner e-con Systems™. This collaboration ensures superior image acquisition quality, enhancing the AI capabilities of the NVIDIA® Jetson AGX Orin™. With eight GMSL2 interfaces via FAKRA connectors, the BOXER-8645AI enhances high-speed video transmission over extended distances.
The current default camera setup for the BOXER-8645AI is the NileCAM25, running with NVIDIA Jetpack™ 5.1.1. For guidance on configuration and setup, please consult the BOXER-8645AI product manual. If you wish to install the NileCAM81, a customized driver is required, which can be acquired either via your AAEON representative or by contacting our technical support team.
Please note that while both e-con Systems™ cameras are compatible with the BOXER-8645AI, AAEON does not package or bundle said products, which are available from e-con Systems™. -
BOXER-8645AI System-Compatible Cameras - LI-IMX490-GMSL2 Series by Leopard Imaging Inc.The BOXER-8645AI supports the LI-IMX490-GMSL2 cameras, including LI-IMX490-GMSL2-030H, LI-IMX490-GMSL2-040H, LI-IMX490-GMSL2-065H, and LI-IMX490-GMSL2-090H by Leopard Imaging Inc. This camera series ensures exceptional image acquisition quality, enhancing the AI capabilities of the NVIDIA® Jetson AGX Orin™. With eight GMSL2 interfaces via FAKRA connectors, the BOXER-8645AI facilitates high-speed video transmission over extended distances.
The current camera setup is compatible with Jetpack 5.1.2. If you require assistance with a higher version or need support to adopt these camera models, we kindly ask you to contact your designated point of contact for installation testing. -
BOXER-8645AI System-Compatible Cameras - ZED X and ZED X mini by StereolabsThe BOXER-8645AI supports the Stereolabs ZED X and ZED X Mini cameras. These cameras are compatible with Jetpack 5.1.1, offering advanced depth sensing and 3D mapping capabilities, which further augment the AI performance of the NVIDIA® Jetson AGX Orin™. The integration of these cameras allows for a wide range of applications, from robotics to autonomous vehicles, leveraging their high-resolution imaging and real-time spatial perception.
The current camera setup is compatible with Jetpack 5.1.1. If you require assistance with a higher version or need support to adopt these camera models, we kindly ask you to contact your designated point of contact for installation testing.
