UP SQUARED PRO 7000

The third generation of AAEON's UP Squared Pro series, the UP Squared Pro 7000 offers even greater development potential via high-performance computing power, an upgraded board design, and an expanded display interface. Being the first in the series to harness Intel® Core™/Atom®/N-Series processors (formerly Alder Lake-N), the UP Squared Pro 7000 is consequently the first to possess onboard LPDDR5 system memory, enhancing the functional speed of its upgraded I/O. Further, the UP Squared Pro 7000 sees dramatic improvements in graphics and display capability, with MIPI CSI camera support paired with Intel® UHD Graphics for three simultaneous 4K displays.

1.4x The CPU Performance

Powered by Intel® Core™/Atom®/N-Series processors, the UP Squared Pro 7000 boasts up to 1.4x the CPU performance of its predecessor. With up to 8 Gracemont cores, support for Intel® Distribution of OpenVINO™ Toolkit, and Intel® UHD Graphics for 12th Gen Intel® Processors, the UP Squared Pro 7000 possesses the computing power, optimized inference engines, and graphic capability to provide world-class solutions.

3 Simultaneous 4K Displays

Equipped with HDMI 2.0b, DP 1.2 ports, and DP 1.4a via USB Type-C, the UP Squared Pro 7000 hosts an exceptional display interface. With a graphics package containing an integrated GPU and multiple outputs, the UP Squared Pro 7000 can host three simultaneous 4K displays, making it perfect for vision-intensive applications such as digital signage.

Double the High-Speed System Memory

The first board from the UP Squared Pro family to contain onboard LPDDR5 system memory, the UP Squared Pro 7000 provides 16GB of system memory, double the previous generation. Further, a maximum memory speed of 4800MHz grants users double the bandwidth and data transfer speed while also being more power-efficient.

Across the Board I/O Upgrades

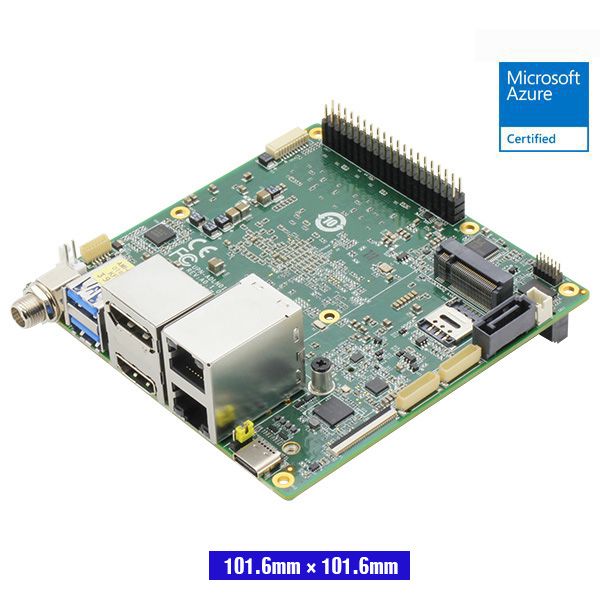

Despite maintaining the UP Squared Pro series' compact 4" x 4" form factor, the UP Squared Pro 7000 boasts a denser board design. Armed with two 2.5GbE, three USB 3.2, and an FPC port, the UP Squared Pro 7000 can accommodate a wealth of peripheral devices, including MIPI CSI cameras. Combining these attributes with the board's onboard LPDDR5 and powerful CPU means it can provide precision vision solutions for smart factory robotics.

Now Available with Wide Temperature Support!

Wide temperature models of the UP Squared Pro 7000 are now available! WiTAS1 assured, the UP Squared Pro 7000 can now operate in temperatures spanning -4°F ~ 158°F (-20°C ~ 70°C). This rugged feature opens the door to broader deployment environments, and consequently enables applications that demand more resilience, such as smart factory and industrial safety monitoring systems.
