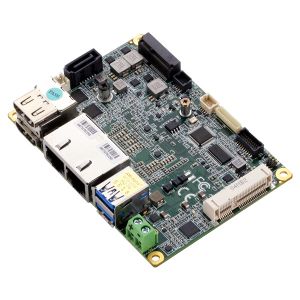

PICO-KBU4
Pico-ITX Board with 7th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
As low as
US$297.00
Availability:
In stock
Inventory: please select an item
SKU
PICO-KBU4
The PICO-KBU4, a rugged and expandable compact SBC with the capacity to revolutionize the field of robotics and open up the drone market for x86 embedded controllers.
Fitted with a 7th Generation Intel® Core™ i processor (formerly Kaby Lake) and featuring up to 16GB DDR4 SODIMM memory, the PICO-KBU4 has the computing power to handle applications previously only possible with much larger motherboards. Its market-leading pair of GbE LAN ports enable the use of two HD cameras, and with its GPIO, two COM ports, two USB3.0 ports, and two USB2.0 pin headers, it can connect to and control a range of sensors.
The PICO-KBU4’s compact, lightweight specifications are an obvious advantage with drones, robotics, and even conventional, factory machine vision systems. The board can be used in spaces once considered too small to house a powerful embedded controller, and its low power-consumption figures are an additional benefit with battery-reliant drones.
A 0°C~60°C operating temperature range, HDMI and LVDS ports, SATA slot, and M.2 B and E keys for extra storage and WiFi / Bluetooth connectivity make this an extremely flexible SBC, and customers can expand the already impressive IO interface by adding a custom-made daughter board via an optional board-to-board interface.
This board’s combination of high-performance computing with a small form factor mean it will be the future of not only factory automation systems, but also robotics, and advanced drones. Any drone equipped with a PICO-KBU4 will be able to stay in the air for a long time, and that will make it a powerful surveillance tool or air quality monitor.
Note: To achieve the best performance, it is recommended that you order the Cooler/ Heat-spreader together with the PICO-KBU4.
PICO-KBU4-A10-0001
| SYSTEM | |
| Form Factor | PICO-ITX |
| CPU | 7th Generation Intel® Celeron® Processor 3965U (2C/2T, 2.20GHz, 15W) |
| CHIPSET | Integrated with Intel® SoC |
| Memory Type | DDR4 2133, SODIMM x 1, Non-ECC (Max. 16GB) |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | — |
| RTC BATTERY | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs. (0.08 kg) |
| OS Support | Windows 10 (64 bit) Linux Ubuntu 16.04.3/Kernel 4.10.0 |
| Power | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | Phoenix 2-pin Connector (Default) Lockable DC Jack Connector (colay) |
| POWER CONSUMPTION | Intel® Core™ i7-7600U , DDR4 16GB, 1.53A@ +12V(TYPICAL) |
| Display | |
| CONTROLLER | Intel® HD Graphics 510/620 |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz |
| DISPLAY INTERFACE | HDMI 1.4 x 1, 3840 x 2160 @30Hz DDI (Via BIO, Optional) |
| MULTIPLE DISPLAY | Up to 3 Simultaneous Displays |
| Audio | |
| CODEC | Realtek ALC269 |
| AUDIO INTERFACE | Line-out |
| EXTERNAL I/O | |
| ETHERNET | Realtek 8111 1GbE, RJ45 x 2 |
| USB | USB 3.2 Gen1 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4 x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 2 |
| SERIAL PORT | COM1 (RS232) COM2 (RS232/422/485, support 5V/12V/RI) |
| VIDEO | LVDS x 1 |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| AUDIO | Line-out |
| DIO/GPIO | GPIO 4-bit |
| SMBUS/I2C | I2C/SMBus x1 (Default: SMBus) |
| FAN | 4pins Smart Fan x1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| MINI PCI-E/MSATA | — |
| M.2 | M.2 2242 B-Key x 1 (PCIe 3.0 [x1]/SATA, Default: mSATA, select with BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 163,000 |
| EMC | CE/FCC Class A |
PICO-KBU4-A10-0002
| SYSTEM | |
| Form Factor | PICO-ITX |
| CPU | 7th Generation Intel® Core™ i3-7100U (2C/4T, 2.40GHz, 15W) |
| CHIPSET | Integrated with Intel® SoC |
| Memory Type | DDR4 2133, SODIMM x 1, Non-ECC (Max. 16GB) |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | — |
| RTC BATTERY | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs. (0.08 kg) |
| OS Support | Windows 10 (64 bit) Linux Ubuntu 16.04.3/Kernel 4.10.0 |
| Power | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | Phoenix 2-pin Connector (Default) Lockable DC Jack Connector (colay) |
| POWER CONSUMPTION | Intel® Core™ i7-7600U , DDR4 16GB, 1.53A@ +12V(TYPICAL) |
| Display | |
| CONTROLLER | Intel® HD Graphics 510/620 |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz |
| DISPLAY INTERFACE | HDMI 1.4 x 1, 3840 x 2160 @30Hz DDI (Via BIO, Optional) |
| MULTIPLE DISPLAY | Up to 3 Simultaneous Displays |
| Audio | |
| CODEC | Realtek ALC269 |
| AUDIO INTERFACE | Line-out |
| EXTERNAL I/O | |
| ETHERNET | Realtek 8111 1GbE, RJ45 x 2 |
| USB | USB 3.2 Gen1 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4 x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 2 |
| SERIAL PORT | COM1 (RS232) COM2 (RS232/422/485, support 5V/12V/RI) |
| VIDEO | LVDS x 1 |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| AUDIO | Line-out |
| DIO/GPIO | GPIO 4-bit |
| SMBUS/I2C | I2C/SMBus x1 (Default: SMBus) |
| FAN | 4pins Smart Fan x1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| MINI PCI-E/MSATA | — |
| M.2 | M.2 2242 B-Key x 1 (PCIe 3.0 [x1]/SATA, Default: mSATA, select with BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 163,000 |
| EMC | CE/FCC Class A |
PICO-KBU4-A10-0003
| SYSTEM | |
| Form Factor | PICO-ITX |
| CPU | 7th Generation Intel® Core™ i5-7300U (2C/4T, 2.60GHz, 15W) |
| CHIPSET | Integrated with Intel® SoC |
| Memory Type | DDR4 2133, SODIMM x 1, Non-ECC (Max. 16GB) |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | — |
| RTC BATTERY | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs (0.08 kg) |
| OS Support | Windows 10 (64 bit) Linux Ubuntu 16.04.3/Kernel 4.10.0 |
| Power | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | Phoenix 2-pin Connector (Default) Lockable DC Jack Connector (colay) |
| POWER CONSUMPTION | Intel® Core™ i7-7600U , DDR4 16GB, 1.53A@ +12V(TYPICAL) |
| Display | |
| CONTROLLER | Intel® HD Graphics 510/620 |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz |
| DISPLAY INTERFACE | HDMI 1.4 x 1, 3840 x 2160 @30Hz DDI (Via BIO) |
| MULTIPLE DISPLAY | Up to 3 Simultaneous Displays |
| Audio | |
| CODEC | Realtek ALC269 |
| AUDIO INTERFACE | Line-out |
| EXTERNAL I/O | |
| ETHERNET | Realtek 8111 1GbE, RJ45 x 2 |
| USB | USB 3.2 Gen1 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4 x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 2 |
| SERIAL PORT | COM1 (RS232) COM2 (RS232/422/485, support 5V/12V/RI) |
| VIDEO | LVDS x 1 |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| AUDIO | Line-out |
| DIO/GPIO | GPIO 4-bit |
| SMBUS/I2C | I2C/SMBus x1 (Default: SMBus) |
| FAN | 4pins Smart Fan x1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| MINI PCI-E/MSATA | — |
| M.2 | M.2 2242 B-Key x 1 (PCIe 3.0 [x1]/SATA, Default: mSATA, select with BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) |
| OTHERS | BIO x 1 (supports PCIe [x1] x 2, line out, DDI, GPIO, LPC, SMBUS/ I2C,USB.3.0/2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 163,000 |
| EMC | CE/FCC Class A |
PICO-KBU4-A10-0004
| SYSTEM | |
| Form Factor | PICO-ITX |
| CPU | 7th Generation Intel® Core™ i7-7600U (2C/4T, 2.80GHz, 15W) |
| CHIPSET | Integrated with Intel® SoC |
| Memory Type | DDR4 2133, SODIMM x 1, Non-ECC (Max. 16GB) |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | — |
| RTC BATTERY | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs. (0.08 kg) |
| OS Support | Windows 10 (64 bit) Linux Ubuntu 16.04.3/Kernel 4.10.0 |
| Power | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | Phoenix 2-pin Connector (Default) Lockable DC Jack Connector (colay) |
| POWER CONSUMPTION | Intel® Core™ i7-7600U , DDR4 16GB, 1.53A@ +12V(TYPICAL) |
| Display | |
| CONTROLLER | Intel® HD Graphics 510/620 |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz |
| DISPLAY INTERFACE | HDMI 1.4 x 1, 3840 x 2160 @30Hz DDI (Via BIO) |
| MULTIPLE DISPLAY | Up to 3 Simultaneous Displays |
| Audio | |
| CODEC | Realtek ALC269 |
| AUDIO INTERFACE | Line-out |
| EXTERNAL I/O | |
| ETHERNET | Realtek 8111 1GbE, RJ45 x 2 |
| USB | USB 3.2 Gen1 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4 x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 2 |
| SERIAL PORT | COM1 (RS232) COM2 (RS232/422/485, support 5V/12V/RI) |
| VIDEO | LVDS x 1 |
| SATA | SATA 6.0 Gb/s x 1, +5V SATA Power Connector x 1 |
| AUDIO | Line-out |
| DIO/GPIO | GPIO 4-bit |
| SMBUS/I2C | I2C/SMBus x1 (Default: SMBus) |
| FAN | 4pins Smart Fan x1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| MINI PCI-E/MSATA | — |
| M.2 | M.2 2242 B-Key x 1 (PCIe 3.0 [x1]/SATA, Default: mSATA, select with BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) |
| OTHERS | BIO x 1 (supports PCIe [x1] x 2, line out, DDI, GPIO, LPC, SMBUS/ I2C,USB.3.0/2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 163,000 |
| EMC | CE/FCC Class A |
