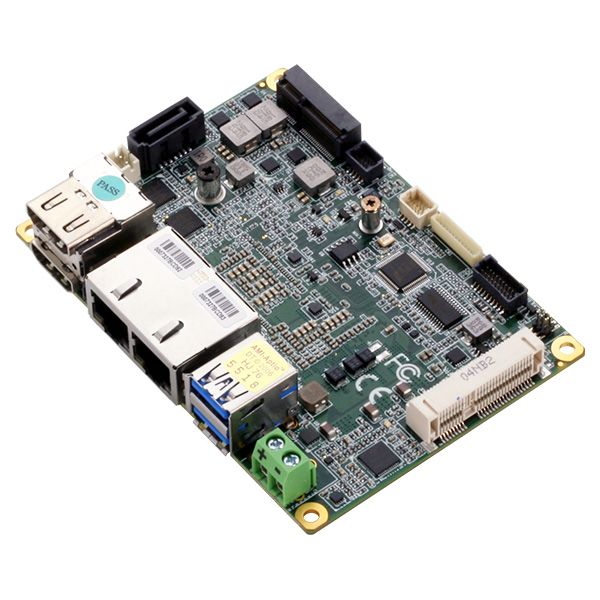

Pico-ITX Board with 8th Generation Intel® Core™ i7/i5/i3 U-Series Processor SoC
As low as US$822.00
Availability: In stock
Inventory: please select an item
SKU
PICO-WHU4

  • 8th Gen Intel® Core™ i7/i5/i3 Processor SoC
  • Non-ECC DDR4 SODIMM Slot x 1, up to 32GB
  • Dual HDMI ports (HDMI 1.4b)
  • GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 4
  • USB 3.2 Gen 2 x 2 (Rear), USB 2.0 x 2 Pin header, RS-232/422/485 x 2
  • Full size mSATA/mPCIe x 1 (Select by BIOS), M.2 2230 (E key) x 1
  • 12V Only (Terminal block and DC barrel co-design)

Note: To achieve the best performance, it is recommended that you order the Cooler/ Heat-spreader together with the PICO-WHU4.

PICO-WHU4 is a compact PICO-ITX board featuring 8th Generation Intel® Core™ Processors designed for AI and Edge Computing.

The PICO-WHU4 from AAEON is the latest in compact embedded computing from AAEON. Powered by 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake) and supporting up to 16 GB of RAM, this compact PICO-ITX board is capable of powering a range of AI and Edge Computing applications from Smart Retail to Smart City. PICO-WHU4 offers I/O features to allow flexibility for easy integration into existing systems and projects.

Powered by Intel®

PICO-WHU4 is powered by the 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake), providing high computing performance on a compact board.

Compact Embedded Board

The PICO-ITX form factor is perfect for projects which require high performance from a small board. PICO-WHU4 also offers wide operating temperature range (0°C-60°C) so it can work almost anywhere.

Built for AI@Edge

PICO-WHU4 is built to power AI and edge computing applications, with support for a range of frameworks. PICO-WHU4 also supports expansion cards like AI Core X with Intel® Movidius® Myriad™ X for even more AI@Edge processing power.

I/O Flexibility

PICO-WHU4 features a host of I/O ports perfect for embedded operations or powering AI@Edge applications, including four USB3.2 Gen 2 ports, two Ethernet ports, and two COM headers.

Turn Key System

AAEON offers customers the ability to customize their PICO-WHU4, including the turn-key PICO-WHU4-SEMI embedded system, allowing you to get your project up and running quickly.

Note: To achieve the best performance, it is recommended that you order the Cooler/ Heat-spreader together with the PICO-WHU4.

PICO-WHU4-A11-0002
SYSTEM
Form Factor PICO-ITX
CPU Intel® 8th Generation Core™ i3-8145UE (2C/4T, 2.20GHz, 15W)
CHIPSET Integrated with Intel® SoC
Memory Type DDR4 2400, SODIMM x 1, Non-ECC (Max. 32GB)
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security
RTC BATTERY Lithium Battery 3V/240mAh
Dimension (L x W) 3.94" x 2.84" (100mm x 72mm)
Gross Weight 0.18 lbs. (0.08 kg)
OS Support Windows 10 (64 bit)
Linux Ubuntu 18.04.3/Kernel 5.3.0-51-generic
Power
POWER REQUIREMENT +12V
POWER SUPPLY TYPE AT/ATX
CONNECTOR Phoenix 2-pin Connector (Default)
Lockable DC Jack Connector (colay)
POWER CONSUMPTION Intel® i7-8665UE @ DDR4 16GB, 2.23A@ +12V(TYPICAL)
Display
CONTROLLER Intel® UHD Graphics 610/620
LVDS/eDP
DISPLAY INTERFACE HDMI 1.4 x 2, up to 3840 x 2160 @30Hz
MULTIPLE DISPLAY Up to 2 Simultaneous Displays
EXTERNAL I/O
ETHERNET Realtek 8111 1GbE, RJ45 x 2
USB USB 3.2 Gen 2 x 2
SERIAL PORT
VIDEO HDMI 1.4 x 2
INTERNAL I/O
USB USB2.0 x 2
SERIAL PORT COM1~2 (RS232/422/485, support 5V/12V/RI)
SATA SATA 6.0 Gb/s x 1
+5V SATA Power Connector x 1
AUDIO
DIO/GPIO GPIO 4-bit
SMBUS/I2C I2C/SMBus x1 (Default: SMBus)
FAN 4pins Smart Fan x1
FRONT PANEL HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA Full-Size mSATA/mPCIe x 1 (Default: mPCIe, select with BIOS)
M.2 M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0)
OTHERS
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE -40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
MTBF (HOURS) 298,762
EMC CE/FCC Class A
PICO-WHU4-A11-0003
SYSTEM
Form Factor PICO-ITX
CPU Intel® 8th Generation Core™ i5-8365UE (4C/8T, 1.60GHz, 15W)
CHIPSET Integrated with Intel® SoC
Memory Type DDR4 2400, SODIMM x 1, Non-ECC (Max. 32GB)
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security
RTC BATTERY Lithium Battery 3V/240mAh
Dimension (L x W) 3.94" x 2.84" (100mm x 72mm)
Gross Weight 0.18 lbs. (0.08 kg)
OS Support Windows 10 (64 bit)
Linux Ubuntu 18.04.3/Kernel 5.3.0-51-generic
Power
POWER REQUIREMENT +12V
POWER SUPPLY TYPE AT/ATX
CONNECTOR Phoenix 2-pin Connector (Default)
Lockable DC Jack Connector (colay)
POWER CONSUMPTION Intel® i7-8665UE @ DDR4 16GB, 2.23A@ +12V(TYPICAL)
Display
CONTROLLER Intel® UHD Graphics 610/620
LVDS/eDP
DISPLAY INTERFACE HDMI 1.4 x 2, up to 3840 x 2160 @30Hz
MULTIPLE DISPLAY Up to 2 Simultaneous Displays
EXTERNAL I/O
ETHERNET Realtek 8111 1GbE, RJ45 x 2
USB USB 3.2 Gen 2 x 2
SERIAL PORT
VIDEO HDMI 1.4 x 2
INTERNAL I/O
USB USB2.0 x 2
SERIAL PORT COM1~2 (RS232/422/485, support 5V/12V/RI)
SATA SATA 6.0 Gb/s x 1
+5V SATA Power Connector x 1
AUDIO
DIO/GPIO GPIO 4-bit
SMBUS/I2C I2C/SMBus x1 (Default: SMBus)
FAN 4pins Smart Fan x1
FRONT PANEL HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA Full-Size mSATA/mPCIe x 1 (Default: mPCIe, select with BIOS)
M.2 M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0)
OTHERS
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE -40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
MTBF (HOURS) 298,762
EMC CE/FCC Class A
PICO-WHU4-A11-0004
SYSTEM
Form Factor PICO-ITX
CPU Intel® 8th Generation Core™ i7-8665UE (4C/8T, 1.70GHz, 15W)
CHIPSET Integrated with Intel® SoC
Memory Type DDR4 2400, SODIMM x 1, Non-ECC (Max. 32GB)
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security
RTC BATTERY Lithium Battery 3V/240mAh
Dimension (L x W) 3.94" x 2.84" (100mm x 72mm)
Gross Weight 0.18 lbs. (0.08 kg)
OS Support Windows 10 (64 bit)
Linux Ubuntu 18.04.3/Kernel 5.3.0-51-generic
Power
POWER REQUIREMENT +12V
POWER SUPPLY TYPE AT/ATX
CONNECTOR Phoenix 2-pin Connector (Default)
Lockable DC Jack Connector (colay)
POWER CONSUMPTION Intel® i7-8665UE @ DDR4 16GB, 2.23A@ +12V(TYPICAL)
Display
CONTROLLER Intel® UHD Graphics 610/620
LVDS/eDP
DISPLAY INTERFACE HDMI 1.4 x 2, up to 3840 x 2160 @30Hz
MULTIPLE DISPLAY Up to 2 Simultaneous Displays
EXTERNAL I/O
ETHERNET Realtek 8111 1GbE, RJ45 x 2
USB USB 3.2 Gen 2 x 2
SERIAL PORT
VIDEO HDMI 1.4 x 2
INTERNAL I/O
USB USB2.0 x 2
SERIAL PORT COM1~2 (RS232/422/485, support 5V/12V/RI)
SATA SATA 6.0 Gb/s x 1
+5V SATA Power Connector x 1
AUDIO
DIO/GPIO GPIO 4-bit
SMBUS/I2C I2C/SMBus x1 (Default: SMBus)
FAN 4pins Smart Fan x1
FRONT PANEL HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA Full-Size mSATA/mPCIe x 1 (Default: mPCIe, select with BIOS)
M.2 M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0)
OTHERS
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE -40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
MTBF (HOURS) 298,762
EMC CE/FCC Class A
PICO-WHU4W2-A11-0004

SYSTEM
Form Factor PICO-ITX
CPU Intel® 8th Generation Core™ i7-8665UE (4C/8T, 1.70GHz, 15W)
CHIPSET Integrated with Intel® SoC
Memory Type DDR4 2400, SODIMM x 1, Non-ECC (Max. 32GB)
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security
RTC BATTERY Lithium Battery 3V/240mAh
Dimension (L x W) 3.94" x 2.84" (100mm x 72mm)
Gross Weight 0.18 lbs. (0.08 kg)
OS Support Windows 10 (64 bit)
Linux Ubuntu 18.04.3/Kernel 5.3.0-51-generic
Power
POWER REQUIREMENT +12V
POWER SUPPLY TYPE AT/ATX
CONNECTOR Phoenix 2-pin Connector (Default)
Lockable DC Jack Connector (colay)
POWER CONSUMPTION Intel® i7-8665UE @ DDR4 16GB, 2.23A@ +12V(TYPICAL)
Display
CONTROLLER Intel® UHD Graphics 610/620
LVDS/eDP
DISPLAY INTERFACE HDMI 1.4 x 2, up to 3840 x 2160 @30Hz
MULTIPLE DISPLAY Up to 2 Simultaneous Displays
EXTERNAL I/O
ETHERNET Realtek 8111 1GbE, RJ45 x 2
USB USB 3.2 Gen 2 x 2
SERIAL PORT
VIDEO HDMI 1.4 x 2
INTERNAL I/O
USB USB2.0 x 2
SERIAL PORT COM1~2 (RS232/422/485, support 5V/12V/RI)
SATA SATA 6.0 Gb/s x 1
+5V SATA Power Connector x 1
AUDIO
DIO/GPIO GPIO 4-bit
SMBUS/I2C I2C/SMBus x1 (Default: SMBus)
FAN 4pins Smart Fan x1
FRONT PANEL HDD LED, PWR LED, Power Button, Buzzer, Reset
EXPANSION
MINI PCI-E/MSATA Full-Size mSATA/mPCIe x 1 (Default: mPCIe, select with BIOS)
M.2 M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0)
OTHERS
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE WiTAS 2 -40°F ~ 185°F (-40°C ~ 85°C)
STORAGE TEMPERATURE -40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
MTBF (HOURS) 298,762
EMC CE/FCC Class A
