UP Squared 7100 Edge
UP Squared 7100 edge system with Intel® Processor N97 SoC
US$352.00
Availability:
Out of stock
SKU
UPS-EDGE-ASLN97-A10-0864
- Intel® Processor N97 SoC
- Onboard LPDDR5 Memory, default with 8GB
- Onboard eMMC Storage, default with 64GB
- Gb Ethernet (full speed) RJ-45 x 2
- USB 3.2 Type A x 3
- DP 1.2 / HDMI 2.0b / eDP 1.3
- RS232/422/485 x 2
- M.2 2230 E-Key x 1
- M.2 2280 M-Key x 1
- TPM 2.0
- 12V DC-in
Note: If you would like to order additional components (PCIe SSD/OS) for a more complete system, please contact AAEON sales for more options and assistance.
An UP favorite for integrators across automation and digital signage, the latest of the UP Squared Edge series of Mini PCs offers valuable upgrades to key functions with the introduction of the UP Squared 7100 Edge.
Equipped with both HDMI 2.0 and DP 1.4, the PC offers two simultaneous 4K displays, while also granting an additional COM port, meaning users have dual DB-9 ports supporting RS-232/422/485 alongside its pair of LAN and trio of USB Type-A ports to grant more scalable industrial communication capabilities.
Designed to make automation easy
| SYSTEM | |
| CPU | Intel® Processor N97 |
| Memory | 8GB LPDDR5 |
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |
| Storage | 64GB eMMC |
| Ethernet | Gb Ethernet (full speed) RJ-45 x 2 |
| WIFI/BT | Optional with M.2 2230 E-key x 1 |
| Expansion Slot | M.2 2230 E-Key x 1 (PCIe x1, USB2.0 x1) M.2 2280 M-key x 1 (PCIe x2) |
| Security | Onboard TPM 2.0 |
| OS Support | Microsoft Windows 10/11 Ubuntu 22.04 LTS Yocto 5.1 |
| I/O Placements | |
| USB | USB 2.0 x 2 (via 10 Pin Header x 1) USB 3.2 Gen 2 x 3 (Type-A) |
| Display Port | HDMI 2.0b x 1 DP 1.2 x 1 |
| Ethernet | Gb Ethernet (full speed) RJ-45 x 2 |
| COM | RS-232/422/485 x 2 |
| Audio | Line out x 1 Mic in x 1 |
| GPIO | — |
| POWER Supply | |
| Power requirement | 12V DC-in, 5A |
| Power Supply Type | AT/ATX |
| Power Consumption (Typical) | 15W~37W |
| Mechanical | |
| Mounting | VESA Mounting |

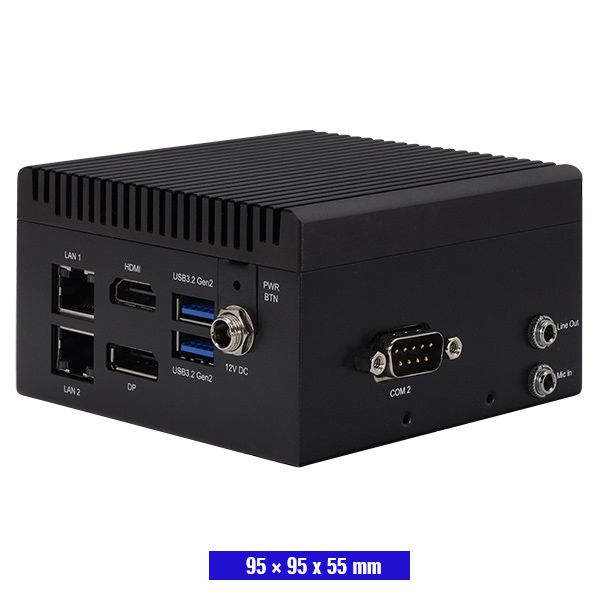

| Dimensions (WxHxD) | 3.74" x 3.74" x 2.16" (95 x 95 x 55 mm) |
| Net Weight | 0.99lb (450g) |
| Gross Weight | 1.32lb (600g) |
| Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°) / 0.5 airflow |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| MTBF | 1,224,238 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
- UP Squared 7100 Edge x 1
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
| *If you have any other accessory needs, please contact us. | |
