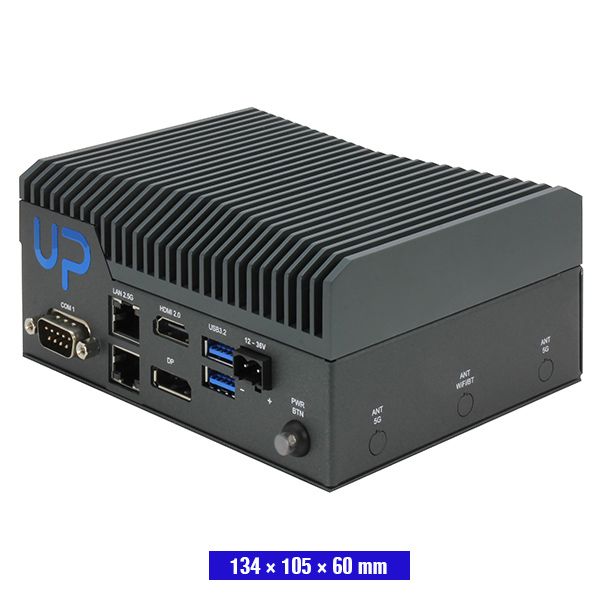

UP Squared Pro 710H Edge

Edge AI System with Intel® Processor N97, and Intel® Core™ i3-N305 Processors
As low as US$568.00
Availability: In stock
Inventory: please select an item
SKU
UP Squared Pro 710H Edge

  • Intel® Processor N97, and Intel® Core™ i3-N305 Processors
  • Onboard Hailo-8™ edge AI processor
  • Onboard LPDDR5 Memory, up to 16GB
  • Onboard eMMC Storage, up to 128GB
  • 2.5GbE x 2 (Intel® I226-IT)
  • USB 3.2 (Type-A) x 2
  • 40-pin GPIO x 1
  • DP 1.2 x 1/HDMI 2.0b x 1
  • RS-232/422/485 x 2
  • M.2 2230 E-Key/M.2 2280 M-Key (Optional: M.2 3052 B-Key x 1)
  • Onboard TPM 2.0
  • 12V~36V DC-in with Phoenix Connector

The UP Squared Pro 710H Edge (UPN-EDGE-ASLH) combines the edge AI functionality of the Hailo-8™ edge AI processor with the power-efficient operation of the Intel® Processor N-series, providing a streamlined deployment platform for a range of versatile market solutions. Optimized connectivity options, multiple display outputs, and wireless expansion offer multifaceted interface configurations with which to curate project-driven applications, while purpose-built drivers grant access to Hailo's software suites for Ubuntu and Windows to facilitate development, all in one place.

Integrated AI Acceleration

With its integrated Hailo-8™ edge AI processor, the UP Squared Pro 710H Edge provides a shortcut to machine learning frameworks and pre-trained models through a comprehensive AI software suite. Coupled with a choice of either the Intel® Core™ i3-N305 or Intel® Processor N97 CPU, the UP Squared Pro 710H Edge maintains exceptional power-efficiency, even when handling complex tasks such as AI inferencing, data analytics, and multimedia processing.

Peripheral Synchronization

The UP Squared Pro 710H Edge brings unmatched peripheral support to a compact, mountable fanless PC, with dual 2.5GbE, dual COM, and dual USB ports, along with a 40-pin GPIO to facilitate the installation of cameras, sensors, and industrial communication protocols. Alongside a broad 12V ~ 36V power input range and multiple mounting options, the UP Squared Pro 710H Edge represents an ideal platform with which to build identity management, AMR, and smart advertising devices.

Streamlined Expansion

Conveniently grouped bottom-side expansion slots grant users access to Wi-Fi, 4G/5G, and additional storage, optimizing the device's connectivity for low-latency edge-to-cloud communication. Additionally, this expansion provides the opportunity to scale the AI performance of the system, combining the 26 TOPS of its Hailo-8™ edge AI processor with additional AI acceleration cards. The system also befits digital signage, kiosk, and healthcare imaging, with HDMI and DP ports utilizing Intel® UHD Graphics for 12th Gen Intel® Processors to enable multiple high-quality video outputs.

UPN-EDGE-ASLHI3-A10-16128

SYSTEM
CPU Intel® Core™ i3-N305 (8C, 1.80 GHz, 15W)
Onboard Hailo-8™ edge AI processor
Memory 16GB onboard LPDDR5
Graphics Intel® UHD Graphics for 12th Gen Intel® Processors
Storage 128GB onboard eMMC
Ethernet 2.5GbE x 2 (Intel® I226-IT)
WIFI/BT Optional with M.2 2230 E-key x 1
Expansion Slot M.2 2230 E-Key x 1 (CNVI, PCIe Gen 3 [x1], USB 2.0)
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]), Optional: M.2 3052 B-Key with Nano
SIM slot (USB 3.0)
Security Onboard TPM 2.0
OS Support Windows® 10 IoT Enterprise
Ubuntu 22.04 LTS
I/O Placements
USB USB 3.2 Gen 2 x 2 (Type-A)
Display Port HDMI 2.0b x 1
DP 1.2 x 1
Ethernet 2.5GbE x 2 (Intel® I226-IT)
COM RS-232/422/485 x 2
Audio
GPIO 40-pin GPIO x 1
POWER Supply
Power requirement 12V-36V DC-in Phoenix connector (Optional: Lockable plug)
Power Supply Type AT/ATX (AT as default)
Power Consumption (Typical) 50W~55W
Mechanical
Mounting VESA Mount/Wall Mount/DIN RAIL (Optional)
Dimensions (WxHxD) 5.28" x 4.13" x 2.36" (134mm x 105mm x 60mm)
Net Weight 1.8 lbs (0.69kg)
Gross Weight 2.2 lbs (0.97kg)
Environment
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow
Operation Humidity 0% ~ 90% relative humidity, non-condensing
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
MTBF 422,053 Hours
Certification CE/FCC Class A, RoHS Compliant, REACH
UPN-EDGE-ASLHN97-A10-0864

SYSTEM
CPU Intel® Processor N97 (4C, 2.00 GHz, 12W)
Onboard Hailo-8™ edge AI processor
Memory 8GB onboard LPDDR5
Graphics Intel® UHD Graphics for 12th Gen Intel® Processors
Storage 64GB onboard eMMC
Ethernet 2.5GbE x 2 (Intel® I226-IT)
WIFI/BT Optional with M.2 2230 E-key x 1
Expansion Slot M.2 2230 E-Key x 1 (CNVI, PCIe Gen 3 [x1], USB 2.0)
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]), Optional: M.2 3052 B-Key with Nano
SIM slot (USB 3.0)
Security Onboard TPM 2.0
OS Support Windows® 10 IoT Enterprise
Ubuntu 22.04 LTS
I/O Placements
USB USB 3.2 Gen 2 x 2 (Type-A)
Display Port HDMI 2.0b x 1
DP 1.2 x 1
Ethernet 2.5GbE x 2 (Intel® I226-IT)
COM RS-232/422/485 x 2
Audio
GPIO 40-pin GPIO x 1
POWER Supply
Power requirement 12V-36V DC-in Phoenix connector (Optional: Lockable plug)
Power Supply Type AT/ATX (AT as default)
Power Consumption (Typical) 50W~55W
Mechanical
Mounting VESA Mount/Wall Mount/DIN RAIL (Optional)
Dimensions (WxHxD) 5.28" x 4.13" x 2.36" (134mm x 105mm x 60mm)
Net Weight 1.8 lbs (0.69kg)
Gross Weight 2.2 lbs (0.97kg)
Environment
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow
Operation Humidity 0% ~ 90% relative humidity, non-condensing
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
MTBF 422,053 Hours
Certification CE/FCC Class A, RoHS Compliant, REACH
  • UP Squared Pro 710H Edge x 1
  • DC in Phoenix Connector x 1



Optional Accessories
Item DESCRIPTION

Power Adapter

The power adapter is not included in the packing list.
Please click HERE if you'd like to add the adapter to your order.
  *If you have any other accessory needs, please contact us.
