UP 7000 Edge

UP 7000 System with Intel® Processor N97 (formerly Alder Lake N)

US$285.00

Availability: In stock

Only 1 left

SKU

UP-EDGE-ADLN97-A10-0864

UP 7000 System with Intel® Processor N97 (formerly Alder Lake N)

SYSTEM
CPU	Intel® Processor N97
Memory	8GB LPDDR5
Graphics	Intel® UHD Graphics for 12th Gen Intel® Processors
Storage	64GB eMMC
Ethernet	1GbE RJ-45 x 1 (Realtek RTL8111H CG)
WIFI/BT	—
Expansion Slot	HDMI 1.4b/USB 3.2 Gen 2 STACK Connector x 1 (Type-A) Power Button x 1
Security	Onboard TPM 2.0
OS Support	Windows 10 LTSC 2021 Linux: Ubuntu 22.04 LTS/Kernel 5.15, Yocto 4.0
I/O Placements
USB	USB 3.2 Gen 2 (Type-A) x 3
Display Port	HDMI 1.4b x 1
Ethernet	1GbE RJ-45 x 1 (Realtek RTL8111H CG)
Power Supply
Power requirement	12V DC-in, 5A
Power supply type	AT/ATX (ATX as default)
Power Consumption (Typical)	30W~36W
Mechanical
Mounting	VESA Mount (optional)

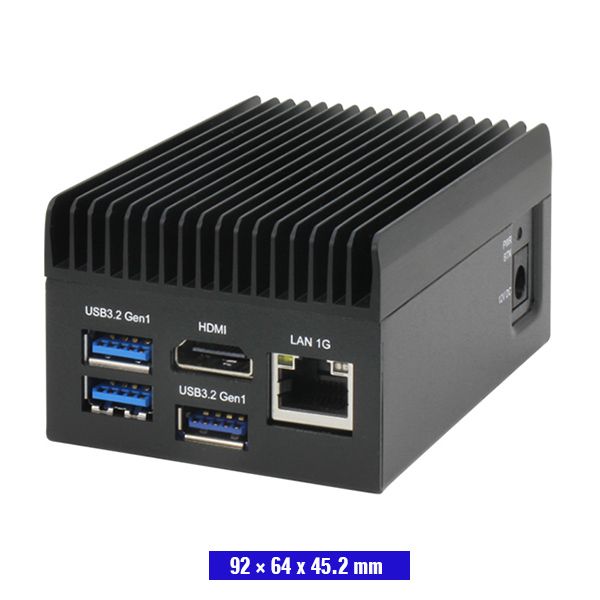

Dimensions (WxHxD)	3.62" x 2.52" x 1.78" (92mm x 64mm x 45.2mm)
Net Weight	0.68 lbs (0.31kg)
Gross Weight	1.04 lbs (0.47kg)
Environment
Operating Temperature	32°F ~ 131°F (0°C ~ 55°C) with 0.5m/s air flow
Operating Humidity	10% ~ 80% relative humidity, non-condensing
Storage Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
MTBF	685,218 Hours
Certification	CE/FCC Class A, RoHS Compliant, REACH

Optional Accessories
Item	DESCRIPTION
Power Adapter	The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order.
	*If you have any other accessory needs, please contact us.
