de next-TGU8-EZBOX

de next system with onboard 11th Gen. Intel® Core™ i7/i5/i3 Processor

As low as US$850.00

Availability: In stock

Inventory: please select an item

SKU

de next-TGU8-EZBOX

Onboard 11th Gen. Intel® Core™ i7/i5/i3 Processor, TDP 15W
Onboard LPDDR4x 3733 up to 16GB
HDMI 1.4b x 1
2.5GbE RJ45 x 1, GbE RJ45 x 1
USB 3.2 Gen 2 x 2
M.2 2280 M-Key x 1 (PCIe [x2] x 1)
DC 12V in

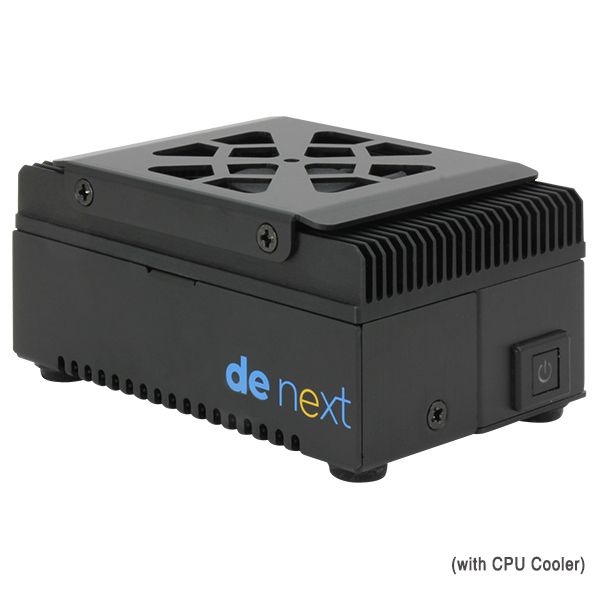

Multiple Dissipation Solutions: with CPU Cooler/ Heatsink

Price Drop Notification

Qty:

Details

The de next-TUG8 broke board-space limitations, now the de next-TUG8-EZBOX is smashing system limits. The de next line's inaugural system-level offering, the de next-TUG8-EZBOX, is the world's smallest edge system with an embedded Intel® Core™ processor. Designed as a fanless, out of the box solution, the de next-TUG8-EZBOX pairs 11th Gen Intel® Core™ processing performance with a broad spectrum I/O in a compact Mini PC, making it ideal for embedded applications ranging from industrial IoT Gateway to smart kiosk deployments.

AAEON's de next ecosystem has everything you need to develop multi-market solutions with high-speed industrial-level performance. The de next-TUG8-EZBOX offers an easily deployable plug-and-play system, while the de next-TGU8 provides all the tools needed to accelerate projects to mass production, including features such as modular active cooling and wide -40°C ~ 85°C temperature support.

To expand the potential of your de next board, modules such as the PER-T642 and PER-T643 offer Wi-Fi, 4G, and AI acceleration functions, while the PER-R41P offers PCIe [x4] support with a Riser kit to provide additional LAN interfaces, storage capacity, or graphic capture cards.

Specification

DENEXT-TGU8-EBX-A10-P001

SYSTEM
FORM FACTOR	de next System
CPU	Onboard 11th Gen Intel® Core™ Processors Intel® Core™ i3-1115G4E (2C/4T, 2.20 GHz, 15W)
CHIPSET	Integrated with Intel® SoC
MEMORY TYPE	Onboard LPDDR4x 3733, 16GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	fTPM
RTC Battery	Lithium Battery 3V/240mAh
DIMENSION	3.75" x 2.73" x 1.67" (95.5mm x 69.5mm x 42.5mm), with Heatsink Version
OS SUPPORT	Windows 10 (64bit) Ubuntu 20.04.4 (Kernel 5.13)
POWER
POWER REQUIREMENT	+12V
POWER SUPPLY TYPE	AT/ATX
CONNECTOR	DC Jack Connector
POWER CONSUMPTION	Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 4.58A@12V, 55W (Typical) Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 7A@12V, 84W (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics for 11th Gen Intel® Processors
DISPLAY INTERFACE	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
Multiple Display	Single Display
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I225/I226, 2.5GbE RJ-45 x 1 Intel® Ethernet Connection I219, 1GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
INTERNAL I/O
FAN	—
EXPANSION
M.2	M.2 2280 M-Key x 1 (PCIe 4.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	14°F ~122°F (-10°C~50°C) with 0.7m/sec air flow
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	609,263
CERTIFICATION	CE/FCC Class A

DENEXT-TGU8-EBX-A10-A003

*【Pre-Order】Lead time: 6-8 weeks

SYSTEM
FORM FACTOR	de next System
CPU	Onboard 11th Gen Intel® Core™ Processors Intel® Core™ i3-1115G4E (2C/4T, 2.20 GHz, 15W)
CHIPSET	Integrated with Intel® SoC
MEMORY TYPE	Onboard LPDDR4x 3733, 16GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	fTPM
RTC Battery	Lithium Battery 3V/240mAh
DIMENSION	3.75" x 2.73" x 1.78" (95.5mm x 69.5mm x 45.4mm) with cooler
OS SUPPORT	Windows 10 (64bit) Ubuntu 20.04.4 (Kernel 5.13)
POWER
POWER REQUIREMENT	+12V
POWER SUPPLY TYPE	AT/ATX
CONNECTOR	DC Jack Connector
POWER CONSUMPTION	Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 4.58A@12V, 55W (Typical) Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 7A@12V, 84W (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics for 11th Gen Intel® Processors
DISPLAY INTERFACE	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
Multiple Display	Single Display
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I225/I226, 2.5GbE RJ-45 x 1 Intel® Ethernet Connection I219, 1GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
INTERNAL I/O
FAN	4 Pin Smart Fan
EXPANSION
M.2	M.2 2280 M-Key x 1 (PCIe 4.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	14°F ~122°F (-10°C~50°C) with 0.7m/sec air flow
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	609,263
CERTIFICATION	CE/FCC Class A

DENEXT-TGU8-EBX-A10-A002

*【Pre-Order】Lead time: 6-8 weeks

SYSTEM
FORM FACTOR	de next System
CPU	Onboard 11th Gen Intel® Core™ Processors Intel® Core™ i5-1145G7E (4C/8T, 1.50 GHz, 15W)
CHIPSET	Integrated with Intel® SoC
MEMORY TYPE	Onboard LPDDR4x 3733, 16GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	fTPM
RTC Battery	Lithium Battery 3V/240mAh
DIMENSION	3.75" x 2.73" x 1.78" (95.5mm x 69.5mm x 45.4mm) with cooler
OS SUPPORT	Windows 10 (64bit) Ubuntu 20.04.4 (Kernel 5.13)
POWER
POWER REQUIREMENT	+12V
POWER SUPPLY TYPE	AT/ATX
CONNECTOR	DC Jack Connector
POWER CONSUMPTION	Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 4.58A@12V, 55W (Typical) Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 7A@12V, 84W (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics for 11th Gen Intel® Processors
DISPLAY INTERFACE	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
Multiple Display	Single Display
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I225/I226, 2.5GbE RJ-45 x 1 Intel® Ethernet Connection I219, 1GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
INTERNAL I/O
FAN	4 Pin Smart Fan
EXPANSION
M.2	M.2 2280 M-Key x 1 (PCIe 4.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	14°F ~122°F (-10°C~50°C) with 0.7m/sec air flow
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	609,263
CERTIFICATION	CE/FCC Class A

DENEXT-TGU8-EBX-A10-A001

SYSTEM
FORM FACTOR	de next System
CPU	Onboard 11th Gen Intel® Core™ Processors Intel® Core™ i7-1185G7E (4C/8T, 1.80 GHz, 15W)
CHIPSET	Integrated with Intel® SoC
MEMORY TYPE	Onboard LPDDR4x 3733, 16GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	fTPM
RTC Battery	Lithium Battery 3V/240mAh
DIMENSION	3.75" x 2.73" x 1.78" (95.5mm x 69.5mm x 45.4mm) with cooler
OS SUPPORT	Windows 10 (64bit) Ubuntu 20.04.4 (Kernel 5.13)
POWER
POWER REQUIREMENT	+12V
POWER SUPPLY TYPE	AT/ATX
CONNECTOR	DC Jack Connector
POWER CONSUMPTION	Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 4.58A@12V, 55W (Typical) Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 7A@12V, 84W (Max)
DISPLAY
CONTROLLER	Intel® UHD Graphics for 11th Gen Intel® Processors
DISPLAY INTERFACE	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
Multiple Display	Single Display
EXTERNAL I/O
ETHERNET	Intel® Ethernet Controller I225/I226, 2.5GbE RJ-45 x 1 Intel® Ethernet Connection I219, 1GbE RJ-45 x 1
USB	USB 3.2 Gen 2 x 2
SERIAL PORT	—
VIDEO	HDMI 1.4b x 1, up to 3840 x 2160 @30Hz
INTERNAL I/O
FAN	4 Pin Smart Fan
EXPANSION
M.2	M.2 2280 M-Key x 1 (PCIe 4.0 [x2] x 1)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	14°F ~122°F (-10°C~50°C) with 0.7m/sec air flow
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	609,263
CERTIFICATION	CE/FCC Class A

Packing List

de next-TGU8-EZBOX x 1
Wall Mount Bracket & Screw x 1
Thermal Pad x 1

Optional Accessories
Item	DESCRIPTION
Power Adapter	The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order.
