GENE-ADN5

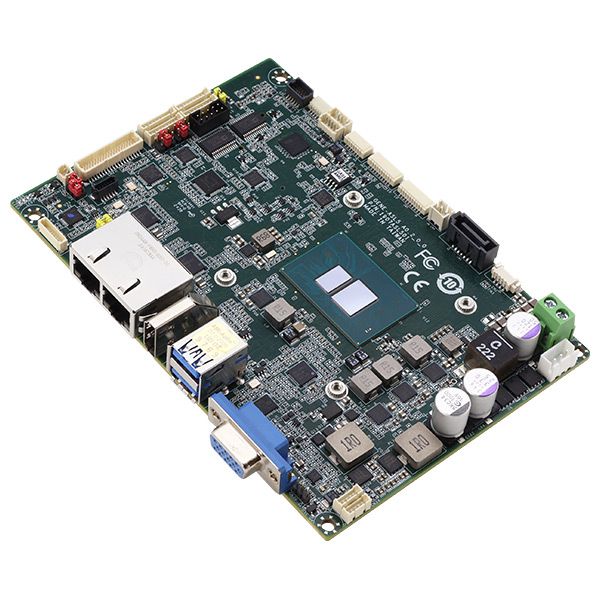

3.5" SubCompact Board with Intel® Processor N Series
As low as
US$355.00
Availability:
In stock
Inventory: please select an item
SKU
GENE-ADN5
3.5" SubCompact Board with Intel® Processor N Series
GENE-ADN5-A10-0001
| SYSTEM | |
| Form Factor | 3.5" SubCompact Board |
| CPU | Intel® Processor N-series: Intel® Processor N97 (4C/4T, 3.6 GHz, 12W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| BIOS | UEFI |
| Wake On Lan | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAH |
| Dimension | 5.75" x 4" (146mm x 101.7mm), 1.1 lb. (0.5Kg) |
| OS Support | Windows 10 (64bit), Windows 11 (64bit), Ubuntu 22.04 / Kernel 5.15.0-25-generic |
| Power | |
| Power Requirement | +9V~36V, support ERP |
| Power Supply Type | AT/ATX, support 3pin ATX |
| Connector | Phoenix 2-pin Connector (Colay 4 pin connector) |
| Power Consumption | Intel Atom® Core™ i3-N305, DDR5 16GB x 1, 4.05A @+12V (Typical) Intel Atom® Core™ i3-N305, DDR5 16GB x 1, 5.05A@+12V (Max) |
| Display | |
| Controller | Intel® UHD Graphics |
| LVDS/eDP | LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080 |
| Display Interface | HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x 1080 |
| Multiple Display | Up to 3 Simultaneous Displays |
| Audio | |
| Codec | Realtek ALC897 |
| Audio Interface | Line-In / Line-Out / Mic, (Audio function not available for WiTAS SKU) |
| Speaker | — |
| External I/O | |
| Ethernet | Intel® Ethernet Controller I226, 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 port |
| Serial Port | — |
| Video | HDMI 1.4 x 1, VGA x 1 |
| Internal I/O | |
| USB | USB 2.0 x 4 |
| Serial Port | COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232) |
| Video | LVDS x 1 eDP x 1 Inverter x 1 (12V/2A) |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| Audio | Audio Header x 1 (Audio function not available for WiTAS SKU) |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus / I2C x 1 (Default: SMBus) |
| Touch | 4/5/8 wire Touch Controller x 1 |
| Fan | 4pins Smart Fan x 1 |
| Sim | Nano SIM x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Expansion | |
| Mini PCI-E/mSATA | Full-size mSATA / mPCIe x 1 (Default: mPCIe, select by BIOS) |
| M.2 | M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2 Gen 2/PCIe 3.0 [x2] + USB 2.0, default: PCIe [x1] + USB 3.2 Gen 2, selected by BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0, support CNVi) |
| Environment & Certification | |
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 1,284,701 |
| EMC | CE/FCC Class A |
GENE-ADN5-A10-0002
| SYSTEM | |
| Form Factor | 3.5" SubCompact Board |
| CPU | Intel® Processor N-series: Intel® Core™ i3-N305 (8C/8T, 3.8 GHz, 15W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| BIOS | UEFI |
| Wake On Lan | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAH |
| Dimension | 5.75" x 4" (146mm x 101.7mm), 1.1 lb. (0.5Kg) |
| OS Support | Windows 10 (64bit), Windows 11 (64bit), Ubuntu 22.04 / Kernel 5.15.0-25-generic |
| Power | |
| Power Requirement | +9V~36V, support ERP |
| Power Supply Type | AT/ATX, support 3pin ATX |
| Connector | Phoenix 2-pin Connector (Colay 4 pin connector) |
| Power Consumption | Intel Atom® Core™ i3-N305, DDR5 16GB x 1, 4.05A @+12V (Typical) Intel Atom® Core™ i3-N305, DDR5 16GB x 1, 5.05A@+12V (Max) |
| Display | |
| Controller | Intel® UHD Graphics |
| LVDS/eDP | LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080 |
| Display Interface | HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x 1080 |
| Multiple Display | Up to 3 Simultaneous Displays |
| Audio | |
| Codec | Realtek ALC897 |
| Audio Interface | Line-In / Line-Out / Mic |
| Speaker | — |
| External I/O | |
| Ethernet | Intel® Ethernet Controller I226, 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 port |
| Serial Port | — |
| Video | HDMI 1.4 x 1, VGA x 1 |
| Internal I/O | |
| USB | USB 2.0 x 4 |
| Serial Port | COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232) |
| Video | LVDS x 1 eDP x 1 Inverter x 1 (12V/2A) |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| Audio | Audio Header x 1 |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus / I2C x 1 (Default: SMBus) |
| Touch | 4/5/8 wire Touch Controller x 1 |
| Fan | 4pins Smart Fan x 1 |
| Sim | Nano SIM x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Expansion | |
| Mini PCI-E/mSATA | Full-size mSATA / mPCIe x 1 (Default: mPCIe, select by BIOS) |
| M.2 | M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2 Gen 2/PCIe 3.0 [x2] + USB 2.0, default: PCIe [x1] + USB 3.2 Gen 2, selected by BIOS) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0, support CNVi) |
| Environment & Certification | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 1,284,701 |
| EMC | CE/FCC Class A |
- GENE-ADN5 with Heat Sink
