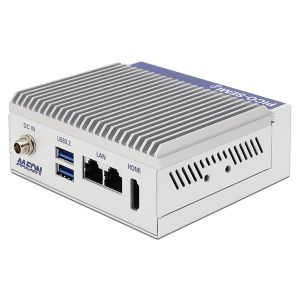

PICO-V2K4-SEMI
PICO-SEMI with AMD RYZEN™ V2000 embedded Processor Family
As low as
US$1,050.00
Availability:
In stock
Inventory: please select an item
SKU
PICO-V2K4-SEMI
The PICO-V2K4-SEMI is AAEON's PICO-ITX Mini-PC, and its first to be powered by the AMD Ryzen™ Embedded V2000 Series Processor platform. Boasting up to 8 cores and 16 threads, alongside 7nm processing technology, LPDDR4x onboard system memory, and AMD Radeon™ graphics, the PICO-V2K4-SEMI offers truly elite performance in compact, energy-efficient Mini-PC form. Its small form factor is stacked with attributes such as dual ethernet speeds up to 2.5GbE, 64GB onboard NVMe storage, and 3 independent display ports capable of 4K resolution. As such, the PICO-V2K4-SEMI is targeted towards edge computing, embedded gaming, and image processing applications.
Accelerated Edge Computing from the AMD Ryzen™ Embedded V2000 Series
Groundbreaking AMD Ryzen™ Embedded V2000 Series Processors provide the PICO-V2K4-SEMI with unprecedented high-performance computing via up to 8 cores and 16 threads, based on the Zen 2 x86 core architecture. Boosted by onboard LPDDR4x system memory, the PICO-V2K4-SEMI has the high multi-thread performance to power complex edge computing applications with an energy efficient 10-25W thermal design point.
Intricate Image Processing with AMD Radeon™ Graphics
Utilizing its AMD Radeon™ Graphics and 64GB onboard NVMe storage, the PICO-V2K4-SEMI enhances embedded gaming with its support for up to 3 simultaneous 4K displays via HDMI 2.0b, HDMI 1.4, and DP ports. Also equipped with 2.5 GbE, USB 3.2, and dual COM ports, the PICO-V2K4-SEMI accommodates peripheral cameras and sensors for advanced image processing applications.
Industrial Market Versatility Through Expansive Connectivity
The PICO-V2K4-SEMI provides a wealth of connectivity and expansion options conducive to various industrial applications. Three USB 3.2, four USB 2.0, and two COM ports supporting RS-232/RS-422/RS-485 give the PICO-V2K4-SEMI the capacity to integrate multiple sensors, while its high-speed onboard memory enhances data transmission speed. Additionally, the device possesses additional storage options, with a mini card slot providing mSATA or mPCIe expansion alongside dual storage support in the form of an M.2 2280 M-Key for SATA III.
Flexible Deployment via a more Compact, Lightweight System
Easily deployed via multiple mounting options, the PICO-V2K4-SEMI brings customers a smaller, yet more sophisticated system solution. Comprised of a compact 4.80" x 3.18 x 2.13" (122mm x 80.8mm x 54 mm) chassis weighing less than 1lb., the PICO-V2K4-SEMI is easily integrated with existing infrastructure.
PICO-V2K4-SEMI-A11-S001
| SYSTEM | |
| FORM FACTOR | PICO-SEMI |
| CPU | AMD RYZEN™ V2000 embedded Processor Family V2516 (6C/12T, 2.10GHz, 25W) |
| CHIPSET | Integrated with AMD RYZEN™ V2000 embedded Processor |
| MEMORY TYPE | Onboard LPDDR4x 3733, Dual Channel, Non-ECC, default with 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 4.80” x 3.18” x 2.13” (122mm x 80.8mm x 54 mm) |
| Gross Weight | 0.84 lbs. (0.38 kg) |
| OS Support | Windows 10 (64 bit) Linux Ubuntu 20.04.3/Kernel 5.18.0-4449-amd+ |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | V2718, LPDDR4x 32GB, NVMe64GB 4.24A @ +12V(TYPICAL) V2718, LPDDR4x 32GB, NVMe64GB, 4.82A @ +12V(MAX) |
| DISPLAY | |
| CONTROLLER | AMD Radeon 6, 7 Graphics (Renoir) |
| Display Interface | Type C to DP x 1, 3480 x 2160 @60Hz HDMI 2.0 x 1, 3480 x 2160 @60Hz HDMI 1.4 x 1, 3480 x 2160 @30Hz |
| Multiple Display | Up to 3 Simultaneous Displays |
| AUDIO | |
| CODEC | Realtek ALC269 (Optional) |
| AUDIO INTERFACE | Line-out (Optional) |
| EXTERNAL I/O | |
| ETHERNET | Intel® i225/i226 2.5GbE, RJ-45 x 1 Intel® i210 1GbE, RJ-45 x 1 |
| USB | USB3.2 Gen2 Type C x 1 USB3.2 Gen2 x 2 USB2.0 x 2 (Optional) |
| SERIAL PORT | COM1~2 (RS232/422/485, support 5V/12V/RI, Optional) |
| VIDEO | DP x 1 (Via Type C) HDMI 2.0 x 1 HDMI 1.4 x 1 |
| INTERNAL I/O | |
| SATA | Onboard NVME SSD 64GB |
| AUDIO | Line-out (Optional) |
| FAN | 4pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| Mini PCI-E/mSATA | Full-Size mSATA/mPCIe x 1 (Default: mPCIe, select with HW BOM) |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA, Default: PCIe [x4], select with BIOS) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) with 0.2 m/s airflow |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 407,784 |
| EMC | CE/FCC Class A |
PICO-V2K4-SEMI-A11-S002
| SYSTEM | |
| FORM FACTOR | PICO-SEMI |
| CPU | AMD RYZEN™ V2000 embedded Processor Family V2718 (8C/16T, 1.70GHz, 25W) |
| CHIPSET | Integrated with AMD RYZEN™ V2000 embedded Processor |
| MEMORY TYPE | Onboard LPDDR4x 3733, Dual Channel, Non-ECC, default with 16GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 4.80” x 3.18” x 2.13” (122mm x 80.8mm x 54 mm) |
| Gross Weight | 0.84 lbs. (0.38 kg) |
| OS Support | Windows 10 (64 bit) Linux Ubuntu 20.04.3/Kernel 5.18.0-4449-amd+ |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | V2718, LPDDR4x 32GB, NVMe64GB 4.24A @ +12V(TYPICAL) V2718, LPDDR4x 32GB, NVMe64GB, 4.82A @ +12V(MAX) |
| DISPLAY | |
| CONTROLLER | AMD Radeon 6, 7 Graphics (Renoir) |
| Display Interface | Type C to DP x 1, 3480 x 2160 @60Hz HDMI 2.0 x 1, 3480 x 2160 @60Hz HDMI 1.4 x 1, 3480 x 2160 @30Hz |
| Multiple Display | Up to 3 Simultaneous Displays |
| AUDIO | |
| CODEC | Realtek ALC269 (Optional) |
| AUDIO INTERFACE | Line-out (Optional) |
| EXTERNAL I/O | |
| ETHERNET | Intel® i225/i226 2.5GbE, RJ-45 x 1 Intel® i210 1GbE, RJ-45 x 1 |
| USB | USB3.2 Gen2 Type C x 1 USB3.2 Gen2 x 2 USB2.0 x 2 (Optional) |
| SERIAL PORT | COM1~2 (RS232/422/485, support 5V/12V/RI, Optional) |
| VIDEO | DP x 1 (Via Type C) HDMI 2.0 x 1 HDMI 1.4 x 1 |
| INTERNAL I/O | |
| SATA | Onboard NVME SSD 64GB |
| AUDIO | Line-out (Optional) |
| FAN | 4pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| Mini PCI-E/mSATA | Full-Size mSATA/mPCIe x 1 (Default: mPCIe, select with HW BOM) |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA, Default: PCIe [x4], select with BIOS) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) with 0.2 m/s airflow |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 407,784 |
| EMC | CE/FCC Class A |
