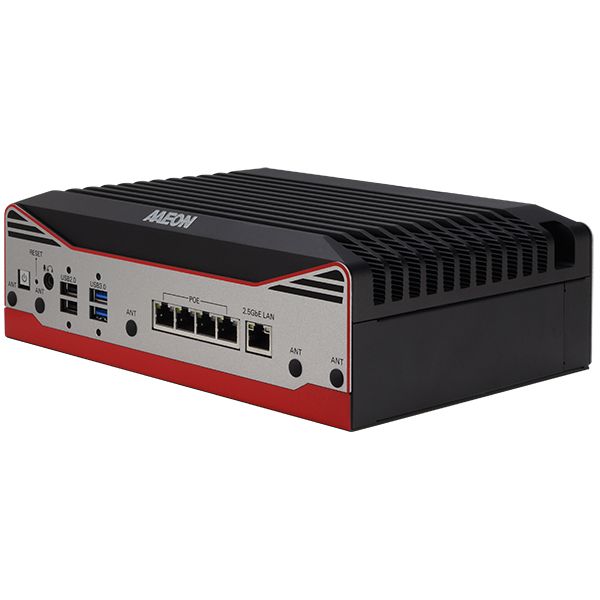

VPC-5640S
Multi-PoE & Fanless Appliance with 12th Generation Intel® Core™ i7 Processor
US$1,812.00
Availability:
In stock
Only 2 left
SKU
VPC-5640S-IS-A10-00
- 12th Gen Intel® Core™ i7 Processor
- DDR5 SODIMM x 2, Max 64GB
- 2.5GbE POE/PSE 802.3 af/at x 4
- Dual LTE Module with SIM Slots x 4, 5G Supported
- M.2 2280 M-Key (PCIe [x4])/M.2 2230 E-Key)
- M.2 3052 B-Key x 2 (USB 2.0, USB 3.0)
- Onboard TPM 2.0
- 9 ~ 36V DC-in
- -40°C ~ 70°C Operating Temperature
- MIL-STD-810H and E-Mark Certified
Note: This system is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.
Whether you need a solution to get from A to B, or you are lapping your competition, the VPC-5640S can get you on track to building the ultimate in-vehicle solution. Equipped with four PoE LAN, a plethora of serial communication connections, military-spec ruggedness, and exceptional expansion options, AAEON’s newest fanless system is purpose-designed to help you navigate your way to success.
A Need for Speed, with the Horsepower to Match
Purpose-built for in-vehicle applications, the VPC-5640S is equipped with four PoE LAN ports running at 2.5GbE speed, providing a robust set of pathways for conveniently installed, power-efficient peripheral cameras. These interfaces are joined by an additional LAN port supporting Intel® I226-LM, also at 2.5GbE speed, alongside DB-9 and DB-15 ports for RS-232/422/485, isolated CANBus, and an 8-bit digital I/O. This blend of PoE function and serial communication is complimented by the system’s 12th Gen Intel® Core™ processing, the power of which facilitates process control and task execution functions conducive to video surveillance applications.
Roadworthy, No Matter the Conditions
The VPC-5640S is designed for optimum functionality in the harshest settings, with a wide -40°C ~ 70°C temperature and 9V ~ 36V DC power input range with circuit protection and ignition delay on/off, which serves to protect crucial data against failure caused by variations in environmental conditions and power supply fluctuations. The VPC-5640S is also E-Mark certified, fanless, and boasts MIL-STD-810H vibration and shock tolerance, making it well-suited to thrive, rather than fail, under the pressures that are commonly encountered with in-vehicle applications.
Navigates the Road from the Edge to the Cloud
The VPC-5640S contains adequate storage provisions via a 2.5" HDD for SATA at 6Gb/s, along with NVMe thanks to its M.2 2280 M-Key. This base grants users more freedom to develop applications requiring data to be stored and processed on the edge. The system also enables interconnectivity with other aspects of the IoT ecosystem, accommodating Wi-Fi via an M.2 2230 E-Key. The system also hosts two M.2 3052 B-Keys with dual SIM slots to allow for the installation of two 5G modules simultaneously, granting excellent edge-to-cloud capabilities, along with an additional two standalone SIM slots. These features make the VPC-5640S tailor-made for fleet management, emphasized by onboard GPS, NEO-M9V & G-Sensor.
| SYSTEM | |
| FORM FACTOR | Multi-PoE & Fanless Appliance |
| PROCESSOR | 12th Generation Intel® Core™ i7-1265UE Processor |
| Main Memory | DDR5 SODIMM x 2, up to 64GB |
| Display | HDMI x 2 |
| ETHERNET | 2.5GbE x 1 (Intel® I226-LM) |
| SMART POE | 2.5GbE x 4 (IEEE802.3 at/af, sharing 60W of power budget for every four PoE ports) |
| RAID SUPPORT | — |
| EXPANSION SLOT | M.2 2230 E-Key x 1 (PCIe [x1] + USB 2.0, for WiFi/Bluetooth Module) M.2 3052 B-Key w/ Dual-SIM x 2 (USB 3.0 + USB 2.0, for LTE/5G Module) M.2 2280 M-Key x 1 (PCIe [x4]), support NVME PCIe [x4] SSD) |
| FRONT I/O PANEL | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 2.5GbE LAN x 1 2.5GbE PoE LAN x 4 (IEEE802.3 at/af) Jack x 1 for Line-out & MIC-in Reset Button x 1 Power Button x 1 |
| REAR I/O PANEL | DB-9 Male x 2 for RS-232/422/485 DB-9 Male x 1 for Isolated CANBus FD x 2 DB-15 Male x 1 for DIO 8 bit HDMI 1.4b x 2 3-pin Terminal Block x 1 DIP Switch x 1 SIM Slot x 4 |
| STORAGE | |
| HDD | 2.5” HDD/SSD Bay x 1 |
| CF/CFAST/MSATA | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -40°F ~ 158°F (-40°C ~ 70°C), IEC68-2 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40˚C, non-condensing |
| VIBRATION/SHOCK | MIL-STD-810H |
| CERTIFICATION | CE/FCC Class A, UKCA, E-Mark |
| POWER REQUIREMENT | |
| POWER SUPPLY | DC-in 9~36V x 1 for 3-pin Terminal Block |
| MECHANICAL | |
| INTERNAL SYSTEM HDD BAY | 2.5” HDD/SSD Bay x 1 |
| DIMENSION | 9.45" x 6.58" x 2.99" (240mm x 167.1mm x 76mm) Without brackets 11.69" x 6.58" x 3.27" (297mm x 167.1mm x 83mm) With brackets |
| GROSS WEIGHT | 7.93 lb (3.6 Kg) |
- VPC-5640S x 1
- Wallmount Bracket x 2
- Screw Package x 1
- 3 Pin DC-in Power Connector x 1
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
