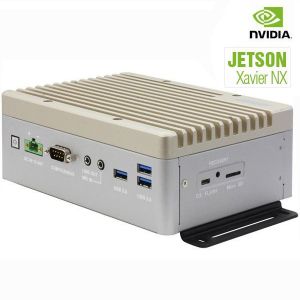

BOXER-8251AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA Jetson Xavier NX (Jetpack 4.6)

US$1,133.00
Out of stock
SKU BOXER-8251AI-JP46E-A1-1010
  • NVIDIA Jetson Xavier NX
  • 8GB LPDDR4 + 16GB eMMC
  • USB3.2 Gen 1 x 4
  • LAN x 1 + RS-232 x 2
  • 12Vdc Power input
  • OS SUPPORT: NVIDIA Jetpack 4.6



Note: If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.
Price Drop Notification
Please login first to receive our notifications
In Stock Notification
Please login first to receive our notifications

The BOXER-8251AI is powered by the innovative Jetson Xavier NX from NVIDIA. Featuring a six-core 64-bit ARM processor, it boasts 384 CUDA® cores, 48 Tensor Cores, and two NVDLA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance up to 21 TOPS. Built to bring dedicated AI processing to the edge, the system also features 8GB of LPDDR4 memory and 16GB of onboard eMMC memory that’s expandable through the Micro-SD card slot.

One of the most innovative features of the NVIDIA Jetson Xavier NX is the ability of users to select five different performance modes. These modes allow users to tailor the number of cores, processor speed, and power draw the system utilizes. The BOXER-8251AI also provides users with greater flexibility with its compact size and I/O features; with two COM ports and four USB 3.2 Gen 1 ports, as well as Gigabit Ethernet port. Its rugged, fanless design keeps dust and other contaminants out of the system, offering reliable and low-maintenance operation for more stable performance.

More Information
Sub Title AI@Edge Compact Fanless Embedded AI System with NVIDIA Jetson Xavier NX (Jetpack 4.6)
Packing List
  • Power Connector x 1
  • BOXER-8251AI


【Optional Accessories】

Item DESCRIPTION

Power Adapter

The power adapter is not included in the packing list.
Please click HERE if you'd like to add the adapter to your order.

Power Cord

Power cord varies from countries and needs to be purchased separately.
Please click below link if you'd like to add the power cord to your order as well.
- US/ Taiwan Type
- Europe Type
- Japan Type
Product Spec
SYSTEM
CPU 6 Core ARM® Carmel®V8.2 64bit CPU 6MB L2 + 4MB L3
SYSTEM MEMORY 8GB LPDDR4x
AI SOLUTION Nvidia Jetson Xavier NX
DISPLAY INTERFACE HDMI 2.0
STORAGE DEVICE 16GB eMMC + MicroSD
ETHERNET 10/100/1000Base-TX x 1
I/O USB 3.2 Gen 1 x 4
LAN x 1
RS-232 x 2
HDMI x 1
MicroSD x 1
DC Power Input x 1
Recovery Button x 1
Micro-USB for Flash OS x 1
EXPANSION M.2 E-Key 2230 x 1(for WiFi)
INDICATOR Power LED x 1
OS SUPPORT NVIDIA Jetpack 4.6
POWER SUPPLY
POWER REQUIREMENT 12Vdc w/ 2-pin terminal block
MECHANICAL
MOUNTING Wallmount
DIMENSION 3.46” x 2.95” x 1.53” (88mm x 75mm x 39mm)
GROSS WEIGHT 1.10 lb (0.5 kg)
NET WEIGHT 0.66 lb (0.3 kg)
ENVIRONMENTAL
STORAGE TEMPERATURE -40°F ~ 158°F (-40°C ~ 70°C)
STORAGE HUMIDITY 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC
CERTIFICATION CE/FCC class A
