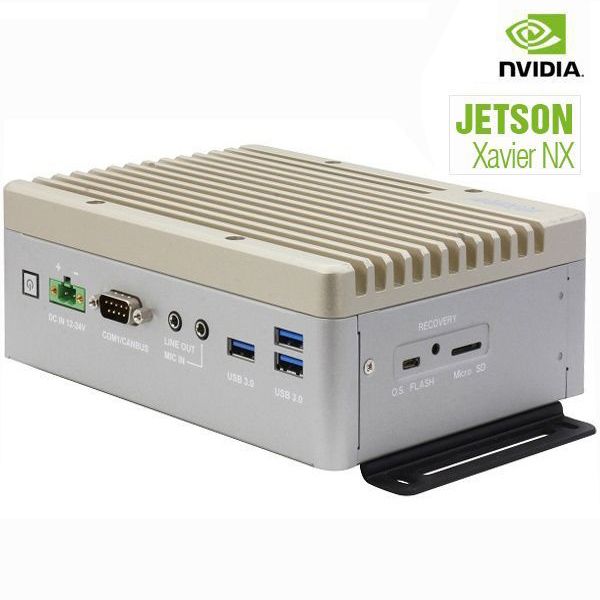

BOXER-8256AI
AI@Edge Fanless Embedded AI System with NVIDIA Jetson Xavier NX, HDMI Input x4
- NVIDIA Jetson Xavier NX
- HDMI x 4 for Video Input 1.4
- HDMI x 2 for Video Display 2.0
- USB Type A x 3 for USB 3.2 Gen 1
- DB9 for RS-232/422/485 (By switch) and CANbus x1
- RJ-45 x 1 for GbE LAN
- M.2 M-Key (PCIEx4)
- M.2 B-Key (PCIEx2 and USB 3.0)
- M.2 E-key (PCIEx1 and USB 2.0)
The BOXER-8256AI is AAEON’s NVIDIA® Jetson Xavier™ NX embedded BOX PC, designed for smart healthcare equipment, digital signage, and entertainment.
A sophisticated, practical design featuring four HDMI input ports allows you to facilitate real-time stream filtering. The Jetson Xavier NX’s powerful performance enables you to run multiple AI algorithms and analyze live video streaming with speed and precision.
The BOXER-8256AI also boasts a rich I/O, featuring interfaces such as CANbus, USB and audio, along with Wi-Fi/4G/5G wireless network connectivity and enhanced storage such as eMMC and 2.5” HDD.
Sub Title | AI@Edge Fanless Embedded AI System with NVIDIA Jetson Xavier NX, HDMI Input x4 | ||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
Product Spec |
|
SYSTEM
AI ACCELERATOR
Nvidia Jetson Xavier NX
CPU
6-core NVIDIA Carmel ARM® v8.2 64-bit CP
SYSTEM MEMORY
8GB LPDDR4x
STORAGE DEVICE
16GB eMMC x 1
MicroSD Slot x 1
M.2 M-Key 2280 x 1 (PCIE[x4])
2.5” SATA x 1
DISPLAY INTERFACE
HDMI 2.0 x 2
ETHERNET
RJ-45 x 1 for GbE LAN
I/O
USB Type A x 3 for USB 3.2 Gen 1
DB9 for RS-232/422/485 (By switch) and CANbus x1
HDMI x 2 for Video Display 2.0
HDMI x 4 for Video Input 1.4 (Limitation have stated in User manual)
Mic-in x 1, Line-Out x 1
Micro USB for OS Flash x 1
Power ON/OFF switch x 1
Recovery button x 1
SMA Antenna hole x 2
EXPANSION
M.2 B-Key 3042/3052 x 1 (PCIE[x2] + USB 3.0)
M.2 E-key x 1(PCIE[x1] + USB 2.0)
INDICATOR
Power LED x 1
OS SUPPORT
Linux (NVIDIA Jetpack 4.6.2 or above)
POWER SUPPLY
POWER REQUIREMENT
DC-in 12-24V with 2-pin terminal block
MECHANICAL
MOUNTING
Wallmount Kit
DIMENSION
7.09" x 5.35" x 2.64" (180 mm x 136 mm x 67 mm )
GROSS WEIGHT
4.23 lb (1.92 kg)
NET WEIGHT
2.87 lb (1.3 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE
-5°F ~ 140°F (-15°C ~ 60°C with 0.5 m/s airflow)
STORAGE TEMPERATURE
-40 °F ~ 176°F(-40°C ~ 80°C)
STORAGE HUMIDITY
5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION
3.5 Grms/ 5 ~ 500Hz/ operation – eMMC
ANTI-SHOCK
50G, IEC 60068-2-27, half sine, 11 ms duration – eMMC
CERTIFICATION
CE/FCC class A
SYSTEM | |
AI ACCELERATOR | Nvidia Jetson Xavier NX |
CPU | 6-core NVIDIA Carmel ARM® v8.2 64-bit CP |
SYSTEM MEMORY | 8GB LPDDR4x |
STORAGE DEVICE | 16GB eMMC x 1 MicroSD Slot x 1 M.2 M-Key 2280 x 1 (PCIE[x4]) 2.5” SATA x 1 |
DISPLAY INTERFACE | HDMI 2.0 x 2 |
ETHERNET | RJ-45 x 1 for GbE LAN |
I/O | USB Type A x 3 for USB 3.2 Gen 1 DB9 for RS-232/422/485 (By switch) and CANbus x1 HDMI x 2 for Video Display 2.0 HDMI x 4 for Video Input 1.4 (Limitation have stated in User manual) Mic-in x 1, Line-Out x 1 Micro USB for OS Flash x 1 Power ON/OFF switch x 1 Recovery button x 1 SMA Antenna hole x 2 |
EXPANSION | M.2 B-Key 3042/3052 x 1 (PCIE[x2] + USB 3.0) M.2 E-key x 1(PCIE[x1] + USB 2.0) |
INDICATOR | Power LED x 1 |
OS SUPPORT | Linux (NVIDIA Jetpack 4.6.2 or above) |
POWER SUPPLY | |
POWER REQUIREMENT | DC-in 12-24V with 2-pin terminal block |
MECHANICAL | |
MOUNTING | Wallmount Kit |
DIMENSION | 7.09" x 5.35" x 2.64" (180 mm x 136 mm x 67 mm ) |
GROSS WEIGHT | 4.23 lb (1.92 kg) |
NET WEIGHT | 2.87 lb (1.3 kg) |
ENVIRONMENTAL | |
OPERATING TEMPERATURE | -5°F ~ 140°F (-15°C ~ 60°C with 0.5 m/s airflow) |
STORAGE TEMPERATURE | -40 °F ~ 176°F(-40°C ~ 80°C) |
STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
ANTI-VIBRATION | 3.5 Grms/ 5 ~ 500Hz/ operation – eMMC |
ANTI-SHOCK | 50G, IEC 60068-2-27, half sine, 11 ms duration – eMMC |
CERTIFICATION | CE/FCC class A |
- Wallmount Bracket x 2
- Screw Package x 1
- Power Connector x 1
- BOXER-8256AI
- Wallmount Bracket x 2
- Screw Package x 1
- Power Connector x 1
- BOXER-8256AI
【Optional Accessories】
Item | DESCRIPTION |
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US/ Taiwan Type - Europe Type - Japan Type |
