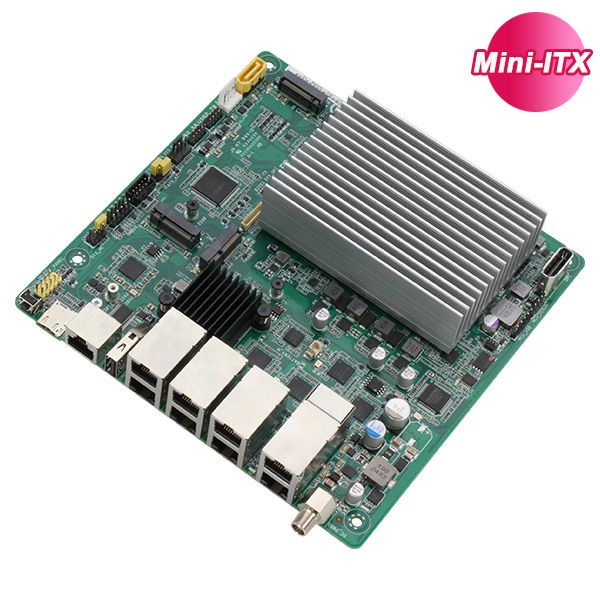

MIX-ASLD1
Mini-ITX with Intel® Processor N97
US$338.00
Availability:
In stock
Only 15 left
SKU
MIX-ASLD1-A10-N97
- Intel® Processor N97 (Next Generation Compatible)
- DDR5, 4800MHz, Max 16GB
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3042/52 B-Key x 1 with SIM socket
- USB 3.2 x 1, USB 2.0 x 4
- SATA 6Gb/s x 1
- PoE x 1, 1GbE LAN x 7
- Console Port x 1
- 12V DC-in power
- Software Reset Button x 1
- OOB Support (Onboard)
- DPDK Support
Note: This product is available as a barebone kit on AAEON eShop. If you would like to order additional components for a more complete system, please contact AAEON sales for more options and assistance.
An Industrial Networking Gateway with Remote Access Control
The MIX-ASLD1's integrated out-of-band chip and Data Plane Development Kit support make it perfect for IIoT gateway management, eight gigabit LAN (one with PoE functionality), wireless expansion, and versatile industrial communication interfaces offering the multifaceted scalable connectivity needed to handle multiple edge devices across smart factories and critical infrastructure.
| System | |
| Processor | Intel® Processor N97, 4C, TDP: 12W |
| Chipset | — |
| Memory | DDR5 4800MHz SODIMM x 1, Max 16GB (Non-ECC, Un-buffered memory) |
| I/O Chipset | Nuvoton NCT6126D |
| Ethernet | PoE x 1 (Intel® Ethernet Controller I210-AT) 1GbE LAN x 7 (LAN Controller: Intel® Ethernet Controller I350-AM4 x 1 + Intel® Ethernet Controller I210-AT x 3) |
| Audio | — |
| TPM | Onboard TPM 2.0 (Infineon SLB9672) |
| Expansion Slots | M.2 3042/3052 B-Key x 1 (PCIe 3.0 x1, USB 3.2) for 5G/LTE M.2 2230 E-Key x 1 (PCIe 3.0 x1, USB 2.0, CNVi) for WiFi/Bluetooth Nano SIM Card x 1 (B-Key, push type) |
| BIOS | 256Mbit Flash ROM, AMI BIOS, UEFI |
| H/W Monitor | Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on Chassis |
| WatchDog Timer | 1~255 stepss by software program |
| Smart Fan Control | Chassis Fan |
| Wake On LAN/ PXE | Yes (WOL with i210 ports/PXE) |
| Power State | S3, S4, S5 |
| Graphics | |
| Graphics Chipset | Integrated Graphics |
| Display Port | Up to 3840 x 2160 @60/30Hz (internal) |
| Environment & & Power & ME | |
| Battery | Lithium battery |
| Power Requirement | DC 12V Power consumption: 80W |
| Operating Temperature | 32°F ~ 140°F (0 ~ 60°C) (Operational humidity: 60°C @90% RH NonCondensing) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Certificate | CE & FCC (Class A) |
| Form Factor | Mini-ITX: 6.7" x 6.7" (170mm x 170mm) |
| Weight | 1.1 lb (0.5Kg) |
| Rear Panel I/O Ports | |
| USB | USB 3.2 Gen 1 x 1 (Vertical) |
| LAN I/O | PoE x 1 (Type 1 IEEE 802.3AT, 30W x 1, for 1G PoE/PSE) RJ-45 LAN x 7 (1G) |
| Others | Nano SIM Slot x 1, Software Reset Button x 1, Console Port x 1, DC Jack x1 |
| Internal I/O Connectors | |
| Storage | SATA 6Gb/s x 1 M.2 2280 M-Key slot x 1 (Auto Detect, PCIe [x1] & SATA Mode) |
| USB | USB 2.0 x 2 (2.54mm pitch, 2x5-pin Header) support for 4 USB 2.0 ports |
| DIO | 8-bit Digital I/O interface x 1 (In/Out programmable) |
| FAN | Chassis Fan connectors (4-pin) x 1 |
| Others | Chassis Intrusion x 1 AT/ATX Mode Select Jumper x 1 Front Panel Header x 1 Clear CMOS Jumper x 1 Buzzer Onboard x 1 1x3-pin ME Lock Header 1x5-pin I2C Header (Reserve) 1x5-pin SMBus Header |
| OS | |
| OS Support | Windows® 10 64-bit, Windows® 11 64-bit, Linux Ubuntu 22.04 |
- MIX-ASLD1
- I/O Shield
- SATA Cable
- SATA Power Cable
