UP Xtreme ARL

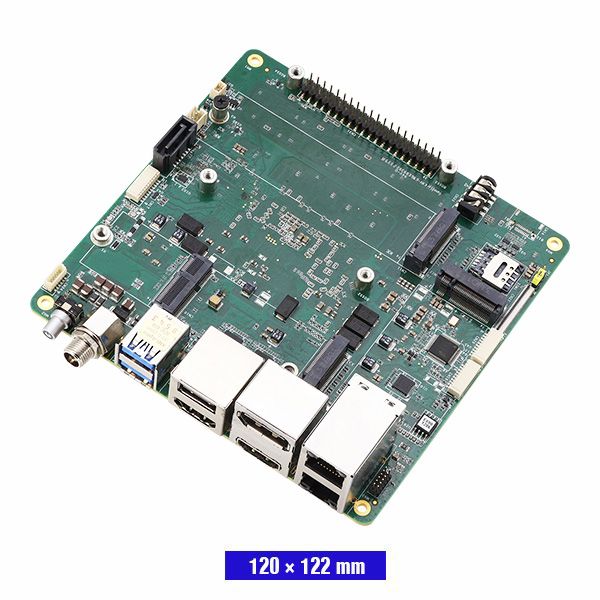

UP Xtreme ARL Developer Board with Intel® Core™ Ultra 5/7 Processors
As low as
US$954.00
Availability:
In stock
Inventory: please select an item
SKU
UP Xtreme ARL
Bridging the gap to the AI era, the UP Xtreme ARL redefines what's possible as it takes its place as the most powerful developer board ever. Bringing Intel® Core™ Ultra 200H Series Processors (formerly Arrow Lake) to a board stacked with all the features needed to build elite AI-driven applications across AMR and advanced robotics, the UP Xtreme ARL is uniquely positioned to help professional developers harness the endless possibilities that lay ahead.
97 TOPs of AI Performance
With Intel® Core Ultra 200H Series Processors offering monumental advancements through both a power-optimized core microarchitecture and Intel® DL Boost-accelerated integrated Intel® Arc™ 140T GPU, the UP Xtreme ARL can achieve up to 97 TOPs of AI performance for the execution of multiple concurrent compute and edge inference tasks. Meanwhile, its Intel® AI Boost NPU offers extensive software framework support for streamlined model development.

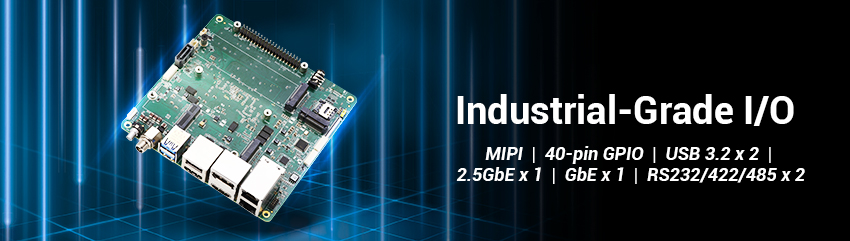

Industrial-Grade I/O
The UP Xtreme ARL's I/O is ideally suited to powering the next generation of robotics and AMR solutions. With a foundation capable of handling parallel robotics workloads, developers are free to fully utilize the board's trademark 40-pin GPIO, dual RS-232/422/485 pin headers, multiple high-speed USB ports, and MIPI camera support to integrate sophisticated peripherals to bring autonomous industrial robotic solutions to life.

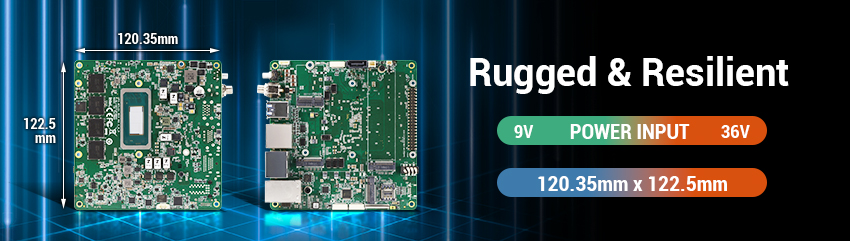

Rugged & Resilient
Despite its compact 120.35mm x 122.5mm form factor, the UP Xtreme ARL is built to withstand the demands of industrial deployment. Equipped with a 9V to 36V power input range with a lockable DC jack, the board is protected from both power source variability and the vibration encountered in industrial settings.
UPX-ARL225H-A10-3200
| System | |
| Processor | Intel® Core™ Ultra 5 processor 225H (18M Cache, up to 4.90 GHz) |
| Graphics | Intel® Arc™ graphics |
| Memory | 32GB onboard LPDDR5 (Dual-Channel) |
| Storage | M.2 2280 M-Key x 2 SATA 6Gb/s x 1 |
| I/O | HDMI 2.1 x 2 DP 2.1 x 1 Audio Jack x 1 (Mic-in+Line-out) RS-232/422/485 10-pin header x 2 |
| Camera | MIPI-CSI via 61-Pin FPC Connector x 1 |
| USB | USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 3 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) M.2 3052 B-Key x 1 (PCIe Gen 3 [x1], USB 3.2 Gen 2 [x1]) with Nano SIM slot (USB 3.0) SATA 6Gb/s x 1 |
| Display Interface | HDMI 2.1 x 2 DP 2.1 x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT), GbE x 1 (Intel® Ethernet Connection I219) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Win 11 LTSC/ 10 LTSC Linux: Ubuntu 24.04 LTS, Yocto 5+ |
| Power Requirement | |
| Power | 9-36V DC-in (Lockable plug) |
| Power Supply Type | AT/ATX (ATX as default) |
| Power Consumption (Typical) | 57.6W ~ 86.4W |
| Mechanical | |
| Dimension | 4.74" x 4.82" (120.35mm x 122.5mm) |
| Net Weight | 12.7 lb. (0.36Kg) |
| Gross Weight | 1.32lb (0.6kg) |
| Environment | |
| Operating Temperature | 32°F - 140°F (0°C - 60°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 1,263,279 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
UPX-ARL255H-A10-3200
| System | |
| Processor | Intel® Core™ Ultra 7 processor 255H (24M Cache, up to 5.10 GHz) |
| Graphics | Intel® Arc™ graphics |
| Memory | 32GB onboard LPDDR5 (Dual-Channel) |
| Storage | M.2 2280 M-Key x 2 SATA 6Gb/s x 1 |
| I/O | HDMI 2.1 x 2 DP 2.1 x 1 Audio Jack x 1 (Mic-in+Line-out) RS-232/422/485 10-pin header x 2 |
| Camera | MIPI-CSI via 61-Pin FPC Connector x 1 |
| USB | USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 3 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) M.2 3052 B-Key x 1 (PCIe Gen 3 [x1], USB 3.2 Gen 2 [x1]) with Nano SIM slot (USB 3.0) SATA 6Gb/s x 1 |
| Display Interface | HDMI 2.1 x 2 DP 2.1 x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT), GbE x 1 (Intel® Ethernet Connection I219) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Win 11 LTSC/ 10 LTSC Linux: Ubuntu 24.04 LTS, Yocto 5+ |
| Power Requirement | |
| Power | 9-36V DC-in (Lockable plug) |
| Power Supply Type | AT/ATX (ATX as default) |
| Power Consumption (Typical) | 57.6W ~ 86.4W |
| Mechanical | |
| Dimension | 4.74" x 4.82" (120.35mm x 122.5mm) |
| Net Weight | 12.7 lb. (0.36Kg) |
| Gross Weight | 1.32lb (0.6kg) |
| Environment | |
| Operating Temperature | 32°F - 140°F (0°C - 60°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 1,263,279 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
UPX-ARL265H-A10-6400
| System | |
| Processor | Intel® Core™ Ultra 7 processor 265H (24M Cache, up to 5.30 GHz) |
| Graphics | Intel® Arc™ graphics |
| Memory | 64GB onboard LPDDR5 (Dual-Channel) |
| Storage | M.2 2280 M-Key x 2 SATA 6Gb/s x 1 |
| I/O | HDMI 2.1 x 2 DP 2.1 x 1 Audio Jack x 1 (Mic-in+Line-out) RS-232/422/485 10-pin header x 2 |
| Camera | MIPI-CSI via 61-Pin FPC Connector x 1 |
| USB | USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 3 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) M.2 3052 B-Key x 1 (PCIe Gen 3 [x1], USB 3.2 Gen 2 [x1]) with Nano SIM slot (USB 3.0) SATA 6Gb/s x 1 |
| Display Interface | HDMI 2.1 x 2 DP 2.1 x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT), GbE x 1 (Intel® Ethernet Connection I219) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Win 11 LTSC/ 10 LTSC Linux: Ubuntu 24.04 LTS, Yocto 5+ |
| Power Requirement | |
| Power | 9-36V DC-in (Lockable plug) |
| Power Supply Type | AT/ATX (ATX as default) |
| Power Consumption (Typical) | 57.6W ~ 86.4W |
| Mechanical | |
| Dimension | 4.74" x 4.82" (120.35mm x 122.5mm) |
| Net Weight | 12.7 lb. (0.36Kg) |
| Gross Weight | 1.32lb (0.6kg) |
| Environment | |
| Operating Temperature | 32°F - 140°F (0°C - 60°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 1,263,279 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
- UP Xtreme ARL with active cooler
| Optional Accessories | |
| Item | DESCRIPTION |
|
Power Adapter |
The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order. |
|
Power Cord |
Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US Type - Europe Type - Japan Type |
| *If you have any other accessory needs, please contact us. | |
