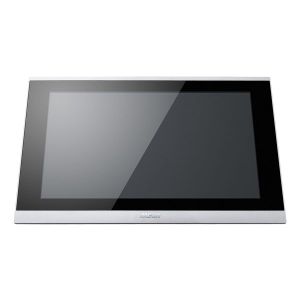

OMNI-2155-CML
15.6” HMI Panel PC support 10th Generation Intel® Core™ / Pentium™ / Celeron® Processor
- 15.6” (1366 x 768) TFT LCD Display
- Extreme Computing Power & Graphic Display Capability
- DDR4 slot x 2, up to 64GB
- Support High Speed NVMe storage (M.2 2280)
- GbE LAN x 2, RS232/422/485 x 2
- USB 3.2 Gen2 x 4
- Supports Intel® AMT
- Wide Range 10-35V DC input
- 0 ~ 45°C Operating Temperature
The OMNI-2155-CML powered by 10th Generation Intel® Core™ processors (formerly Comet Lake), is the first in the OMNI family of industrial touch panel PC solutions to offer a socket-type processor, allowing for easier maintenance and scalability to meet the performance needs of individual applications. The system features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also delivers M.2 2230 (E-Key) to support a range of functions including Wi-Fi or Bluetooth connectivity. The OMNI-2155-CML is also built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.
The OMNI-2155-CML is built from the ground up for industrial applications. The 15.6” LCD touch screen utilizes the P-CAP system and can be configured to be operable with gloves. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.
The OMNI-2155-CML offers a broader range of I/O features, including four serial COM ports, four USB3.2 Gen 2 ports, and two Gigabit Ethernet ports, providing support for Intel® vPro and Intel® AMT, enabling remote monitoring and control. The OMNI-2155-CML also offers storage flexibility with NVMe support, mSATA, and 2.5” SATA III (6.0 Gbps) storage devices. The OMNI-2155-CML can easily connect with cellular networks thanks to onboard SIM card slot, allowing for even more flexibility to communicate with wide area networks.
| Sub Title | 15.6” HMI Panel PC support 10th Generation Intel® Core™ / Pentium™ / Celeron® Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Spec |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SYSTEM
Processor
—
Processor Support
Intel® Core™ i9-10900TE
Intel® Core™ i7-10700TE
Intel® Core™ i5-10500TE
Intel® Core™ i3-10100TE
Intel® Celeron® G5900TE
System Memory
DDR4 SO-DIMM x 2, up to 64GB
Ethernet
Intel® i211 x 1, i219 x 1
I/O Port
USB 3.2 Gen 2 x 4
RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1)
HDMI x 1
Line out x 1
DB-9 x 2 for RS-232/422/485
3 pin 10~35V
Power Input x 1
Power Button with LED x 1
Storage Disk Drive
M.2 2280 slot x 1 (PCIex4), 2.5” SATA SSD/HDD bay x 1
Expansion Slot
M.2 2230 E Key x 1, M.2 2280 B Key x 1
Full-Size Mini Card x 1 (mSATA/PCIe switch by BIOS, default PCIe), SIM x 1
OS support
Windows® 10 IoT Enterprise 64-bit, Linux Ubuntu 20.04
MECHANICAL
CONSTRUCTION
Aluminum Design (IP65 Front Frame)
MOUNTING
VESA 100 / Panel Mount
DIMENSION
420.14mm x 264.47mm x 73.6mm
GROSS WEIGHT
6.75 kg
ENVIRONMENTAL
OPERATING TEMPERATURE
32°F ~ 113°F (0°C ~ 45°C) (35W CPU), according to IEC68-2-14 with 0.5 m/s AirFlow
STORAGE TEMPERATURE
-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY
90% @40°C; non-condensing
ANTI-VIBRATION
1 Grms/ 5~500Hz/random operation
ANTI-SHOCK
15 G peak acceleration (11 msec. duration)
CERTIFICATION
CE/FCC class A
POWER SUPPLY
DC INPUT
10-35V DC-in with 3-pin terminal block
LCD
Display Type
15.6” TFT-LCD, LED
Max. Resolution
1366 (H) x 768 (V)
Max. Colors
16.7M (8 bit/color)
Luminance
400 cd/m²
Viewing Angle
170° (H), 130° (V)
Back Light
LED
Back Light MTBF (hours)
50000
TOUCH SCREEN
Type
Projected Capacitive Multitouch
Light Transmission
80% ± 3% / 88%± 2%
| SYSTEM | |
| Processor | — |
| Processor Support | Intel® Core™ i9-10900TE Intel® Core™ i7-10700TE Intel® Core™ i5-10500TE Intel® Core™ i3-10100TE Intel® Celeron® G5900TE |
| System Memory | DDR4 SO-DIMM x 2, up to 64GB |
| Ethernet | Intel® i211 x 1, i219 x 1 |
| I/O Port | USB 3.2 Gen 2 x 4 RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1) HDMI x 1 Line out x 1 DB-9 x 2 for RS-232/422/485 3 pin 10~35V Power Input x 1 Power Button with LED x 1 |
| Storage Disk Drive | M.2 2280 slot x 1 (PCIex4), 2.5” SATA SSD/HDD bay x 1 |
| Expansion Slot | M.2 2230 E Key x 1, M.2 2280 B Key x 1 Full-Size Mini Card x 1 (mSATA/PCIe switch by BIOS, default PCIe), SIM x 1 |
| OS support | Windows® 10 IoT Enterprise 64-bit, Linux Ubuntu 20.04 |
| MECHANICAL | |
| CONSTRUCTION | Aluminum Design (IP65 Front Frame) |
| MOUNTING | VESA 100 / Panel Mount |
| DIMENSION | 420.14mm x 264.47mm x 73.6mm |
| GROSS WEIGHT | 6.75 kg |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 113°F (0°C ~ 45°C) (35W CPU), according to IEC68-2-14 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| ANTI-VIBRATION | 1 Grms/ 5~500Hz/random operation |
| ANTI-SHOCK | 15 G peak acceleration (11 msec. duration) |
| CERTIFICATION | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | 10-35V DC-in with 3-pin terminal block |
| LCD | |
| Display Type | 15.6” TFT-LCD, LED |
| Max. Resolution | 1366 (H) x 768 (V) |
| Max. Colors | 16.7M (8 bit/color) |
| Luminance | 400 cd/m² |
| Viewing Angle | 170° (H), 130° (V) |
| Back Light | LED |
| Back Light MTBF (hours) | 50000 |
| TOUCH SCREEN | |
| Type | Projected Capacitive Multitouch |
| Light Transmission | 80% ± 3% / 88%± 2% |
- Phoenix Power Connector x 1
- OMNI-2155-CML
- Phoenix Power Connector x 1
- OMNI-2155-CML
