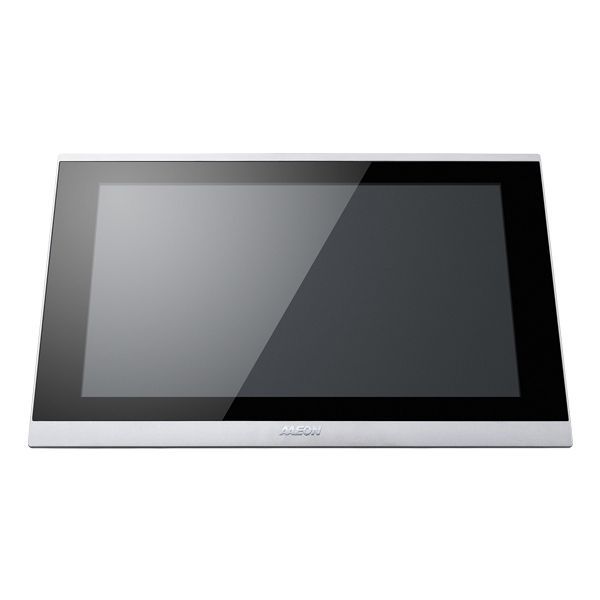

OMNI-2155-ADN

15.6" Modular HMI Panel PC With Intel® Processor N-series Processors

As low as US$1,030.00

Availability: In stock

Inventory: please select an item

SKU

OMNI-2155-ADN

15.6” (1920 x 1080)/(1366 x 768) TFT LCD Display
Intel® Processor N-series Processors
Projected Capacitive Multi Touch
Aluminum Design
IP65 Compliant Front Bezel
Fanless Operation
VESA Mount/Built-in Panel Mount Bracket
9-30V DC in a wide range of input

Note: This system is available as a barebone kit on AAEON eShop. If you would like to order additional components (RAM/SSD/OS) for a more complete system, please contact AAEON sales for more options and assistance.

Price Drop Notification

Qty:

Details

With efficient Intel® Processor N processing, an unprecedented choice of industrial communication interfaces, and backward compatibility with existing setups, the new OMNI-ADN-KIT series represents the evolution of Modular HMI Panel PCs. No longer simply for industrial display solutions like human-machine interfaces, the OMNI-ADN-KIT opens the door to integrated factory automation, machine control, and central monitoring system deployment in sizes ranging from 10.1" to 21.5".

Specification

OMNI-2155HTT-ADN-A2-1010

System
Processor	Intel® Processor N97
System Memory	DDR5 4800 MHz, up to 16GB SODIMM x 1
LCD/CRT Controller	CPU Integrated
Ethernet	Intel® Ethernet Controller I226, 2.5GbE LAN x 3
I/O Port	USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 x 2 via Cables DB-9 x 2 (RS-232/422/485, set by BIOS) HDMI 1.4b x 1 2.5GbE RJ-45 x 3 9V ~ 30V 3-pin DC Terminal Block Connector Power on/off Switch with LED Light x 1
Storage Disk Drive	2.5" SATA Drive Bay x 1 (SATA 6Gb/s) Full-size mPCIe (PCIe [x1]/SATA)
Expansion Slot	M.2 3052 B-Key x 1 with Nano SIM M.2 2230 E-Key x 1
OS support	Windows® 10 IoT Enterprise LTSC 2021 Windows® 10/11
Mechanical
Construction	Aluminum Front Bezel + Metal Chassis
Mounting	Panel Mount/VESA Mount (VESA 100)
Dimension	16.5" x 10.4" x 2.9" (420mm x 264mm x 73mm)
Carton Dimension	20.9" x 17.5" x 7.9" (530mm x 445mm x 200mm)
Gross Weight	11.7 Ib. (5.3Kg)
Environmental
Operating Temperature	-4°F ~ 122°F (-20°C ~ 50°C) with 0.7m/s airflow
Storage Temperature	-4°F~140°F (-20°C~60°C)
Storage Humidity	90% @40°C; non-condensing
Vibration	1Grms /5~500Hz/ operation - with mSATA
Shock	15G peak acceleration (11 m sec. duration) with mSATA
EMC	CE/FCC Class A
Power Supply
DC Input	DC 9~30V
LCD
Display Type	15.6" TFT-LCD, LED
Max Resolution	Regular 1366 (H) x 768 (V)
Max. Colors	Regular :16.7M (8 bit/color)
Luminance	Regular: 400 cd/m²
Viewing Angle	Regular: 170° (H); 130° (V)
Back Light	LED
Back Light MTBF (hours)	50,000
Touchscreen
Type	Projected Capacitive Multi-Touch
Light Transmission	90%

OMNI-2155HDT-ADN-A1-1010

System
Processor	Intel® Processor N50
System Memory	DDR5 4800 MHz, up to 16GB SODIMM x 1
LCD/CRT Controller	CPU Integrated
Ethernet	Intel® Ethernet Controller I226, 2.5GbE LAN x 3
I/O Port	USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 x 2 via Cables DB-9 x 2 (RS-232/422/485, set by BIOS) HDMI 1.4b x 1 2.5GbE RJ-45 x 3 9V ~ 30V 3-pin DC Terminal Block Connector Power on/off Switch with LED Light x 1
Storage Disk Drive	2.5" SATA Drive Bay x 1 (SATA 6Gb/s) Full-size mPCIe (PCIe [x1]/SATA)
Expansion Slot	M.2 3052 B-Key x 1 with Nano SIM M.2 2230 E-Key x 1
OS support	Windows® 10 IoT Enterprise LTSC 2021 Windows® 10/11
Mechanical
Construction	Aluminum Front Bezel + Metal Chassis
Mounting	Panel Mount/VESA Mount (VESA 100)
Dimension	16.5" x 10.4" x 2.9" (420mm x 264mm x 73mm)
Carton Dimension	20.9" x 17.5" x 7.9" (530mm x 445mm x 200mm)
Gross Weight	11.7 Ib. (5.3Kg)
Environmental
Operating Temperature	-4°F ~ 122°F (-20°C ~ 50°C) with 0.7m/s airflow
Storage Temperature	-4°F~140°F (-20°C~60°C)
Storage Humidity	90% @40°C; non-condensing
Vibration	1Grms /5~500Hz/ operation - with mSATA
Shock	15G peak acceleration (11 m sec. duration) with mSATA
EMC	CE/FCC Class A
Power Supply
DC Input	DC 9~30V
LCD
Display Type	15.6" TFT-LCD, LED
Max Resolution	Full HD 1920 (H) x 1080 (V)
Max. Colors	Full HD: 16.2M
Luminance	Full HD: 450 cd/m²
Viewing Angle	Full HD: 178° (H); 178° (V)
Back Light	LED
Back Light MTBF (hours)	50,000
Touchscreen
Type	Projected Capacitive Multi-Touch
Light Transmission	90%

Packing List

Phoenix Power Connector
OMNI-2155-ADN
Screws

Optional Accessories

Optional Accessories
Item	DESCRIPTION
Power Adapter	The power adapter is not included in the packing list. Please click HERE if you'd like to add the adapter to your order.
Power Cord	Power cord varies from countries and needs to be purchased separately. Please click below link if you'd like to add the power cord to your order as well. - US Type - Europe Type - Japan Type
