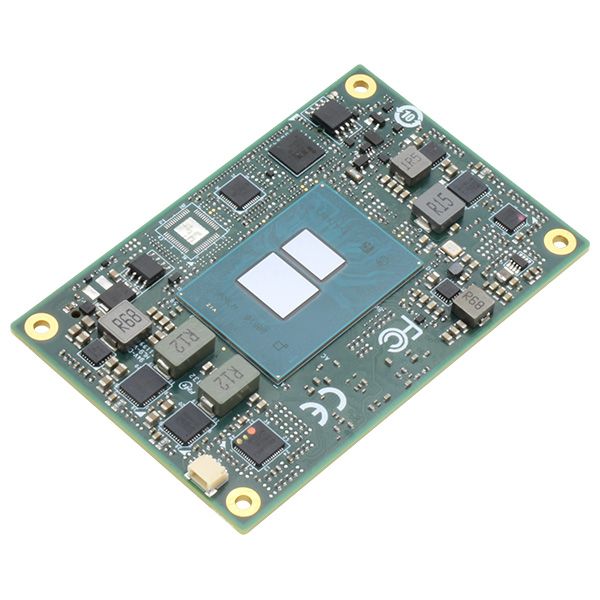

NanoCOM-ADN

COM Express Type 10 with Intel Atom x7425E/Intel® Core™ i3/Processor N-series

As low as US$239.00

Availability: In stock

Inventory: please select an item

SKU

NanoCOM-ADN

Qty:

COM Express Type 10 with Intel Atom® Processor X Series/Intel® Core™ i3/Processor N-series

NANOCOM-ADN-A10-0001

SYSTEM
Form Factor	COM Express Mini Size, Type 10
CPU	Intel® Core™ i3-N305 (8C, up to 3.8 GHz, 15W)
Chipset	Integrated with Intel® SoC
Memory	Onboard LPDDR5x 4000MHz, 16GB
Onboard Storage	eMMC, 64GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
DIMENSION	3.31" x 2.17" (84mm x 55mm)
Security	TPM2.0
Power
POWER REQUIREMENT	+12V and +5VSB for ATX, +12V for AT
POWER TYPE	AT/ATX, switch by BIOS
Power Consumption (Typical)	Intel® Core™ i3-N305, 2.32A @+12V
Display
Graphics Controller	Intel® UHD Graphics
Video Output	Dual Display: DDI x 1, up to 3840 x 2160 18/24-bit Single-Channel LVDS x 1, up to 1024 x 768
I/O
Ethernet	Intel® Ethernet Controller I226-V 2.5GbE x 1
Audio	High Definition Audio Interface
USB Port	USB 2.0 x 8, USB 3.2 Gen 2 x 2
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA 6Gb/s x 2
Expansion	PCIe 3.0 [x1] x 4 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1, SMBus x 1
Environment
Storage Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 / 11 (64-bit) Linux Ubuntu 22.04.4/Kernel 6.5
Weight	0.15 lb. (0.07Kg)

NANOCOM-ADN-A10-0003

SYSTEM
Form Factor	COM Express Mini Size, Type 10
CPU	Intel® Processor N97 (4C, 2.00 GHz, 12W)
Chipset	Integrated with Intel® SoC
Memory	Onboard LPDDR5x 4000MHz, 8GB
Onboard Storage	eMMC, 32GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
DIMENSION	3.31" x 2.17" (84mm x 55mm)
Security	TPM2.0
Power
POWER REQUIREMENT	+12V and +5VSB for ATX, +12V for AT
POWER TYPE	AT/ATX, switch by BIOS
Power Consumption (Typical)	Intel® Core™ i3-N305, 2.32A @+12V
Display
Graphics Controller	Intel® UHD Graphics
Video Output	Dual Display: DDI x 1, up to 3840 x 2160 18/24-bit Single-Channel LVDS x 1, up to 1024 x 768
I/O
Ethernet	Intel® Ethernet Controller I226-V 2.5GbE x 1
Audio	High Definition Audio Interface
USB Port	USB 2.0 x 8, USB 3.2 Gen 2 x 2
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA 6Gb/s x 2
Expansion	PCIe 3.0 [x1] x 4 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1, SMBus x 1
Environment
Storage Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 / 11 (64-bit) Linux Ubuntu 22.04.4/Kernel 6.5
Weight	0.15 lb. (0.07Kg)

NANOCOM-ADN-A10-0004

SYSTEM
Form Factor	COM Express Mini Size, Type 10
CPU	Intel® Processor N50 (2C, 1.00 GHz, 6W)
Chipset	Integrated with Intel® SoC
Memory	Onboard LPDDR5x 4000MHz, 4GB
Onboard Storage	eMMC, 32GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
DIMENSION	3.31" x 2.17" (84mm x 55mm)
Security	TPM2.0
Power
POWER REQUIREMENT	+12V and +5VSB for ATX, +12V for AT
POWER TYPE	AT/ATX, switch by BIOS
Power Consumption (Typical)	Intel® Core™ i3-N305, 2.32A @+12V
Display
Graphics Controller	Intel® UHD Graphics
Video Output	Dual Display: DDI x 1, up to 3840 x 2160 18/24-bit Single-Channel LVDS x 1, up to 1024 x 768
I/O
Ethernet	Intel® Ethernet Controller I226-V 2.5GbE x 1
Audio	High Definition Audio Interface
USB Port	USB 2.0 x 8, USB 3.2 Gen 2 x 2
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA 6Gb/s x 2
Expansion	PCIe 3.0 [x1] x 4 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1, SMBus x 1
Environment
Storage Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 / 11 (64-bit) Linux Ubuntu 22.04.4/Kernel 6.5
Weight	0.15 lb. (0.07Kg)

NANOCOM-ADN-A10-0005

SYSTEM
Form Factor	COM Express Mini Size, Type 10
CPU	Intel Atom® x7425E (4C, 1.50 GHz, 12W)
Chipset	Integrated with Intel® SoC
Memory	Onboard LPDDR5x 4000MHz, 8GB
Onboard Storage	eMMC, 64GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
DIMENSION	3.31" x 2.17" (84mm x 55mm)
Security	TPM2.0
Power
POWER REQUIREMENT	+12V and +5VSB for ATX, +12V for AT
POWER TYPE	AT/ATX, switch by BIOS
Power Consumption (Typical)	Intel® Core™ i3-N305, 2.32A @+12V
Display
Graphics Controller	Intel® UHD Graphics
Video Output	Dual Display: DDI x 1, up to 3840 x 2160 18/24-bit Single-Channel LVDS x 1, up to 1024 x 768
I/O
Ethernet	Intel® Ethernet Controller I226-V 2.5GbE x 1
Audio	High Definition Audio Interface
USB Port	USB 2.0 x 8, USB 3.2 Gen 2 x 2
Serial Port	2-Wire UART x 2 (Tx/Rx)
HDD Interface	SATA 6Gb/s x 2
Expansion	PCIe 3.0 [x1] x 4 LPC x 1
GPIO	8-bit
SMBus/I2C	I2C x 1, SMBus x 1
Environment
Storage Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A
OS Support	Windows® 10 / 11 (64-bit) Linux Ubuntu 22.04.4/Kernel 6.5
Weight	0.15 lb. (0.07Kg)

Optional Accessories
Item	DESCRIPTION
Carrier Board	Please click HERE if you'd like to add it to your order.
Heat Spreader	Please click HERE if you'd like to add it to your order.
Cooler	Please click HERE if you'd like to add it to your order.
