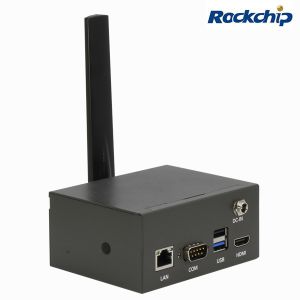

BOXER-RK88
Fanless Embedded Box PC with Rockchip RK3288
- Rockchip RK3288
- DDR3L 2GB
- eMMC 16GB and Micro-SD Card Slot
- HDMI (1.4) Port x 1
- WiFi 802.11 b/g/n, BT V4.2
- GbE: RJ45 x 1
- USB 2.0: Micro-USB OTG x 1, Type A x 2
- RS-232/422/485 x 1
- mPCIe Slot x 1
- +12V DC Input
- OS Support: Android 9.0
- Compact Size (W x D x H): 103.4 mm x 96 mm x 50 mm
For simple, smart applications to meet a variety of business needs, AAEON has produced the BOXER-RK88 and BOXER-RK99. With both devices supporting Android operating systems and built as compact, lightweight box PCs, the BOXER-RK88 and BOXER-RK99 are the perfect solutions for customers looking for edge solutions that are fast to market. As the BOXER-RK88 and BOXER-RK99 are built with Android 9.0 and 8.1 respectively, users be nefit from superior UI and multimedia options.
Speed to Market
Both the BOXER-RK88 and BOXER-RK99 are preinstalled with Android operating system support. Customers therefore have more options for customization and are able to introduce their finished product to market in a more efficient way.
Varied I/O
The BOXER-RK88 and BOXER-RK99 are each equipped with one micro-SD card slot, HDMI ports, and antenna connectors for Wi-Fi connectivity. The BOXER-RK88 contains two USB 2.0 ports, while the BOXER-RK99 contains one USB 2.0 port, and can also support a 3.2 Gen 1 USB. Both also offer optional additions of an LTE Antenna Connector.
Android Support
Because both the BOXER-RK88 and BOXER-RK99 are supported by Android, customers can rely on Android’s ease of use and operation, along with updated user interfaces and greater UI options.
Note: The features of different SKUs may vary. Please check the product specifications before making your purchase.
| Sub Title | Fanless Embedded Box PC with Rockchip RK3288 | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Packing List |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Product Spec |
|
||||||||||||||||||||||||||||||||||||||||||||||
SYSTEM
CPU
Rockchip RK3288
ARM Cortex™-A17 Quad-core 1.6GHz
GPU
Mali-T764
GRAPHICS
Video Decode: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, VP8, MVC
Video Encode: H.264 (BP@level4.0, MP@level4.0, HP@level4.0), MVC and VP8
SYSTEM MEMORY
DDR3L 2GB
DISPLAY INTERFACE
HDMI (1.4)
STORAGE/ SSD
16GB eMMC and Micro-SD card
I/O
Micro-SD Card Slot x 1
HDMI (1.4) Port x 1
Antenna Connector for WiFi 802.11 b/g/n, BT V4.2
Antenna Connector for LTE (Optional)
GbE: RJ45 x 1
USB 2.0: Micro-USB OTG x 1, Type A x 2
RS-232/422/485 x 1
EXPANSION
mPCIe Slot x 1 for LTE module
INDICATOR
Power LED x 1
OS SUPPORT
Android 9.0
POWER SUPPLY
POWER REQUIREMENT
+12V DC input
MECHANICAL
MOUNTING
VESA mount, 75mm x 75mm
DIMENSION
4.07" x 3.78" x 1.97" (103.4 mm x 96 mm x 50 mm)
GROSS WEIGHT
1.1 lb (0.5 Kg)
NET WEIGHT
0.66 lb (0.3 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE
32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE
-40˚F ~ 176˚F (-40˚C ~ 80˚C)
STORAGE HUMIDITY
0% ~ 90% relative humidity, non-condensing
CERTIFICATION
CE/FCC/IC
| SYSTEM | |
| CPU | Rockchip RK3288 ARM Cortex™-A17 Quad-core 1.6GHz |
| GPU | Mali-T764 |
| GRAPHICS | Video Decode: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, VP8, MVC Video Encode: H.264 (BP@level4.0, MP@level4.0, HP@level4.0), MVC and VP8 |
| SYSTEM MEMORY | DDR3L 2GB |
| DISPLAY INTERFACE | HDMI (1.4) |
| STORAGE/ SSD | 16GB eMMC and Micro-SD card |
| I/O | Micro-SD Card Slot x 1 HDMI (1.4) Port x 1 Antenna Connector for WiFi 802.11 b/g/n, BT V4.2 Antenna Connector for LTE (Optional) GbE: RJ45 x 1 USB 2.0: Micro-USB OTG x 1, Type A x 2 RS-232/422/485 x 1 |
| EXPANSION | mPCIe Slot x 1 for LTE module |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Android 9.0 |
| POWER SUPPLY | |
| POWER REQUIREMENT | +12V DC input |
| MECHANICAL | |
| MOUNTING | VESA mount, 75mm x 75mm |
| DIMENSION | 4.07" x 3.78" x 1.97" (103.4 mm x 96 mm x 50 mm) |
| GROSS WEIGHT | 1.1 lb (0.5 Kg) |
| NET WEIGHT | 0.66 lb (0.3 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| STORAGE HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC/IC |
